| Item | Part No. | Part Name | Qty | Serial No. |

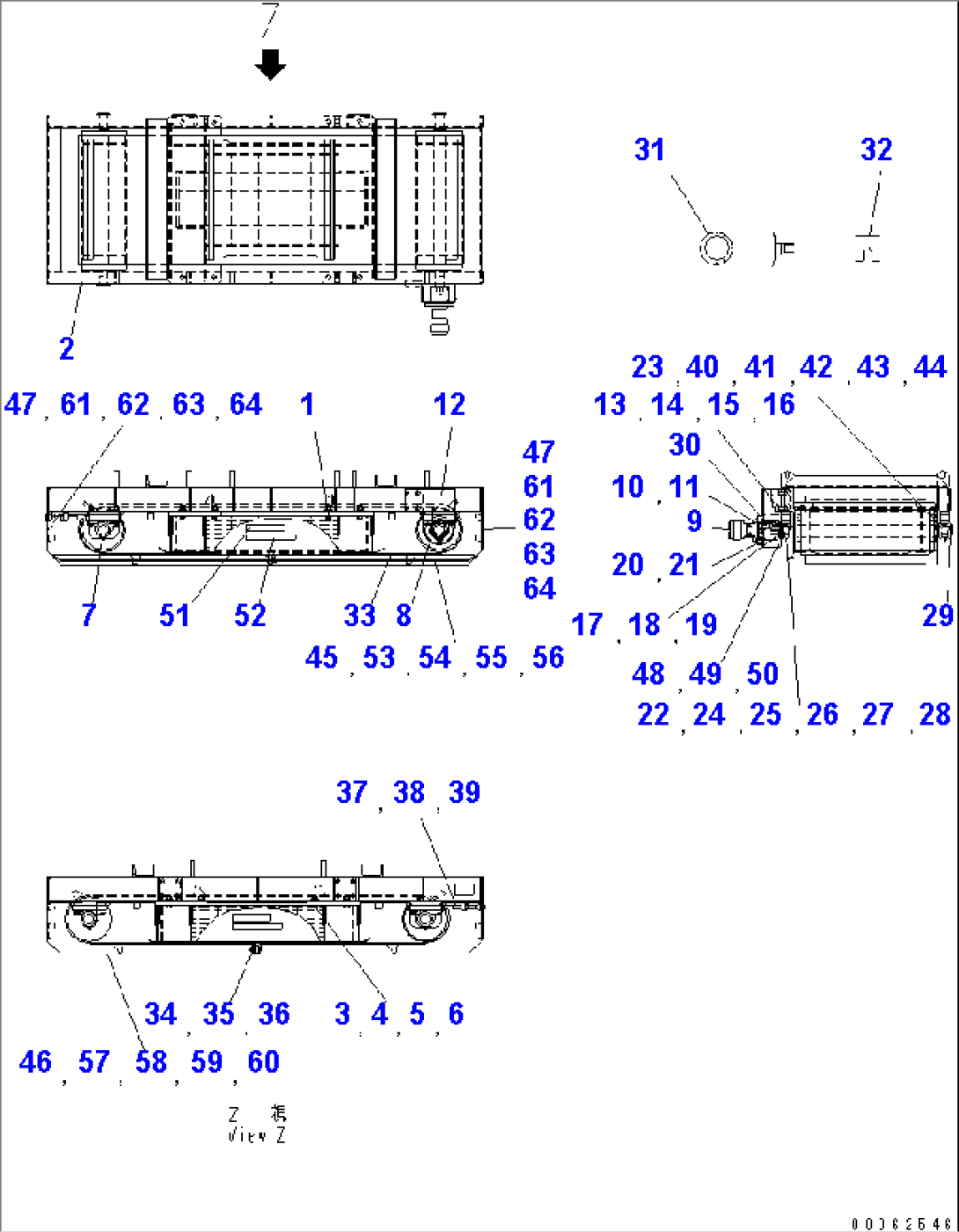

| 8240-78-1051 | MAGNET ASS'Y | 1001- | ||
| 1 | MFQ0000001 | CASE | 1001- | |
| 2 | MFQ0000011 | FRAME | 1001- | |
| 3 | MFQ0000041 | BOLT | 1001- | |
| 4 | MFQ0000051 | WASHER | 1001- | |
| 5 | MFQ0000061 | NUT | 1001- | |
| 6 | MFQ0000071 | WASHER | 1001- | |
| 7 | MFQ0000091 | PULLEY | 1001- | |
| 8 | MFQ0000141 | PULLEY,DRIVE | 1001- | |
| 9 | MFQ0000153 | MOTOR | 1001- | |
| 10 | MFQ0000801 | BOLT | 1001- | |
| 11 | MFQ0000802 | WASHER,SPRING | 1001- | |
| 12 | MFQ0000803 | BRACKET | 1001- | |
| 13 | MFQ0000804 | BOLT | 1001- | |
| 14 | MFQ0000805 | WASHER,SPRING | 1001- | |
| 15 | MFQ0000806 | WASHER | 1001- | |
| 16 | MFQ0000807 | NUT | 1001- | |
| 17 | MFQ0000808 | COUPLING | 1001- | |
| 18 | MFQ0000809 | KEY | 1001- | |
| 19 | MFQ0000810 | KEY | 1001- | |
| 20 | MFQ0000811 | BOLT | 1001- | |
| 21 | MFQ0000812 | WASHER,SPRING | 1001- | |
| 22 | MFQ0000291 | BEARING,(MOTOR SIDE) | 1001- | |
| 23 | MFQ0000301 | BEARING | 1001- | |
| 24 | MFQ0000311 | BOLT | 1001- | |
| 25 | MFQ0000321 | WASHER,SPRING | 1001- | |
| 26 | MFQ0000331 | WASHER | 1001- | |
| 27 | MFQ0000341 | WASHER | 1001- | |
| 28 | MFQ0000351 | NUT | 1001- | |
| 29 | MFQ0000361 | COVER | 1001- | |
| 30 | MFQ0000813 | PLATE | 1001- | |
| 31 | MFQ0000814 | HOLDER | 1001- | |
| 32 | MFQ0000815 | SHIM | 1001- | |
| 33 | MFQ0000401 | BELT | 1001- | |
| 34 | MFQ0000411 | PLATE | 1001- | |
| 35 | MFQ0000421 | BOLT | 1001- | |
| 36 | MFQ0000431 | NUT | 1001- | |
| 37 | MFQ0000441 | STUD | 1001- | |
| 38 | MFQ0000471 | NUT | 1001- | |
| 39 | MFQ0000231 | WASHER | 1001- | |
| 40 | MFQ0000311 | BOLT | 1001- | |
| 41 | MFQ0000321 | WASHER,SPRING | 1001- | |
| 42 | MFQ0000331 | WASHER | 1001- | |
| 43 | MFQ0000341 | WASHER | 1001- | |
| 44 | MFQ0000351 | NUT | 1001- | |
| 45 | MFQ0000501 | COVER | 1001- | |
| 46 | MFQ0000502 | COVER | 1001- | |
| 47 | MFQ0000503 | COVER | 1001- | |
| 48 | MFQ0000821 | COVER | 1001- | |
| 49 | MFQ0000831 | BOLT | 1001- | |
| 50 | MFQ0000621 | WASHER,SPRING | 1001- | |
| 51 | MFQ0000701 | PLATE, CAUTION | 1001- | |
| 52 | MFQ0000711 | PLATE, CAUTION | 1001- | |
| 53 | MFQ0000511 | BOLT | 1001- | |
| 54 | MFQ0000521 | NUT | 1001- | |
| 55 | MFQ0000531 | WASHER,SPRING | 1001- | |
| 56 | MFQ0000541 | WASHER | 1001- | |
| 57 | MFQ0000511 | BOLT | 1001- | |
| 58 | MFQ0000521 | NUT | 1001- | |
| 59 | MFQ0000531 | WASHER,SPRING | 1001- | |
| 60 | MFQ0000541 | WASHER | 1001- | |
| 61 | MFQ0000511 | BOLT | 1001- | |
| 62 | MFQ0000521 | NUT | 1001- | |
| 63 | MFQ0000531 | WASHER,SPRING | 1001- | |
| 64 | MFQ0000541 | WASHER | 1001- | |
| SERVICE KIT | ||||
| K1 | MFQ0000181 | SEAL KIT,FOR MOTOR | 1001- |
