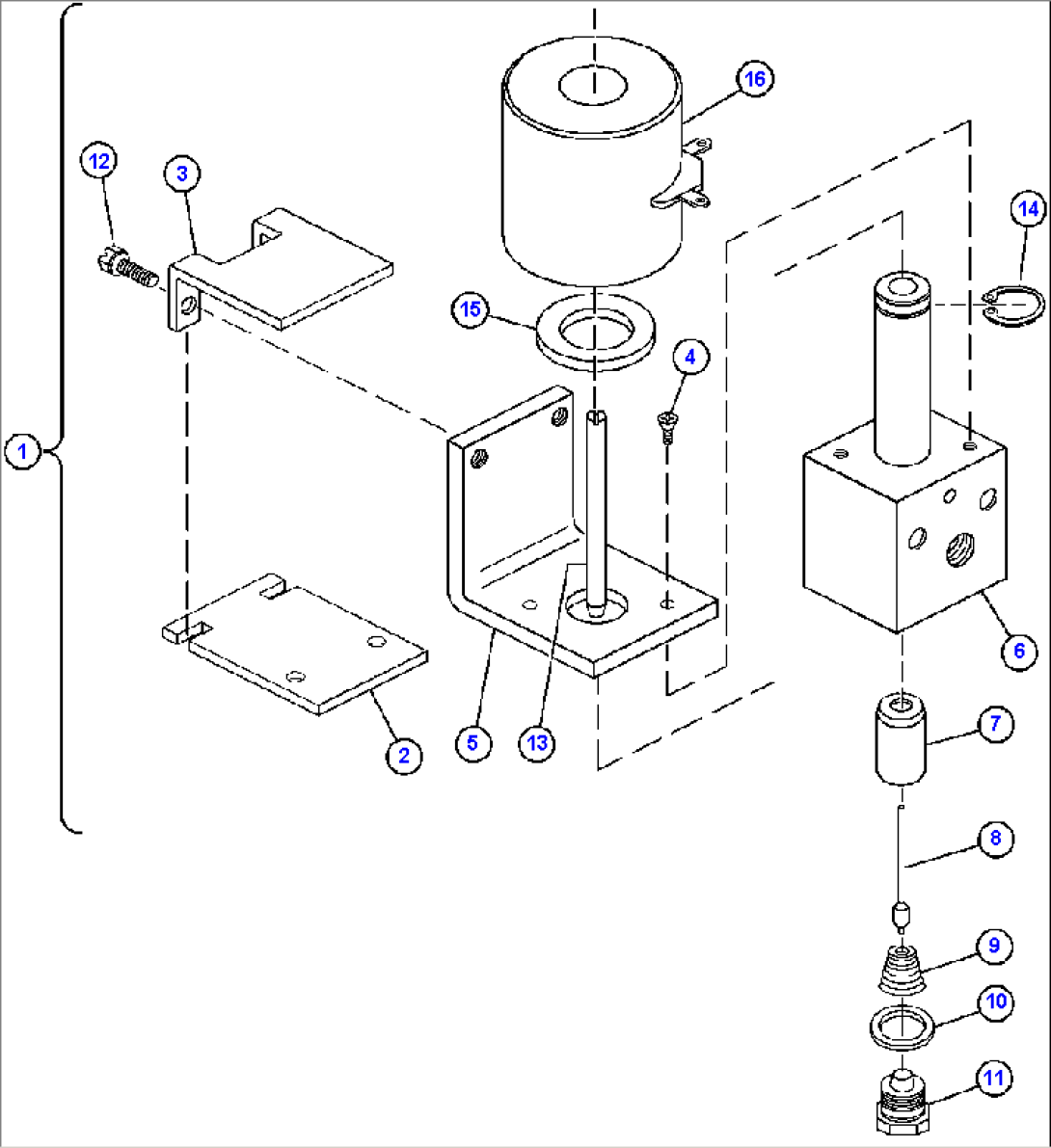

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | BF1398 | MAGNET, VALVE | ||
| 2 | VS8469 | ARMATURE | ||
| 3 | VS9186 | GUIDE | ||
| 4 | BF0726 | SCREW, FLAT HEAD - #10 - 32NF X 1/2" | ||
| 5 | VS8670 | FRAME, MAGNET | ||
| 6 | VP9535 | VALVE BODY | ||
| 7 | VS8472 | VALVE SEAT | ||
| 8 | VS8471 | VALVE | ||
| 9 | VS8468 | SPRING, COMPRESSION | ||
| 10 | VM0200 | GASKET | ||
| 11 | VS8473 | PLUG, BRASS | ||
| 12 | VJ9158 | SCREW - #10 - 32NF X 3/8" | ||
| 12 | H2643 | LOCKWASHER | ||
| 13 | VS8470 | VALVE STEM | ||
| 14 | VP9527 | RETAINING RING - 0.750" | ||
| 15 | VJ7866 | WASHER, RUBBER | ||
| 16 | VM0277 | COIL |
