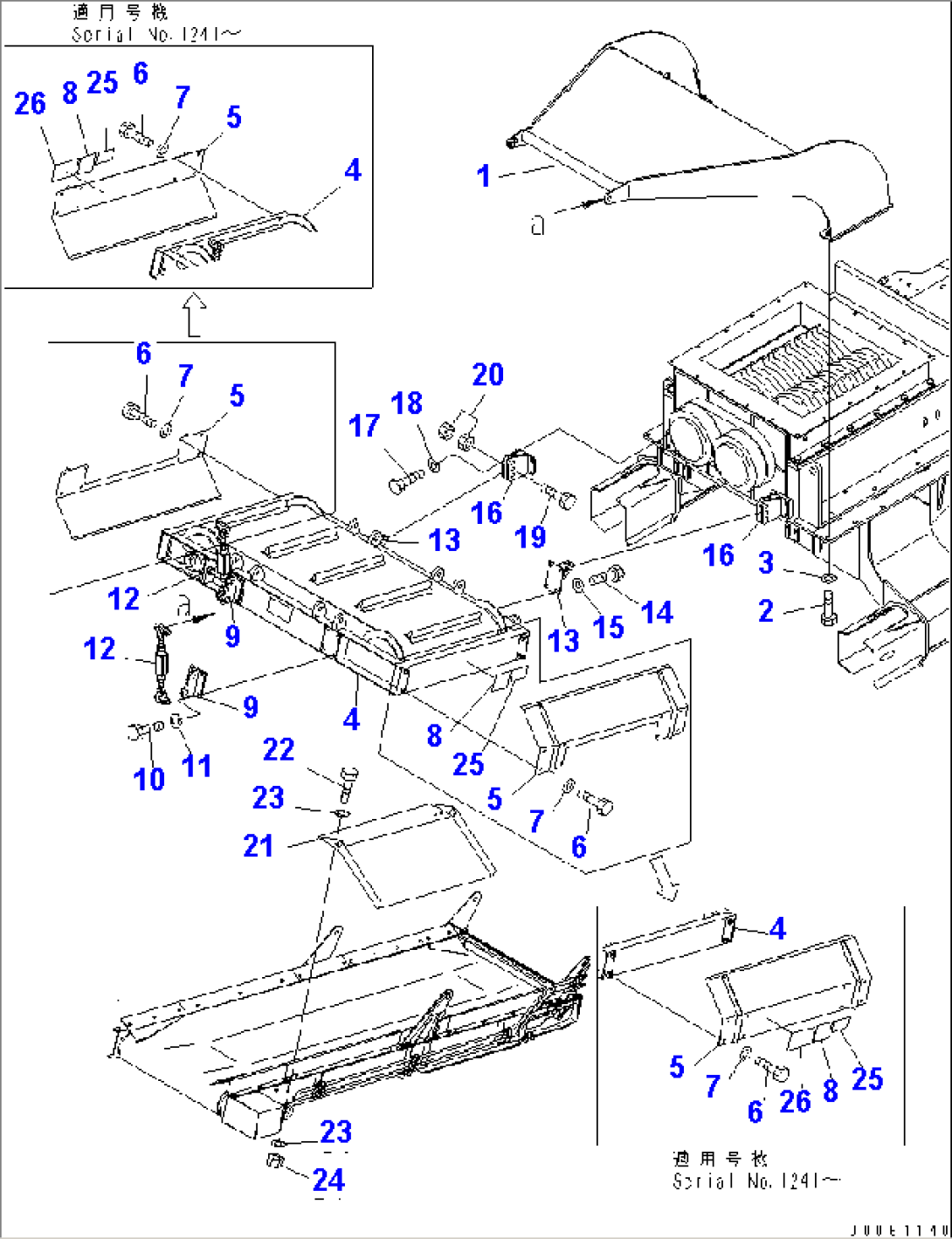

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8261-78-1112 | BRACKET | 1101- | |
| 2 | 01010-82065 | BOLT | 1101- | |
| 3 | 01643-32060 | WASHER | 1101- | |
| 4 | (8232-78-1208) | MAGNET ASS'Y | 1241- | |
| 4 | (\0\8232-78-1207) | MAGNET ASS'Y | 1230-1240 | |
| 4 | (8232-78-1206) | MAGNET ASS'Y | 1210-1229 | |
| 4 | (8232-78-1205) | MAGNET ASS'Y | .-1209 | |
| 5 | 8233-78-3131 | COVER | 1241- | |
| 5 | 8233-78-3130 | COVER | 1101-1240 | |
| 6 | 01010-81220 | BOLT | 1101- | |
| 7 | 01643-31232 | WASHER | 1101- | |
| 8 | 8248-93-1310 | PLATE | 1101- | |
| 9 | 8248-78-1260 | BRACKET | 1101- | |
| 10 | 01010-81650 | BOLT | 1101- | |
| 11 | 01643-31645 | WASHER | 1101- | |
| 12 | 8248-78-1400 | ROD ASS'Y | 1101- | |
| 13 | 8229-78-2021 | BRACKET | 1101- | |
| 14 | 01010-81650 | BOLT | 1101- | |
| 15 | 01643-31645 | WASHER | 1101- | |
| 16 | 8229-78-2031 | BRACKET | 1101- | |
| 17 | 01010-81635 | BOLT | 1101- | |
| 18 | 01643-31645 | WASHER | 1101- | |
| 19 | 01011-83005 | BOLT | 1207- | |
| 20 | 01580-13024 | NUT | 1207- | |
| 21 | 8229-78-2010 | CHUTE | 1101- | |
| 22 | 01010-81025 | BOLT | 1101- | |
| 23 | 01643-31032 | WASHER | 1101- | |
| 24 | 01580-11008 | NUT | 1101- | |
| 25 | 8242-93-2250 | PLATE | 1101- | |
| 26 | 09831-H2320 | PLATE, SAFETY | 1241- |
