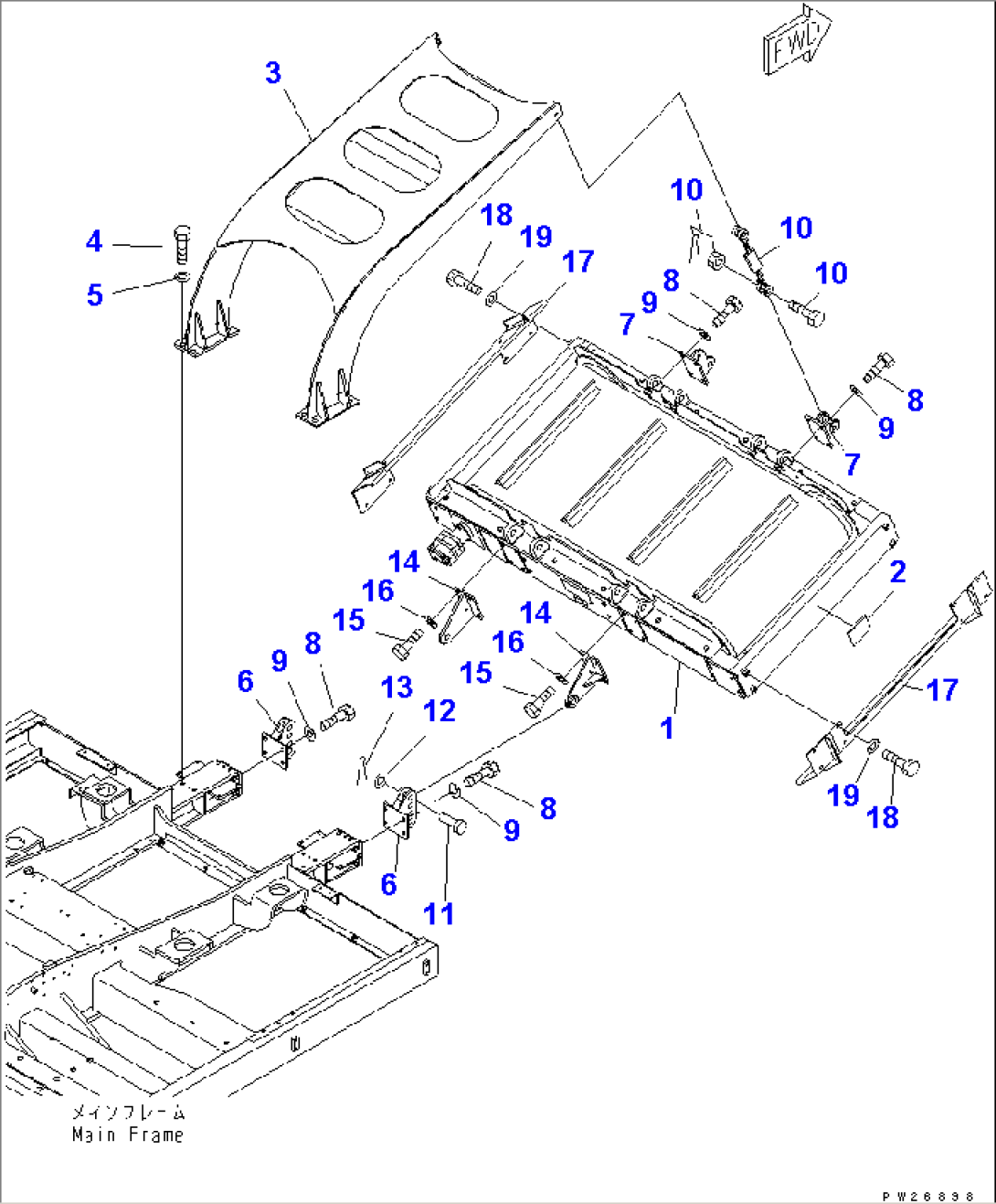

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8248-78-1202 | MAGNET ASS'Y | .- | |
| 1 | 8248-78-1201 | MAGNET | 1203-. | |
| 1 | 8248-78-1200 | MAGNET ASS'Y | 1002-1202 | |
| 2 | 8248-93-1310 | PLATE,(JAPANESE) | 1002- | |
| 2 | 8248-93-1620 | PLATE,(GERMAN) | 1002- | |
| 2 | 8248-93-1630 | PLATE,(ENGLISH) | 1002- | |
| 3 | 8248-78-1211 | PLATE | 1002- | |
| 4 | 01010-82050 | BOLT | 1002- | |
| 5 | 01643-32060 | WASHER | 1002- | |
| 6 | 8248-78-1250 | PLATE | 1002- | |
| 7 | 8248-78-1260 | BRACKET | 1002- | |
| 8 | 01010-81650 | BOLT | 1002- | |
| 9 | 01643-31645 | WASHER | 1002- | |
| 10 | 8248-78-1400 | ROD ASS'Y | 1002- | |
| 10 | 8248-78-1410 | JOINT | 1002- | |
| 10 | 8248-78-1420 | ROD | 1002- | |
| 10 | 8248-78-1430 | ROD | 1002- | |
| 10 | 8248-78-1440 | BOLT | 1002- | |
| 11 | 411-98-11121 | PIN | 1002- | |
| 12 | 01640-23045 | WASHER | 1002- | |
| 13 | 04050-15040 | PIN | 1002- | |
| 14 | 8248-78-1240 | BRACKET | 1002- | |
| 15 | 01010-81650 | BOLT | 1002- | |
| 16 | 01643-31645 | WASHER | 1002- | |
| 17 | 8233-78-3130 | COVER | 1002- | |
| 18 | 01010-81220 | BOLT | 1002- | |
| 19 | 01643-31232 | WASHER | 1002- |
