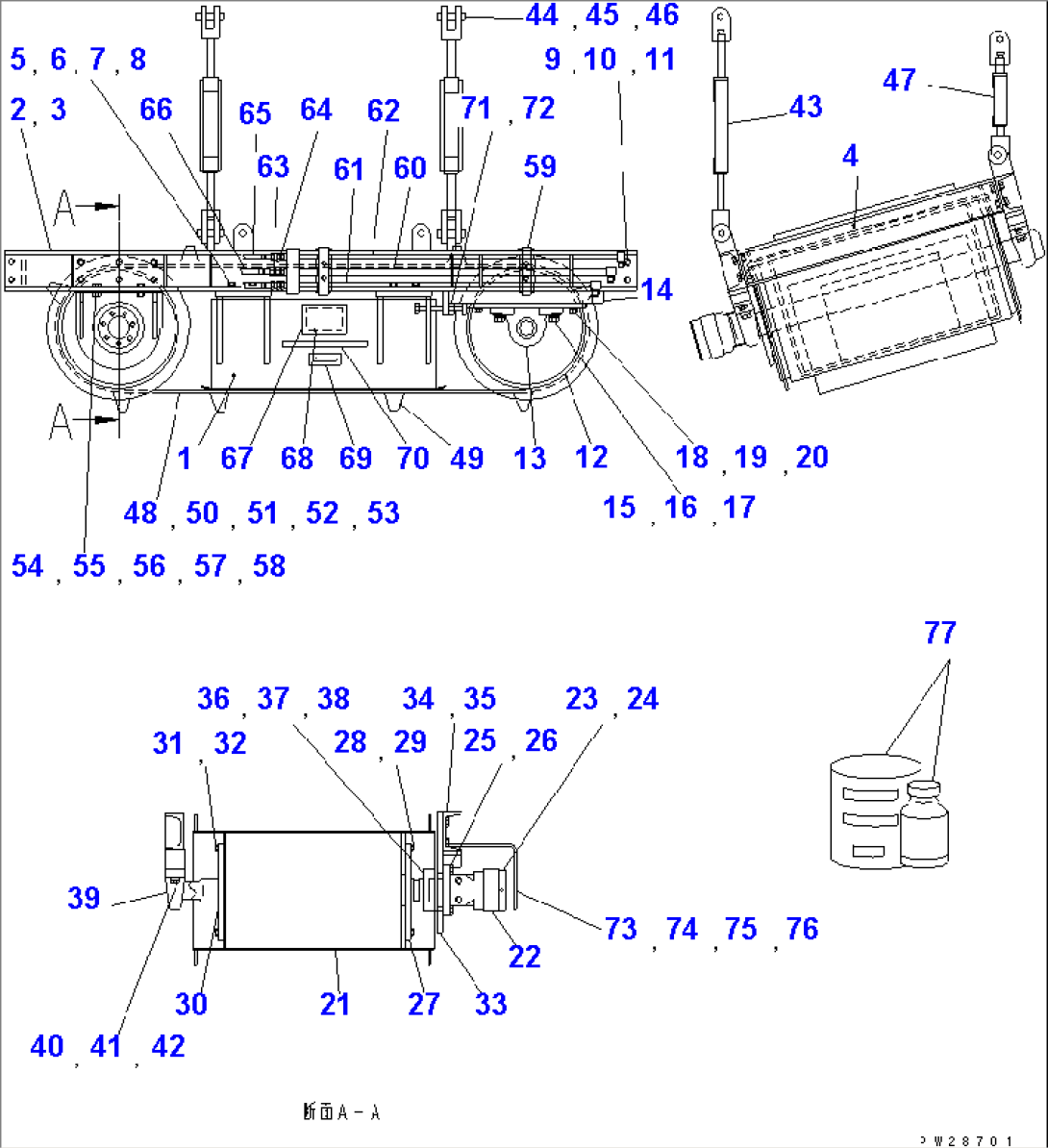

| Item | Part No. | Part Name | Qty | Serial No. |
| 8221-78-1104 | MAGNET | 1001- | ||
| 1 | MFG0000001 | CASE | 1001- | |
| 2 | MFG0000011 | FRAME | 1001- | |
| 3 | MFG0000021 | FRAME | 1001- | |
| 4 | MFG0000031 | FRAME | 1001- | |
| 5 | 01010-51645 | BOLT | 1001- | |
| 6 | 01602-21648 | WASHER,SPRING | 1001- | |
| 7 | 01580-11613 | NUT | 1001- | |
| 8 | MFG0000071 | WASHER | 1001- | |
| 9 | 01010-51225 | BOLT | 1001- | |
| 10 | 01580-01210 | NUT | 1001- | |
| 11 | 01602-21236 | WASHER,SPRING | 1001- | |
| 12 | MFG0000111 | PULLEY | 1001- | |
| 13 | MFG0000121 | BEARING UNIT | 1001- | |
| 14 | MFG0000131 | PLATE | 1001- | |
| 15 | 01010-51640 | BOLT | 1001- | |
| 16 | 01602-21648 | WASHER,SPRING | 1001- | |
| 17 | 01643-31645 | WASHER | 1001- | |
| 18 | 01010-51640 | BOLT | 1001- | |
| 19 | 01602-21648 | WASHER,SPRING | 1001- | |
| 20 | 01643-51645 | WASHER | 1001- | |
| 21 | MFG0000201 | PULLEY | 1001- | |
| 22 | MFG0000211 | MOTOR | 1001- | |
| 23 | MFG0000691 | CAP,END | 1001- | |
| 24 | MFG0000701 | O-RING | 1001- | |
| 25 | 01010-51230 | BOLT | 1001- | |
| 26 | 01602-21236 | WASHER,SPRING | 1001- | |
| 27 | MFG0000241 | SHAFT | 1001- | |
| 28 | 01010-51025 | BOLT | 1001- | |
| 29 | 01602-21030 | WASHER,SPRING | 1001- | |
| 30 | MFG0000271 | SHAFT | 1001- | |
| 31 | 01010-51025 | BOLT | 1001- | |
| 32 | 01602-21030 | WASHER,SPRING | 1001- | |
| 33 | MFG0000301 | BASE | 1001- | |
| 34 | 01010-51225 | BOLT | 1001- | |
| 35 | 01602-21230 | WASHER,SPRING | 1001- | |
| 36 | MFG0000331 | BEARING UNIT | 1001- | |
| 37 | 01010-51635 | BOLT | 1001- | |
| 38 | 01602-21648 | WASHER,SPRING | 1001- | |
| 39 | MFG0000361 | BEARING UNIT | 1001- | |
| 40 | 01010-51645 | BOLT | 1001- | |
| 41 | 01602-21648 | WASHER,SPRING | 1001- | |
| 42 | 01643-31645 | WASHER | 1001- | |
| 43 | MFG0000401 | BAFFLE | 1001- | |
| 44 | MFG0000411 | PIN | 1001- | |
| 45 | 01643-32060 | WASHER | 1001- | |
| 46 | MFG0000431 | PIN | 1001- | |
| 47 | MFG0000441 | BAFFLE,TURN | 1001- | |
| 48 | MFG0000451 | BELT | 1001- | |
| 49 | MFG0000711 | SCRAPER | 1001- | |
| 50 | MFG0000461 | PLATE | 1001- | |
| 51 | 01010-51245 | BOLT | 1001- | |
| 52 | 01580-01210 | NUT | 1001- | |
| 53 | 01602-21236 | WASHER,SPRING | 1001- | |
| 54 | 01010-51235 | BOLT | 1001- | |
| 55 | 01602-21236 | WASHER,SPRING | 1001- | |
| 56 | 01643-51232 | WASHER | 1001- | |
| 57 | MFG0000531 | WASHER | 1001- | |
| 58 | 01580-01210 | NUT | 1001- | |
| 59 | MFG0000591 | CLAMP | 1001- | |
| 60 | MFG0000621 | PIPE | 1001- | |
| 61 | MFG0000631 | PIPE | 1001- | |
| 62 | MFG0000641 | PIPE | 1001- | |
| 63 | MFG0000651 | CONNECTOR | 1001- | |
| 64 | MFG0000661 | CONNECTOR | 1001- | |
| 65 | MFG0000671 | HOSE | 1001- | |
| 66 | MFG0000681 | HOSE | 1001- | |
| 67 | MFG0000721 | PLATE | 1001- | |
| 68 | MFG0000731 | PLATE | 1001- | |
| 69 | MFG0000741 | PLATE | 1001- | |
| 70 | MFG0000751 | PLATE | 1001- | |
| 71 | 01011-51620 | BOLT | 1001- | |
| 72 | 01580-01613 | NUT | 1001- | |
| 73 | MFG0000781 | COVER | 1001- | |
| 74 | 01010-51235 | BOLT | 1001- | |
| 75 | 01580-01210 | NUT | 1001- | |
| 76 | MFG0000811 | WASHER,SPRING | 1001- | |
| 77 | 8221-99-9172 | BOND (2 PIECE) | 1001- |
