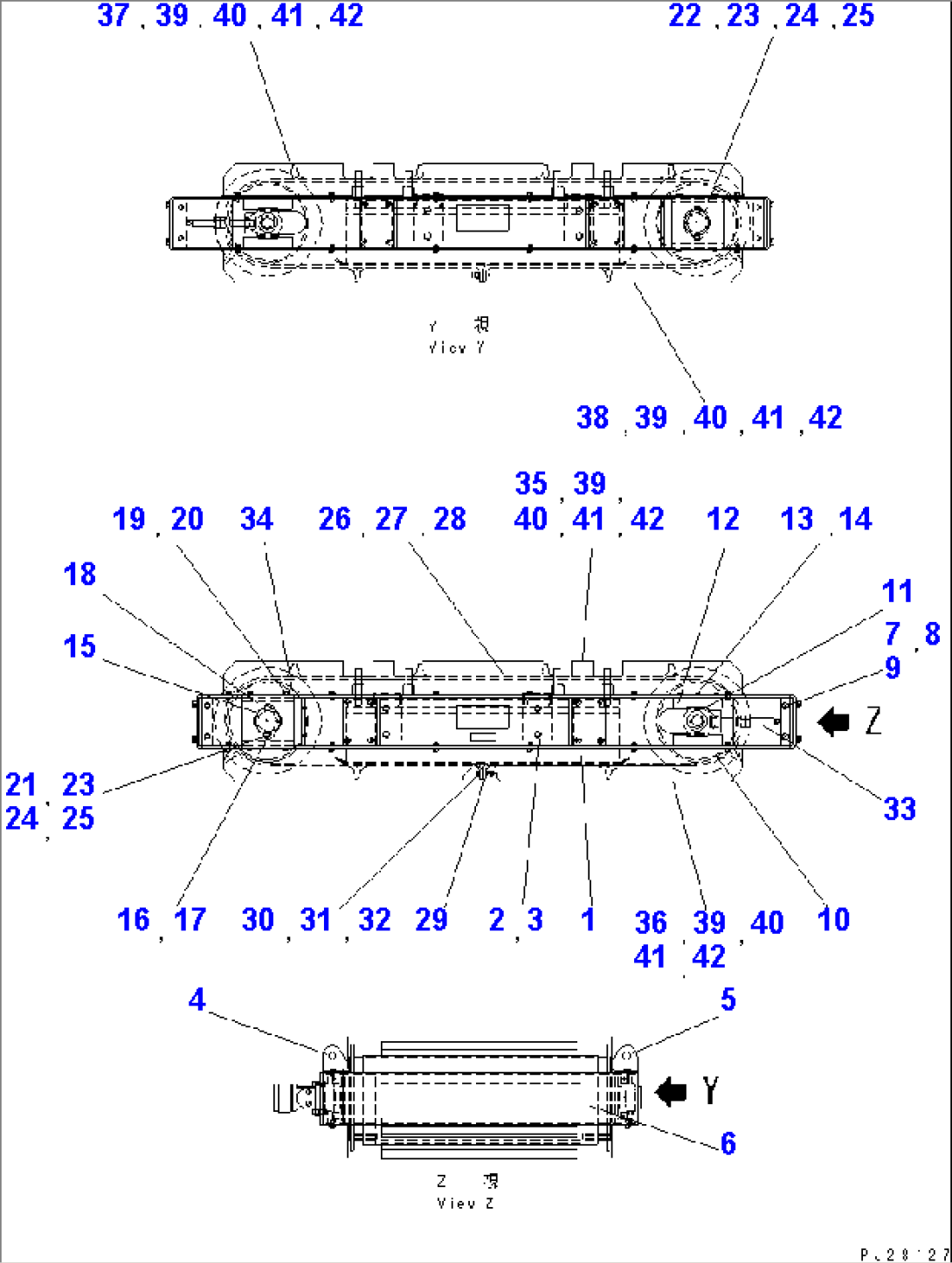

| Item | Part No. | Part Name | Qty | Serial No. |
| 8232-78-1206 | MAGNET ASS'Y | 1101- | ||
| 1 | MFK0000003 | CASE,MAGNET | 1101- | |
| 2 | MFK0000012 | BOLT | 1101- | |
| 3 | MFK0000021 | WASHER,SPRING | 1101- | |
| 4 | MFK0000032 | FRAME | 1101- | |
| 5 | MFK0000042 | FRAME | 1101- | |
| 6 | MFK0000052 | FRAME | 1101- | |
| 7 | MFK0000061 | BOLT | 1101- | |
| 8 | MFK0000071 | NUT | 1101- | |
| 9 | MFK0000081 | WASHER | 1101- | |
| 10 | MFK0000091 | PULLEY | 1101- | |
| 11 | MFK0000101 | BEARING | 1101- | |
| 12 | MFK0000111 | GUIDE | 1101- | |
| 13 | MFK0000121 | BOLT | 1101- | |
| 14 | MFK0000131 | WASHER,SPRING | 1101- | |
| 15 | MFK0000152 | MOTOR | 1101- | |
| 16 | MFK0000162 | BOLT | 1101- | |
| 17 | MFK0000181 | WASHER | 1101- | |
| 18 | MFK0000191 | BRACKET | 1101- | |
| 19 | MFK0000202 | BOLT | 1101- | |
| 20 | MFK0000211 | WASHER,SPRING | 1101- | |
| 21 | MFK0000291 | BEARING UNIT | 1101- | |
| 22 | MFK0000301 | BEARING UNIT | 1101- | |
| 23 | MFK0000311 | BOLT | 1101- | |
| 24 | MFK0000321 | WASHER,SPRING | 1101- | |
| 25 | MFK0000331 | WASHER | 1101- | |
| 26 | MFK0000401 | BELT | 1101- | |
| 27 | MFK0000411 | PLATE,RUBBER | 1101- | |
| 28 | MFK0000412 | SCRAPER,RUBBER | 1101- | |
| 29 | MFK0000421 | BAR | 1101- | |
| 30 | MFK0000431 | BOLT | 1101- | |
| 31 | MFK0000441 | BOLT | 1101- | |
| 32 | MFK0000451 | NUT,SPRING | 1101- | |
| 33 | MFK0000462 | BOLT | 1101- | |
| 34 | MFK0000511 | PULLEY | 1101- | |
| 35 | MFK0000600 | GUARD,UPPER | 1101- | |
| 36 | MFK0000610 | GUARD,LOWER | 1101- | |
| 37 | MFK0000620 | GUARD,UPPER | 1101- | |
| 38 | MFK0000630 | GUARD,LOWER | 1101- | |
| 39 | MFK0000640 | BOLT | 1101- | |
| 40 | MFK0000650 | NUT | 1101- | |
| 41 | MFK0000660 | WASHER | 1101- | |
| 42 | MFK0000670 | WASHER,SPRING | 1101- |
