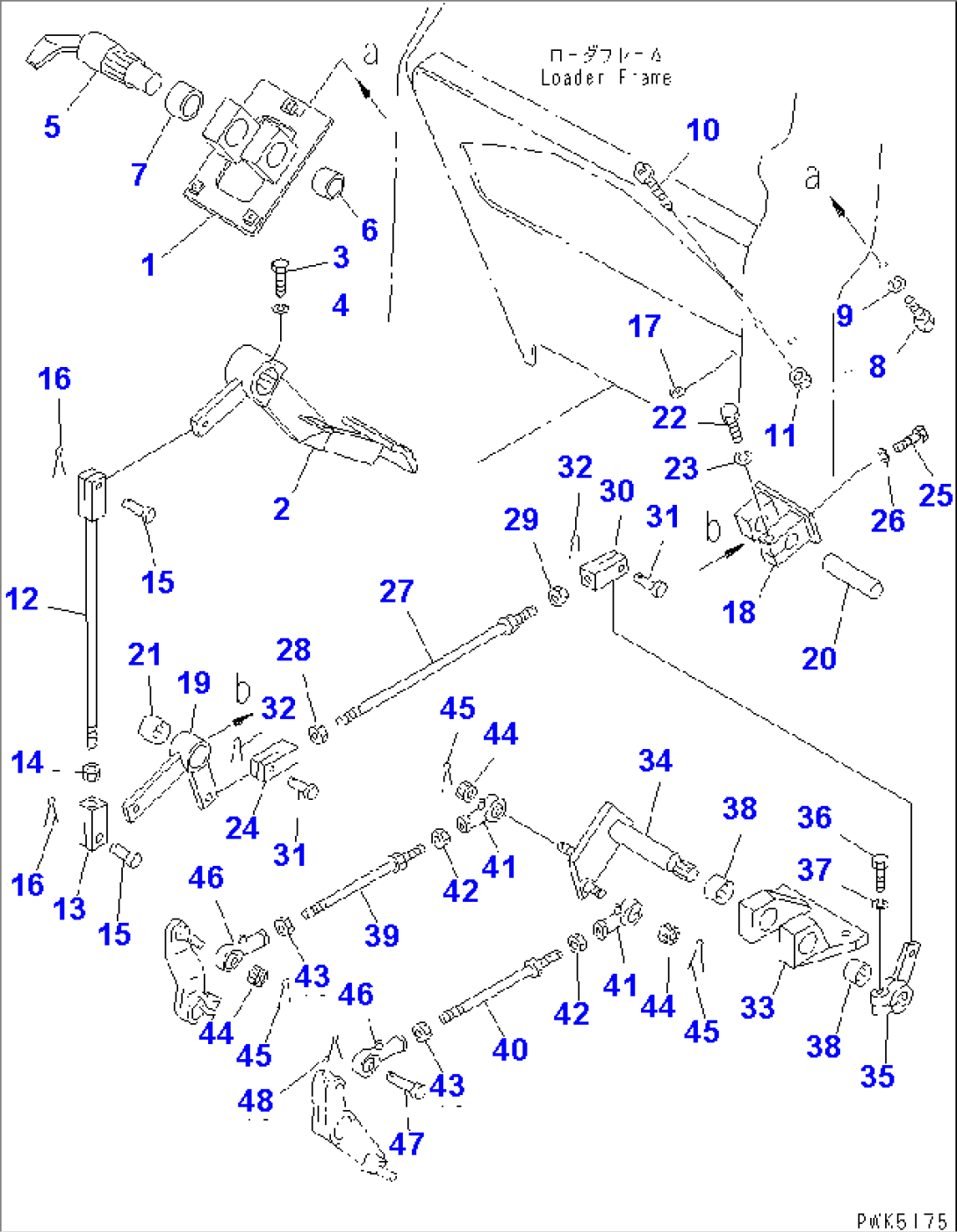

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 102-43-53110 | BRACKET | 78604- | |
| 2 | 102-43-53210 | PEDAL,CLUTCH | 78604- | |
| 3 | 01010-81030 | BOLT | 78604- | |
| 4 | 01602-21030 | WASHER,SPRING | 78604- | |
| 5 | 102-43-53130 | LEVER | 78604- | |
| 6 | 195-61-34140 | BEARING | 78604- | |
| 7 | 195-61-34150 | BEARING | 78604- | |
| 8 | 01010-81030 | BOLT | 78604- | |
| 9 | 01602-21030 | WASHER,SPRING | 78604- | |
| 10 | 113-43-21340 | BUMPER | 78604- | |
| 11 | 01580-11008 | NUT | 78604- | |
| 12 | 04244-41032 | ROD | 78604- | |
| 13 | 04210-21040 | YOKE | 78604- | |
| 14 | 01582-11008 | NUT | 78604- | |
| 15 | 04205-11028 | PIN | 78604- | |
| 16 | 04050-13020 | PIN,COTTER | 78604- | |
| 17 | 07049-01012 | PLUG | 78604- | |
| 18 | 102-43-43240 | BRACKET | 78604- | |
| 19 | 102-43-43290 | LEVER | 78604- | |
| 20 | 102-43-53250 | SHAFT | 78604- | |
| 21 | 195-61-34130 | BEARING | 78604- | |
| 22 | 01010-81035 | BOLT | 78604- | |
| 23 | 01602-21030 | WASHER,SPRING | 78604- | |
| 24 | 04220-21040 | YOKE,L.H. THREAD | 78604- | |
| 25 | 01010-81025 | BOLT | 78604- | |
| 26 | 01602-21030 | WASHER,SPRING | 78604- | |
| 27 | 04248-31029 | ROD | 78604- | |
| 28 | 01508-41006 | NUT,L.H. THREAD | 78604- | |
| 29 | 01582-11008 | NUT | 78604- | |
| 30 | 04210-21040 | YOKE | 78604- | |
| 31 | 04205-11028 | PIN | 78604- | |
| 32 | 04050-13020 | PIN,COTTER | 78604- | |
| 33 | 102-43-53510 | BRACKET | 78604- | |
| 34 | 102-43-53520 | LEVER | 78604- | |
| 35 | 102-43-43270 | LEVER | 78604- | |
| 36 | 01010-80830 | BOLT | 78604- | |
| 37 | 01602-20825 | WASHER,SPRING | 78604- | |
| 38 | 195-61-34130 | BEARING | 78604- | |
| 39 | 04248-31017 | ROD | 78604- | |
| 40 | 04248-31018 | ROD | 78604- | |
| 41 | 04250-41056 | END,ROD | 78604- | |
| 42 | 01582-11008 | NUT | 78604- | |
| 43 | 01508-41006 | NUT,L.H. THREAD | 78604- | |
| 44 | 01593-11008 | NUT | 78604- | |
| 45 | 04050-12018 | PIN,COTTER | 78604- | |
| 46 | 04250-61056 | END,ROD, L.H. THREAD | 78604- | |
| 47 | 04205-11032 | PIN | 78604- | |
| 48 | 04050-13015 | PIN,COTTER | 78604- |
