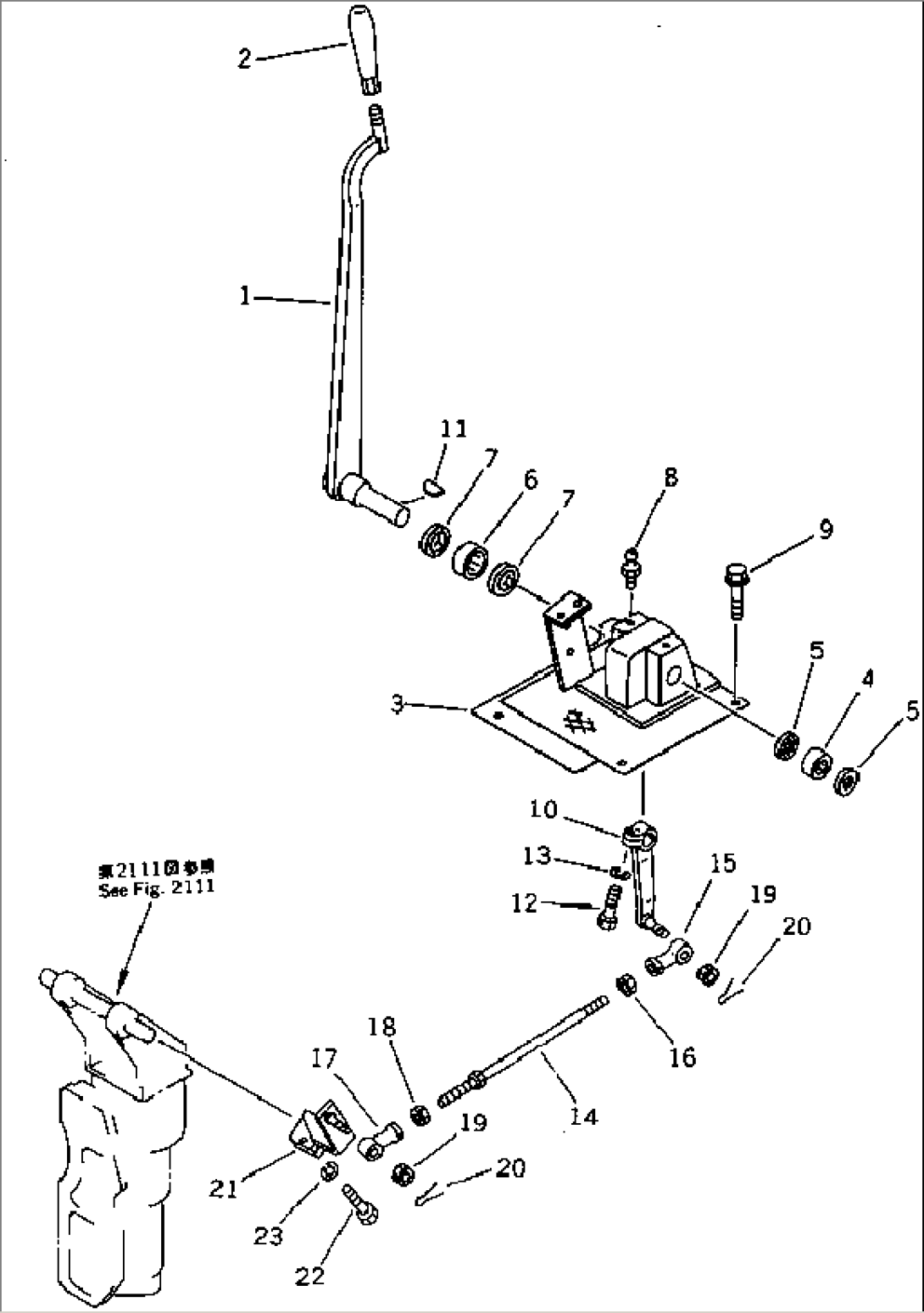

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 120-43-33561 | LEVER | 1001- | |
| 2 | 09305-11400 | KNOB | 1001- | |
| 3 | KZ10-01-5371 | FLOOR,(MODIFIED PARTS) | 1001- | |
| KZ10-01-6641 | BRACKET (WELDED) | 1001- | ||
| 4 | 06120-02520 | BEARING,NEEDLE | 1001- | |
| 5 | 06122-02504 | SEAL,BEARING | 1001- | |
| 6 | 06120-03520 | BEARING,NEEDLE | 1001- | |
| 7 | 06122-03504 | SEAL,BEARING | 1001- | |
| 8 | 07020-00000 | FITTING,GREASE | 1001- | |
| 9 | 01439-01220 | BOLT | 1001- | |
| 10 | 144-43-18411 | LEVER | 1001- | |
| 11 | 04010-00732 | KEY | 1001- | |
| 12 | 01010-51245 | BOLT | 1001- | |
| 13 | 01602-21236 | WASHER,SPRING | 1001- | |
| 14 | 04248-31233 | ROD | 1001- | |
| 15 | 04250-61265 | END,RODä L.H. THREAD | 1001- | |
| 16 | 01508-41207 | NUT,L.H. THREAD | 1001- | |
| 17 | 04250-41265 | END,ROD | 1001- | |
| 18 | 01582-11210 | NUT | 1001- | |
| 19 | 01593-11210 | NUT | 1001- | |
| 20 | 04050-13020 | PIN,COTTER | 1001- | |
| 21 | 144-43-18420 | LEVER | 1001- | |
| 22 | 01010-50830 | BOLT | 1001- | |
| 23 | 01602-20825 | WASHER,SPRING | 1001- |
