| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 21U-62-24110 | ELBOW | 10001- | |
| 2 | 21A-62-12360 | NIPPLE | 10001- | |
| 3 | 20C-62-32960 | NIPPLE | 10001- | |
| 4 | 07002-11423 | O-RING | 10001- | |
| 5 | 22K-62-12461 | HOSE | 11417- | |
| 5 | 22K-62-12460 | HOSE | 10001-11416 |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc20mrx 1 s/n 10001 up (kue spec.)
- Operator's compartment and control system
- Main control (main control valve connecting parts¤ 2/2)
Поиск по каталогу

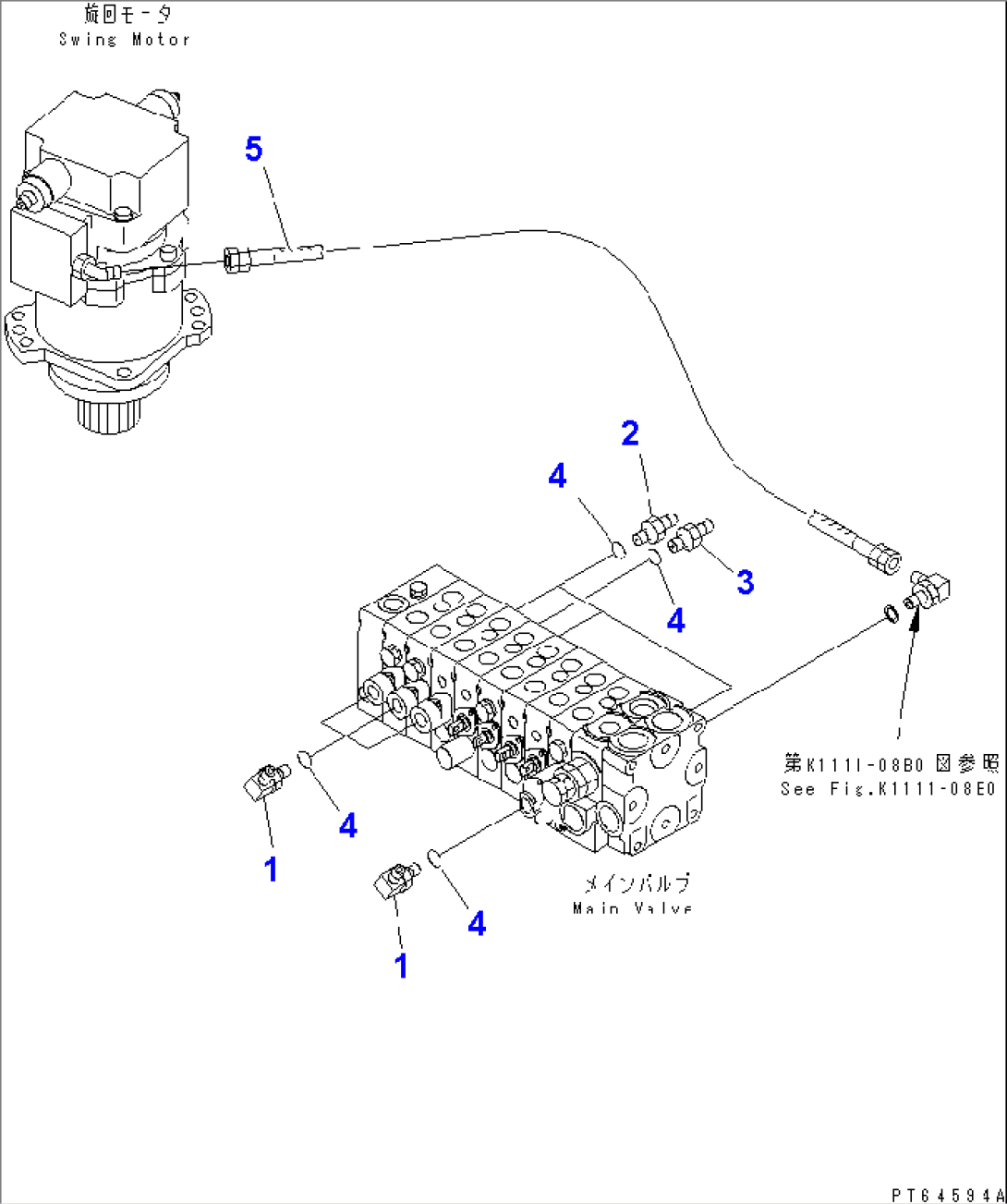

MAIN CONTROL (MAIN CONTROL VALVE CONNECTING PARTS¤ 2/2)
