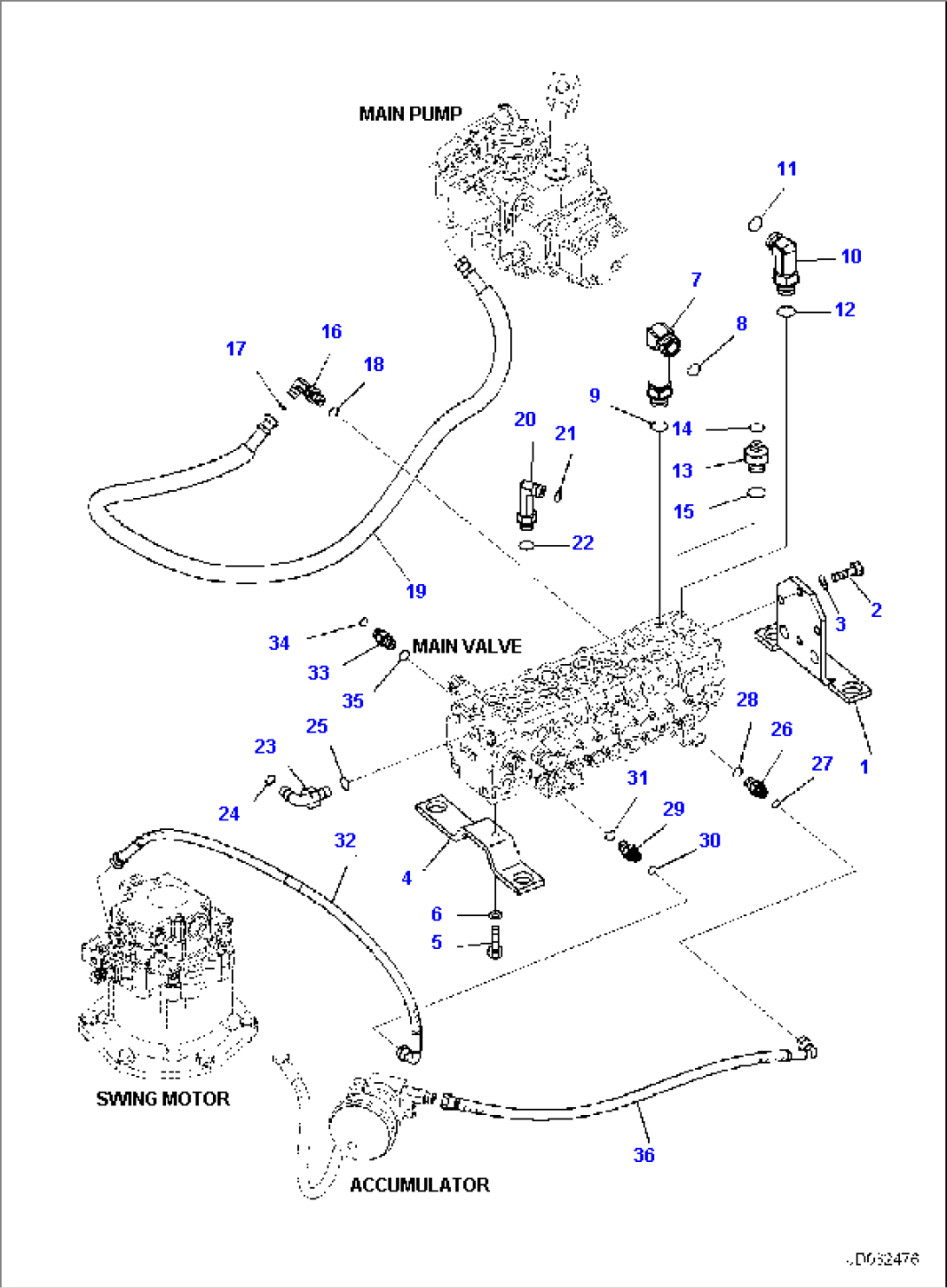

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22L-60-21221 | BRACKET | F30001- | |
| 2 | 01010-81030 | BOLT | F30001- | |
| 3 | 01643-31032 | WASHER | F30001- | |
| 4 | 22L-60-21231 | BRACKET | F30001- | |
| 5 | 01010-80820 | BOLT | F30001- | |
| 6 | 01643-30823 | WASHER | F30001- | |
| 7 | 22L-62-R2531 | ELBOW | F30001- | |
| 8 | 02896-11018 | O-RING | F30001- | |
| 9 | 07002-12434 | O-RING | F30001- | |
| 10 | 22L-09-R1280 | ELBOW | F30001- | |
| 11 | 07002-12434 | O-RING | F30001- | |
| 12 | 02896-11015 | O-RING | F30001- | |
| 13 | 8255-62-R330 | UNION | F30001- | |
| 14 | 07002-12434 | O-RING | F30001- | |
| 15 | 02896-11009 | O-RING | F30001- | |
| 16 | 20U-62-R1880 | ELBOW | F30001- | |
| 17 | 02896-11008 | O-RING | F30001- | |
| 18 | 07002-11423 | O-RING | F30001- | |
| 19 | 22L-62-39330 | HOSE | F30001- | |
| 20 | 22L-09-R1220 | ELBOW | F30001- | |
| 21 | 02896-11009 | O-RING | F30001- | |
| 22 | 07002-11823 | O-RING | F30001- | |
| 23 | 22L-09-R1160 | ELBOW | F30001- | |
| 24 | 02896-11008 | O-RING | F30001- | |
| 25 | 07002-11423 | O-RING | F30001- | |
| 26 | 22L-09-R1110 | UNION | F30001- | |
| 27 | 02896-11008 | O-RING | F30001- | |
| 28 | 07002-11423 | O-RING | F30001- | |
| 29 | 22L-62-R2590 | NIPPLE | F30001- | |
| 30 | 02896-11008 | O-RING | F30001- | |
| 31 | 07002-11423 | O-RING | F30001- | |
| 32 | 22L-62-22863 | HOSE | F30001- | |
| 33 | 22L-09-R1110 | UNION | F30001- | |
| 34 | 02896-11008 | O-RING | F30001- | |
| 35 | 07002-11423 | O-RING | F30001- | |
| 36 | 02761-00205 | HOSE | F30001- |
