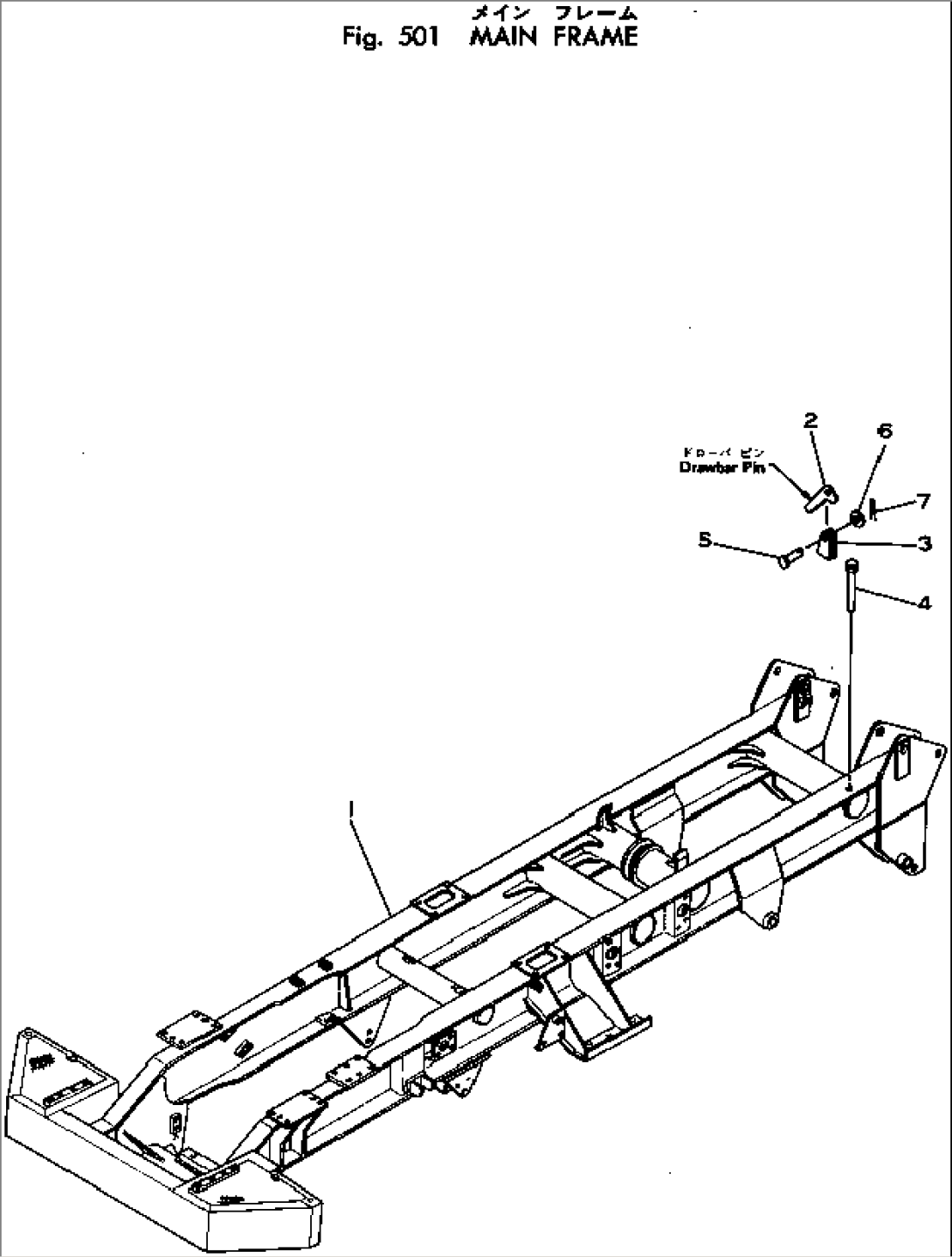

| Item | Part No. | Part Name | Qty | Serial No. |
| 567-46-10003 | FRAME ASS'Y | 1215- | ||
| 567-46-10002 | FRAME ASS'Y | 1101-1214 | ||
| 567-46-10001 | FRAME ASS'Y | 1002-1100 | ||
| 1 | 567-46-10103 | FRAME SUB ASS'Y | 1215- | |
| 1 | 567-46-10102 | FRAME SUB ASS'Y | 1101-1214 | |
| 1 | 567-46-10101 | FRAME SUB ASS'Y | 1002-1100 | |
| 2 | 566-46-12190 | HOOK | .- | |
| 2 | \0\364-46-11450 | LATCH | 1002-. | |
| 3 | 565-46-11290 | HOLDER | .- | |
| 3 | \0\364-46-11460 | BRACKET | 1002-. | |
| 4 | 560-46-10721 | PIN | 1002- | |
| 5 | 04205-00828 | PIN | 1002- | |
| 6 | 01641-20812 | WASHER | 1002- | |
| 7 | 04050-02012 | PIN | 1002- |
