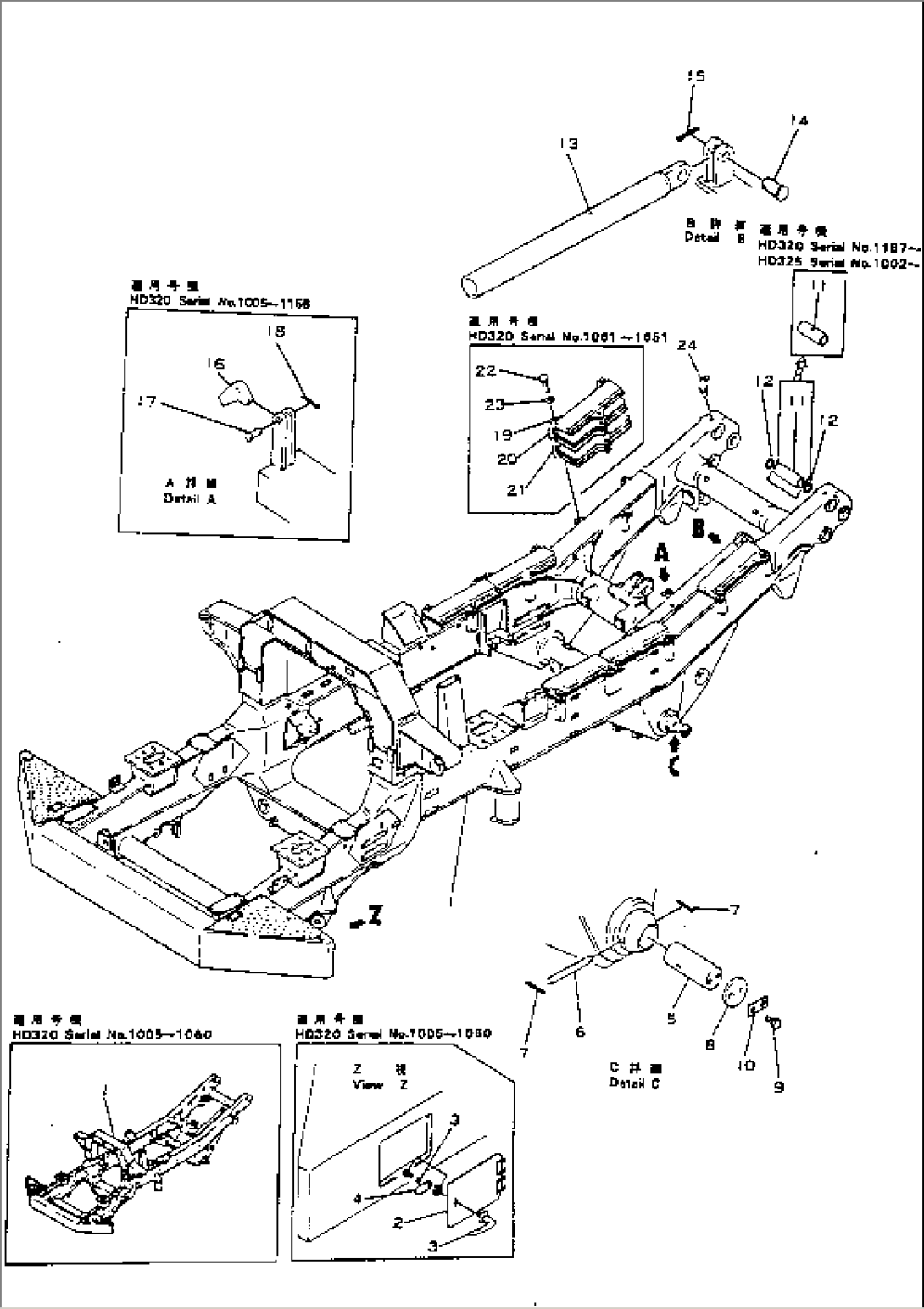

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-46-11105 | FRAME ASS'Y | 2001- | |
| 1 | 566-46-11104 | FRAME ASS'Y | 1410-2000 | |
| 1 | 566-46-11103 | FRAME ASS'Y | 1157-1409 | |
| 1 | 566-46-11102 | FRAME ASS'Y | 1007-1156 | |
| 1 | 566-46-11101 | FRAME ASS'Y | 1005-1006 | |
| 2 | 566-46-11431 | COVER | 1005-1006 | |
| 3 | 566-46-11441 | HANDLE | 1005-1006 | |
| 4 | 566-46-11661 | LEVER | 1005-1006 | |
| 5 | 566-46-11910 | PIN | 1005- | |
| 6 | 566-46-12180 | PIN | 1005- | |
| 6 | \0\364-46-11420 | PIN | 1005-1006 | |
| 7 | 04050-13022 | PIN | 2001- | |
| 7 | \0\04050-03022 | PIN | 1005-2000 | |
| 8 | 04080-06012 | HOLDER | 1005- | |
| 9 | 01010-51230 | BOLT | 1005- | |
| 10 | 04081-06012 | LOCK | 1005- | |
| 11 | 566-46-11581 | BUSHING | 1157- | |
| 11 | 566-46-11580 | BUSHING | 1005-1156 | |
| 12 | 07145-00060 | SEAL | 1005- | |
| 13 | 566-46-12131 | ROD | 1121- | |
| 13 | 566-46-12130 | ROD | 1005-1120 | |
| 14 | 566-46-12120 | PIN | 1005- | |
| 15 | 04050-15060 | PIN | 2001- | |
| 15 | \0\04050-05060 | PIN | 1005-2000 | |
| 16 | 566-46-12190 | HOOK | 1005-1156 | |
| 16 | \0\364-46-11450 | LATCH | 1005-1156 | |
| 17 | 04205-00828 | PIN | 1005-1156 | |
| 18 | 04050-12012 | PIN | 1005-1156 | |
| 18 | \0\04050-02012 | PIN | 1005-1156 | |
| 19 | 566-46-12610 | PLATE | 1061-1651 | |
| 20 | 566-46-12620 | SHIM, 3.2MM | 1061-1651 | |
| 21 | 566-46-12630 | SHIM, 1.0MM | 1061-1651 | |
| 22 | 01010-51650 | BOLT | 1061-1651 | |
| 23 | 01602-11648 | WASHER | 1061-1651 | |
| 24 | 07020-00900 | FITTING | 1157- |
