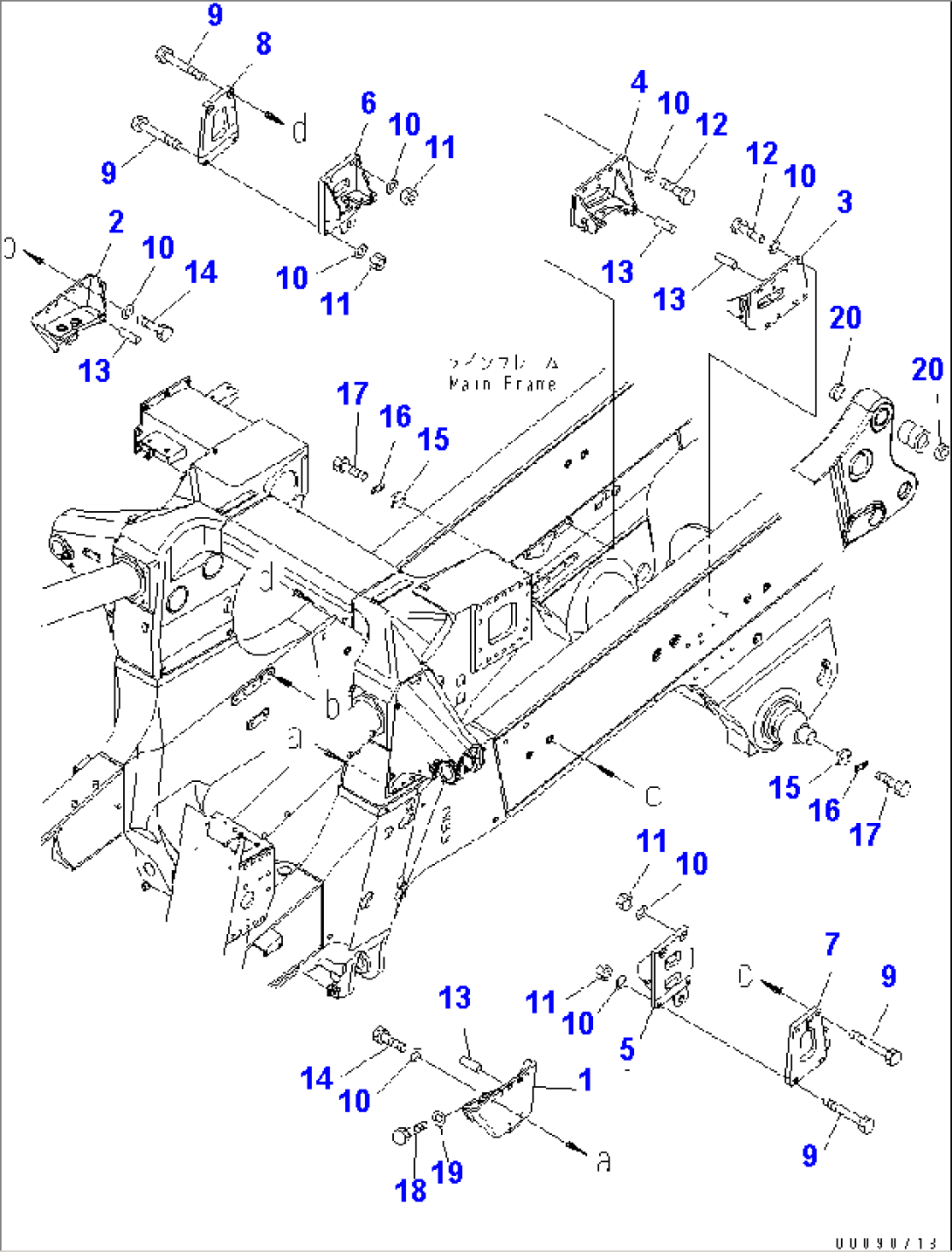

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-46-82412 | BRACKET | 7749- | |
| 2 | 561-46-82490 | BRACKET | 7749- | |
| 3 | 561-46-82552 | BRACKET | 7749- | |
| 4 | 561-46-82561 | BRACKET | 7749- | |
| 5 | 561-46-82512 | BRACKET | 7749- | |
| 6 | 561-46-82522 | BRACKET | 7749- | |
| 7 | 561-46-82542 | BRACKET | 7749- | |
| 8 | 561-46-82532 | BRACKET | 7749- | |
| 9 | 561-46-62570 | BOLT | 7749- | |
| 10 | 01643-32060 | WASHER | 7749- | |
| 11 | 01580-12016 | NUT | 7749- | |
| 12 | 01010-82055 | BOLT | 7749- | |
| 13 | 04020-01842 | PIN | 7749- | |
| 14 | 01010-82050 | BOLT | 7749- | |
| 15 | 04080-08018 | HOLDER | 7749- | |
| 16 | 04081-08016 | LOCK | 7749- | |
| 17 | 01010-81640 | BOLT | 7749- | |
| 18 | 01010-81016 | BOLT | 7749- | |
| 19 | 01643-31032 | WASHER | 7749- | |
| 20 | 07145-00090 | SEAL | 7749- |
