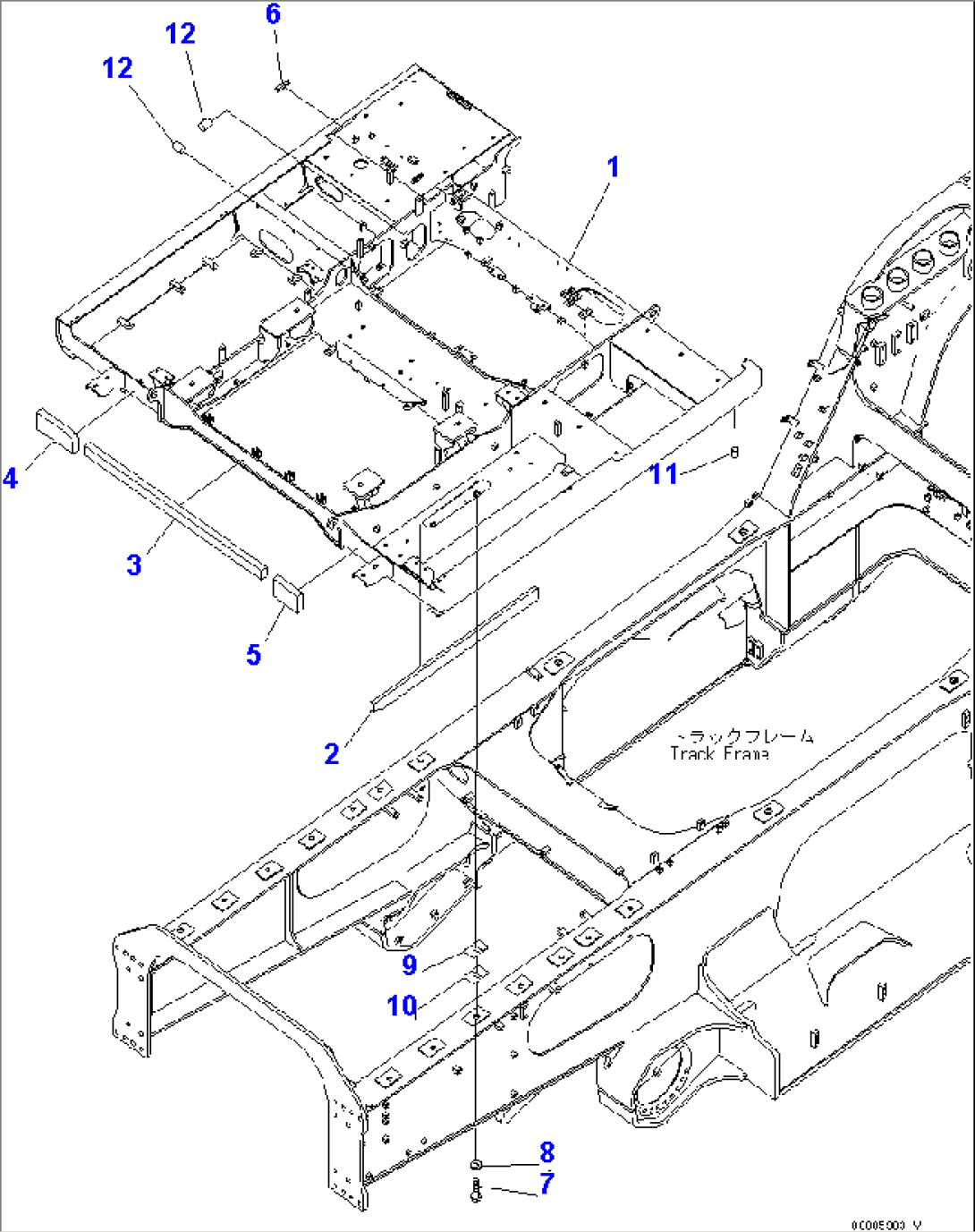

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8234-46-1211 | FRAME | 1030- | |
| 2 | 8234-46-1160 | SHEET | 1001- | |
| 3 | 8234-46-1170 | SHEET | 1001- | |
| 4 | 8234-46-1180 | SHEET | 1001- | |
| 5 | 8234-46-1190 | SHEET | 1001- | |
| 6 | 8234-46-1220 | SEAL | 1030- | |
| 7 | 01010-82065 | BOLT | 1001- | |
| 8 | 01643-32060 | WASHER | 1001- | |
| 9 | 8234-46-1141 | SHIM | 1001- | |
| 10 | 8234-46-1151 | SHIM | 1001- | |
| 11 | 07049-01012 | PLUG | 1001- | |
| 12 | 07049-01215 | PLUG | 1003- |
