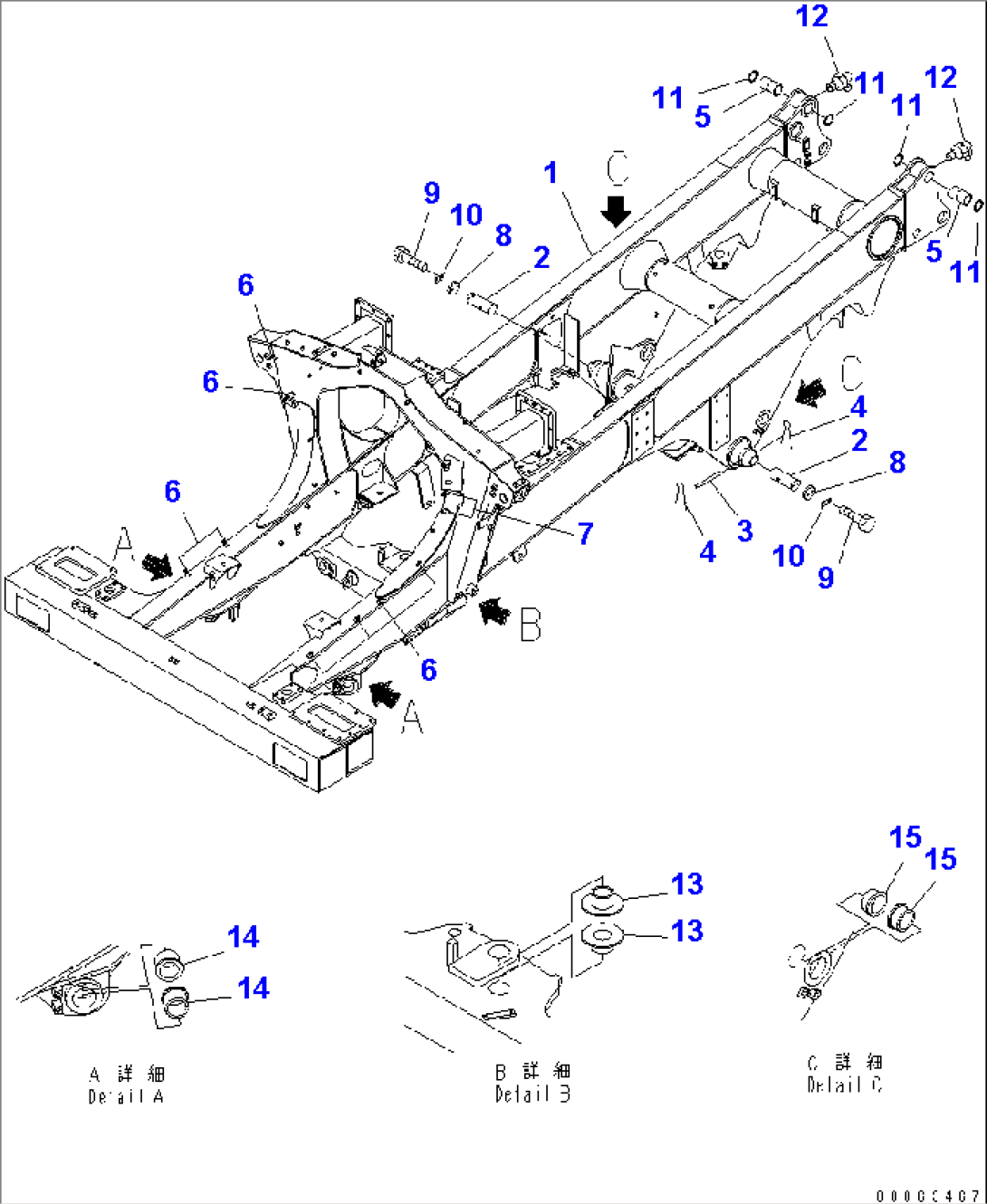

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-46-81202 | FRAME SEAT ASS'Y | 11001- | |
| 2 | 566-46-11910 | PIN | 11001- | |
| 3 | 566-46-12180 | PIN | 11001- | |
| 4 | 04050-13022 | PIN,COTTER | 11001- | |
| 5 | 566-46-42810 | BUSHING | 11001- | |
| 6 | 566-89-12130 | BRACKET (WELDED) | 11001- | |
| 7 | 566-89-6C690 | BRACKET (WELDED) | 11001- | |
| 8 | 04080-06012 | HOLDER | 11001- | |
| 9 | 01010-81230 | BOLT | 11001- | |
| 10 | 04081-06012 | LOCK | 11001- | |
| 11 | 07145-00060 | SEAL | 11001- | |
| 12 | 07020-00000 | FITTING | 11001- | |
| 13 | 566-40-41430 | BUSHING | 11001- | |
| 14 | 566-40-6A210 | BUSHING | 11001- | |
| 15 | 566-52-6A210 | BUSHING | 11001- |
