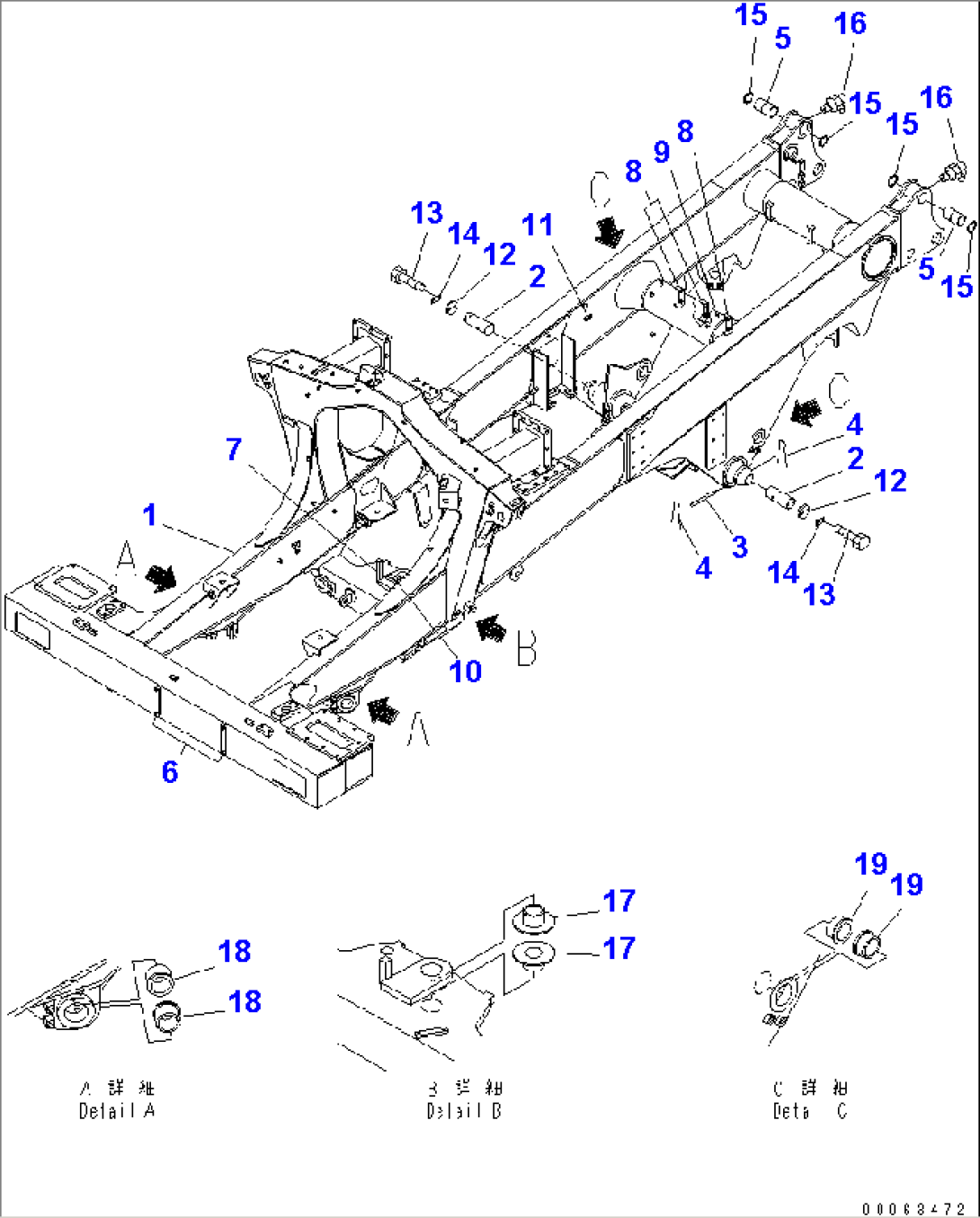

| Item | Part No. | Part Name | Qty | Serial No. |
| 566-46-8C200 | FRAME SEAT ASS'Y | 3001- | ||
| 1 | 566-46-81202 | FRAME SEAT ASS'Y | 3001- | |
| 2 | 566-46-11910 | PIN | 3001- | |
| 3 | 566-46-12180 | PIN | 3001- | |
| 4 | 04050-13022 | PIN,COTTER | 3001- | |
| 5 | 566-46-42810 | BUSHING | 3001- | |
| 6 | 566-74-11610 | SEAT,(WELDED) | 3001- | |
| 7 | 566-86-6M160 | JOINT | 3001- | |
| 8 | 566-88-81380 | BRACKET | 3001- | |
| 9 | 01571-01016 | SEAT (WELDED) | 3001- | |
| 10 | 01573-22311 | SEAT | 3001- | |
| 11 | 01573-20205 | SEAT | 3001- | |
| 12 | 04080-06012 | HOLDER | 3001- | |
| 13 | 01010-81230 | BOLT | 3001- | |
| 14 | 04081-06012 | LOCK | 3001- | |
| 15 | 07145-00060 | SEAL | 3001- | |
| 16 | 07020-00000 | FITTING | 3001- | |
| 17 | 566-40-41430 | BUSHING | 3001- | |
| 18 | 566-40-6A210 | BUSHING | 3001- | |
| 19 | 566-52-6A210 | BUSHING | 3001- |
