| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-46-82121 | FRAME SUB ASS'Y | 7001-7168 | |
| 2 | 561-46-61390 | BOSS | .-7168 | |
| 2 | 561-46-81390 | BOSS | 7001-. | |
| 3 | 568-46-11421 | PIN | 7001-7168 | |
| 4 | 568-46-11472 | BUSHING | 7001-7168 | |
| 5 | 07145-00090 | SEAL | 7001-.. |
- Главная
- Каталог запчастей
- Самосвалы
- Hd785 7 s/n 7001 8172
- Main frame and related parts
- Main frame (frame) (muffler)(#7001 7168)
Поиск по каталогу

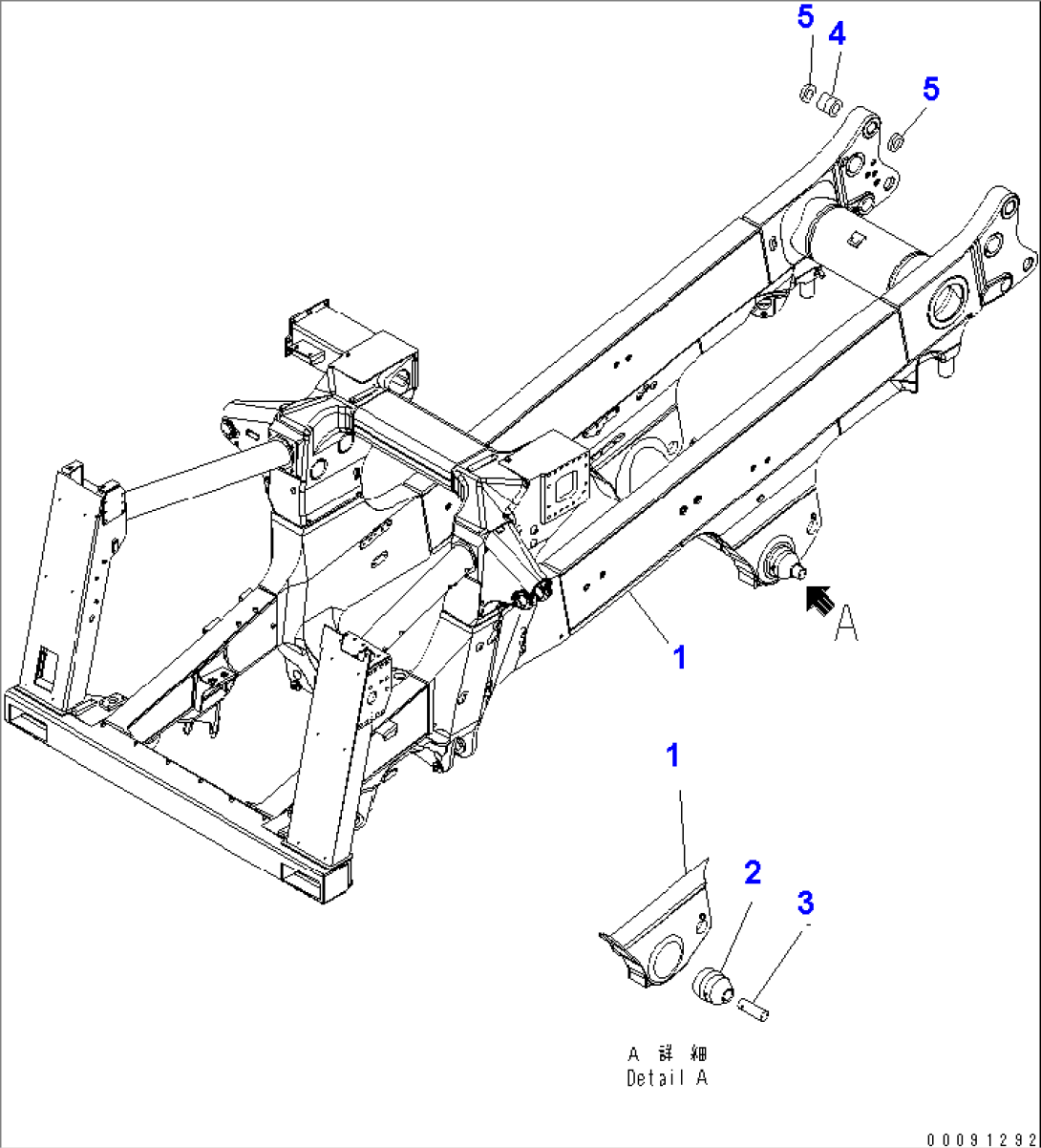

MAIN FRAME (FRAME) (MUFFLER)(#7001-7168)
