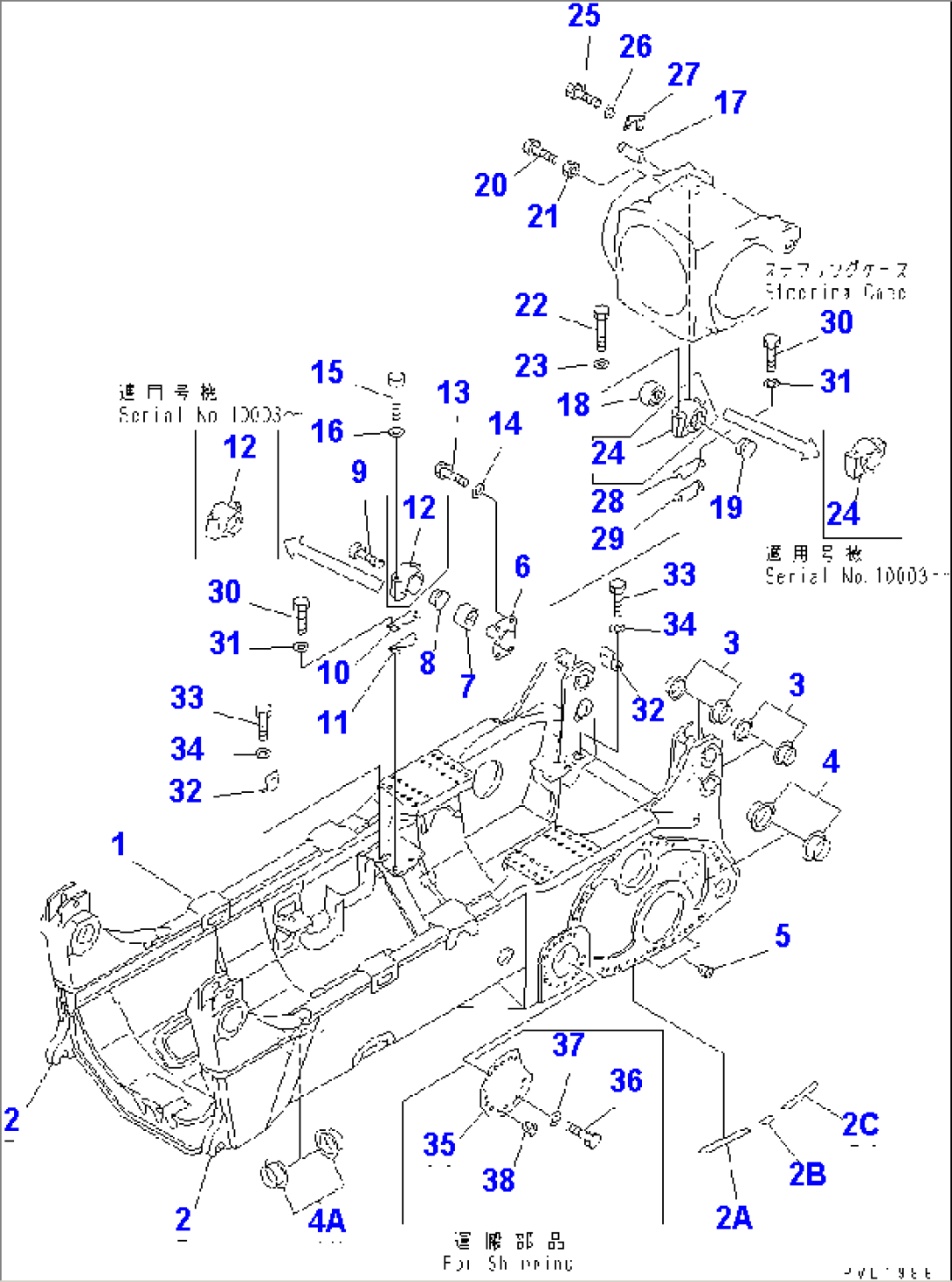

MAIN FRAME (REINFORCED TYPE)

MAIN FRAME (REINFORCED TYPE)
ItemPart No.Part NameQtySerial No.
19M-21-13220FRAME ASS'Y10001-10042
119M-21-11101FRAME ASS'Y10001-10042
219M-21-11150HOOK (WELDED)10001-10042
2A19M-79-11340LUG (WELDED)10001-@
2B19M-21-13230LUG (WELDED)10001-@
2C19M-21-13240LUG (WELDED)10001-@
319M-78-11251BUSHING10001-@
4A19M-50-11390BUSHING10030-@
419M-50-11290BUSHING10030-@
19M-50-11290BUSHING10001-10029
507049-03645PLUG10001-@
619M-21-13171BRACKET10003-@
19M-21-13170BRACKET10001-10002
719M-21-13121CUSHION10001-@
819M-21-13160CUSHION10001-@
901010-62055BOLT10001-@
19M-21-00030SHIM ASS'Y10001-@
10\6\SHIM,0.2MM10001-@
11\6\SHIM,1.0MM10001-@
1219M-21-13151BRACKET10003-@
19M-21-13150BRACKET10001-10002
1301010-62060BOLT10001-@
1401643-12060WASHER10001-@
15195-09-18112BOLT10001-@
1601643-33080WASHER10001-@
1709255-06245PIN10001-@
1819M-21-13121CUSHION10001-@
1919M-21-13130CUSHION10001-@
2001016-52090BOLT10001-@
2101580-02016NUT10001-@
22195-09-18112BOLT10001-@
2301643-33080WASHER10001-@
2419M-21-13111BRACKET10003-@
19M-21-13110BRACKET10001-10002
2501010-62045BOLT10001-@
2601643-32060WASHER10001-@
2709257-09014LOCK10001-@
19M-21-00030SHIM ASS'Y10001-@
28\6\SHIM,0.2MM10001-@
29\6\SHIM,1.0MM10001-@
3001010-80818BOLT10001-@
3101643-30823WASHER10001-@
3219M-21-13210PLATE10001-@
3301010-62060BOLT10001-@
3401643-32060WASHER10001-@
3519M-09-13190PLATE,(FOR SHIPPING)10001-@
3601010-63690BOLT,(FOR SHIPPING)10026-@
01010-63060BOLT,(FOR SHIPPING)10001-10025
3701643-33690WASHER,(FOR SHIPPING)10026-@
01643-33080WASHER,(FOR SHIPPING)10001-10025
3807049-03342PLUG,(FOR SHIPPING)10001-@
