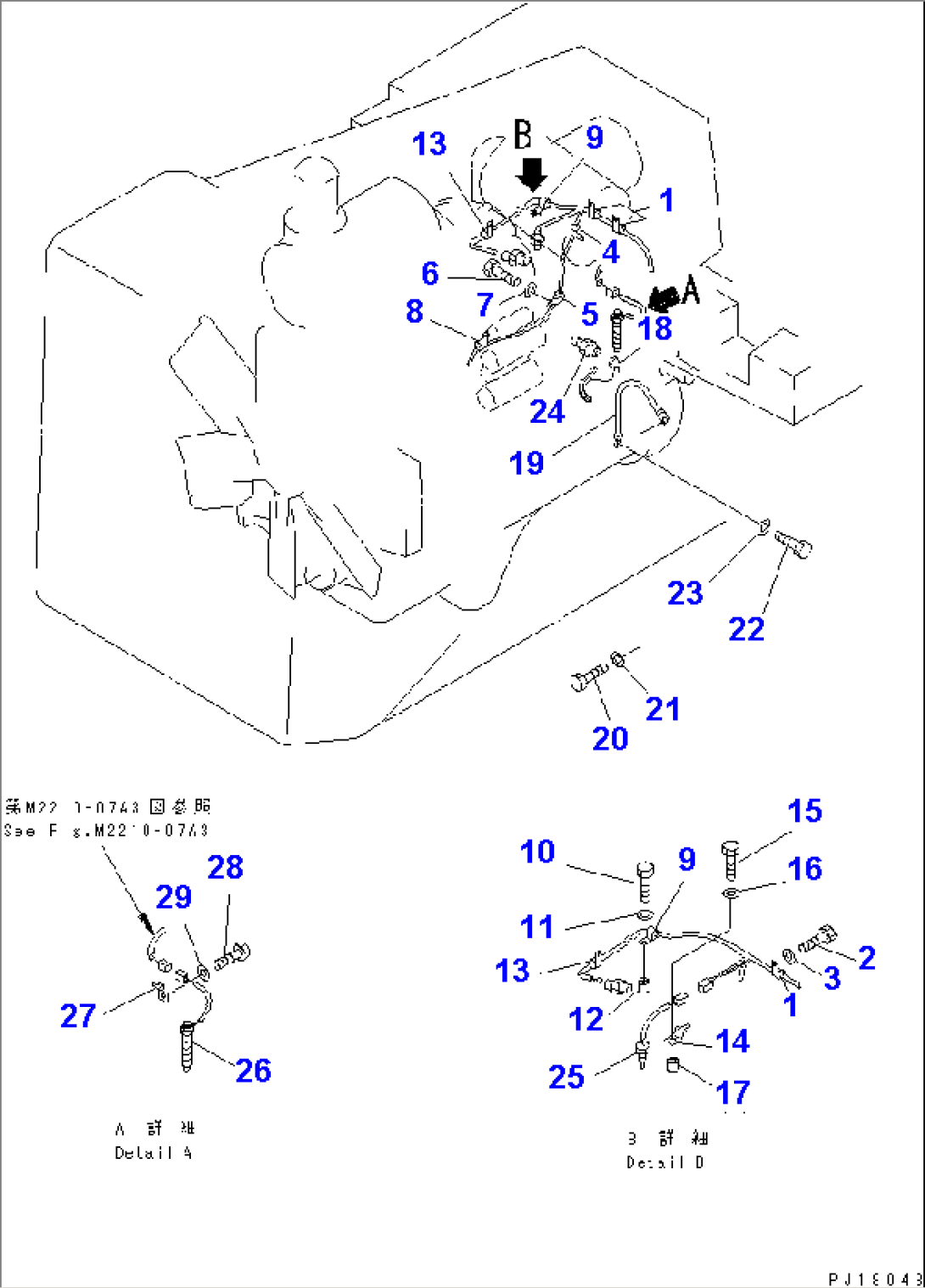

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08036-00814 | CLIP | 10001- | |
| 2 | 01010-81220 | BOLT | 10001- | |
| 3 | 01643-31232 | WASHER | 10001- | |
| 4 | 21T-38-12270 | CLIP | 10001- | |
| 5 | 21T-38-12270 | CLIP | 10001- | |
| 6 | 01010-81220 | BOLT | 10001- | |
| 7 | 01643-31232 | WASHER | 10001- | |
| 8 | 08036-00814 | CLIP | 10001- | |
| 9 | 21T-38-12270 | CLIP | 10001- | |
| 10 | 01010-81260 | BOLT | 10001- | |
| 11 | 01643-31232 | WASHER | 10001- | |
| 12 | 195-33-11220 | SPACER | 10001- | |
| 13 | 21T-38-12270 | CLIP | 10001- | |
| 14 | 08053-01512 | CLIP | 10001- | |
| 15 | 01010-81260 | BOLT | 10001- | |
| 16 | 01643-31232 | WASHER | 10001- | |
| 17 | 195-33-11220 | SPACER | 10001- | |
| 18 | 08038-10519 | CAP | 10001- | |
| 19 | 175-06-51440 | WIRE | 10001- | |
| 20 | 01010-81035 | BOLT | 10001- | |
| 21 | 01643-31032 | WASHER | 10001- | |
| 22 | 01010-81220 | BOLT | 10001- | |
| 23 | 01643-31232 | WASHER | 10001- | |
| 24 | 08073-00505 | SWITCH | 10001- | |
| 25 | 7861-92-3320 | SENSOR,ENGINE WATER TEMPERATURE | 10001- | |
| 26 | 7861-92-2340 | SENSOR,PICK-UP | 10001- | |
| 27 | 08053-01512 | CLIP | 10001- | |
| 28 | 01010-81020 | BOLT | 10001- | |
| 29 | 01643-31032 | WASHER | 10001- |
