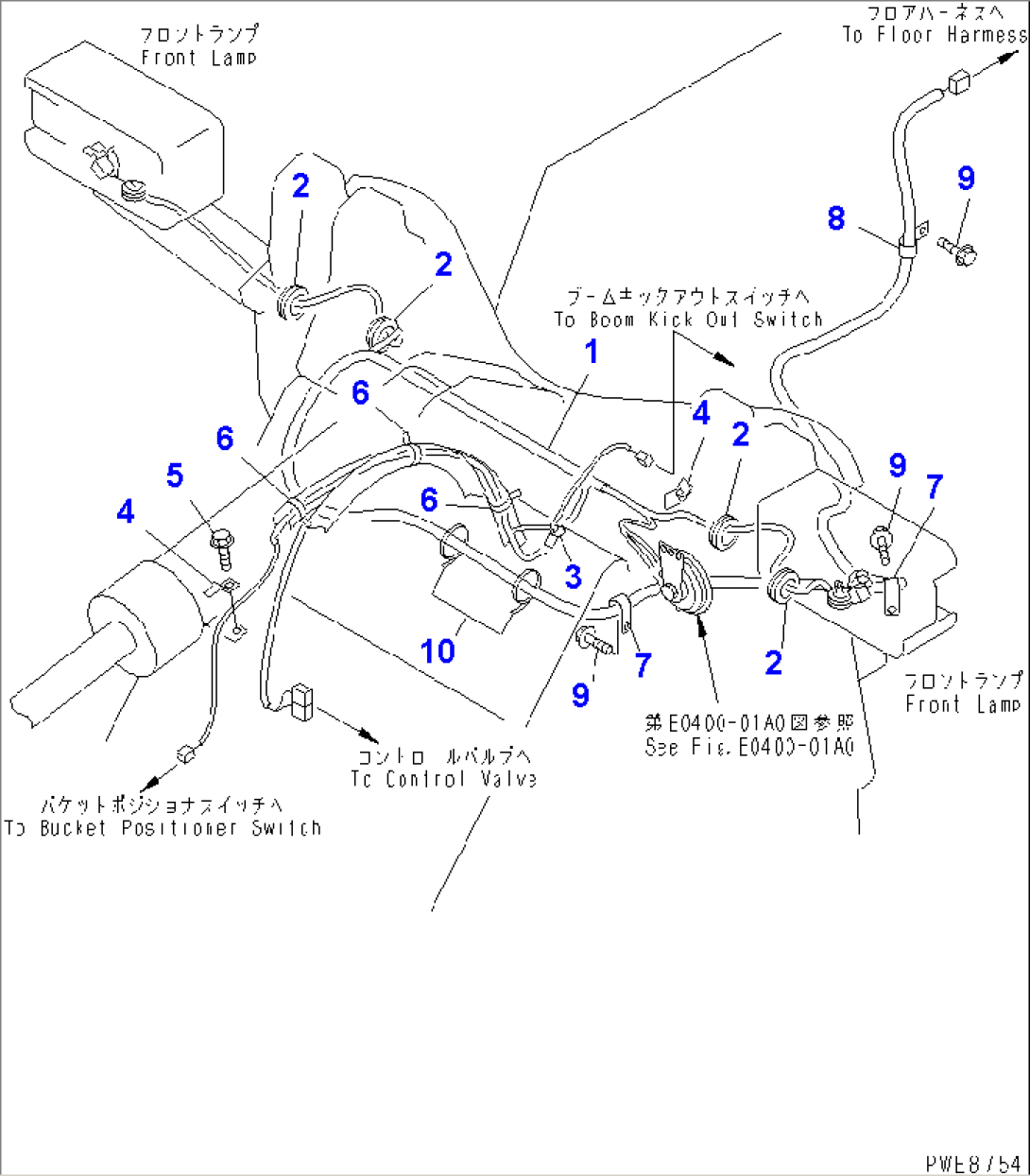

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-06-22112 | WIRING HARNESS | 63001- | |
| 2 | 08037-03620 | GROMMET | 63001- | |
| 3 | 08036-10814 | CLIP | 63001- | |
| 4 | 08053-01512 | CLIP | 63001- | |
| 5 | 01435-01016 | BOLT | 63001- | |
| 6 | 08034-20519 | BAND | 63001- | |
| 7 | 08035-03010 | CLIP | 63001- | |
| 8 | 08036-01814 | CLIP | 63001- | |
| 9 | 01435-01016 | BOLT | 63001- | |
| 10 | 08034-20519 | BAND | 63001- |
