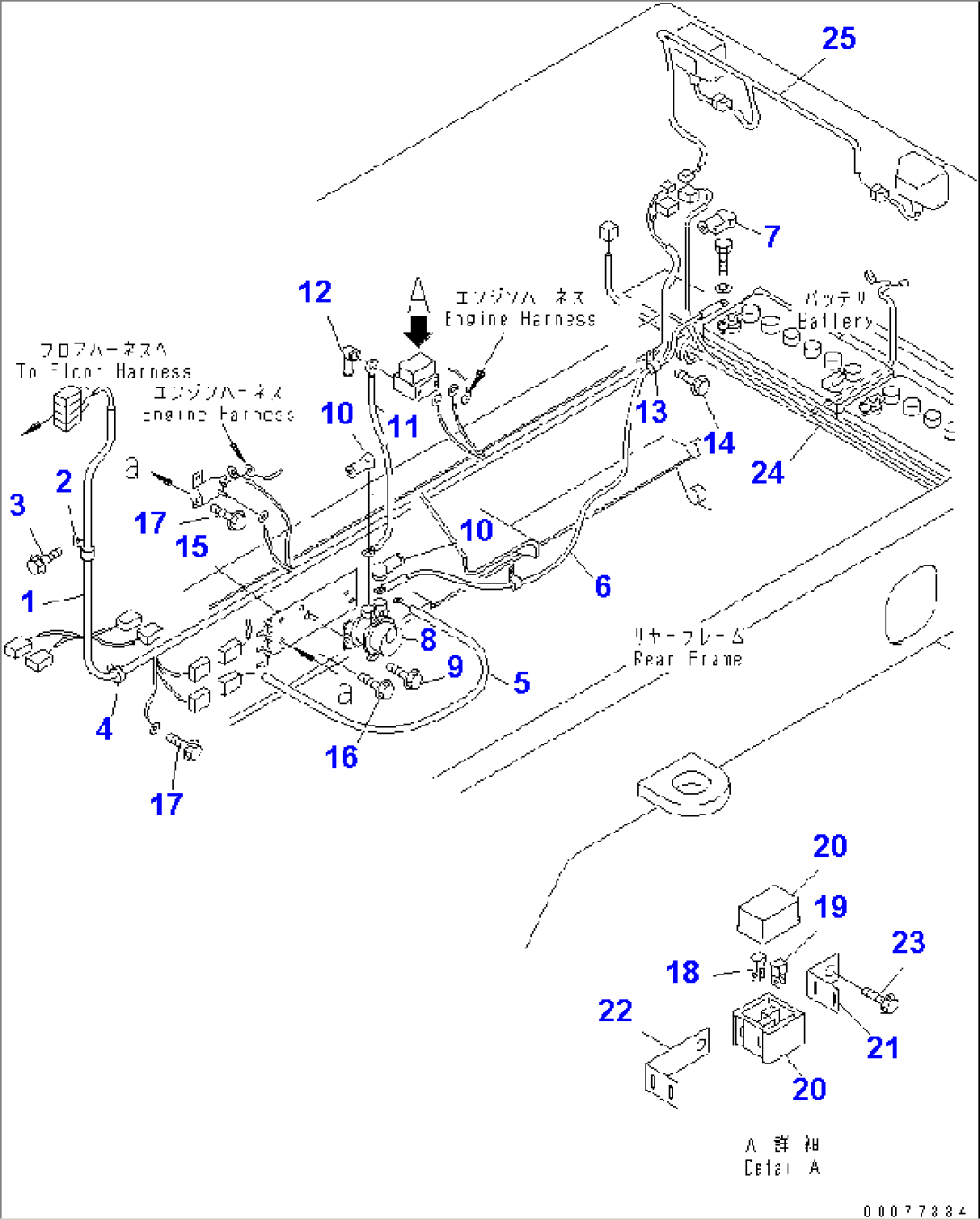

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-06-A1910 | WIRING HARNESS | A88001- | |
| 08020-10000 | DIODE | A88001- | ||
| 2 | 08036-02514 | CLIP | A88001- | |
| 3 | 01435-01016 | BOLT | A88001- | |
| 4 | 08034-20519 | BAND | A88001- | |
| 5 | 417-06-22231 | WIRING HARNESS | A88001- | |
| 6 | 418-06-A1430 | WIRE,RELAY | A88001- | |
| 7 | 08038-06031 | CAP | A88001- | |
| 8 | 08088-30000 | SWITCH | A88001- | |
| 9 | 01435-00825 | BOLT | A88001- | |
| 10 | 08038-06031 | CAP | A88001- | |
| 11 | 417-06-22330 | WIRE | A88001- | |
| 12 | 08038-06031 | CAP | A88001- | |
| 13 | 08036-01214 | CLIP | A88001- | |
| 14 | 01435-01016 | BOLT | A88001- | |
| 15 | 418-06-22550 | BRACKET | A88001- | |
| 16 | 01435-01016 | BOLT | A88001- | |
| 17 | 01435-00612 | BOLT | A88001- | |
| 18 | 421-06-22830 | FUSE, 120A | A88001- | |
| 19 | 421-06-22820 | FUSE, 80A | A88001- | |
| 20 | 421-06-22880 | HOLDER | A88001- | |
| 421-06-22990 | BOLT | A88001- | ||
| 21 | 421-06-22910 | BRACKET | A88001- | |
| 22 | 421-06-22920 | BRACKET | A88001- | |
| 23 | 01435-00812 | BOLT | A88001- | |
| 24 | WIRING HARNESS,(SEE FIG. E0120-01A0) | A88001- | ||
| 25 | WIRING HARNESS,(SEE FIG. M4120-02A0) | A88001- |
