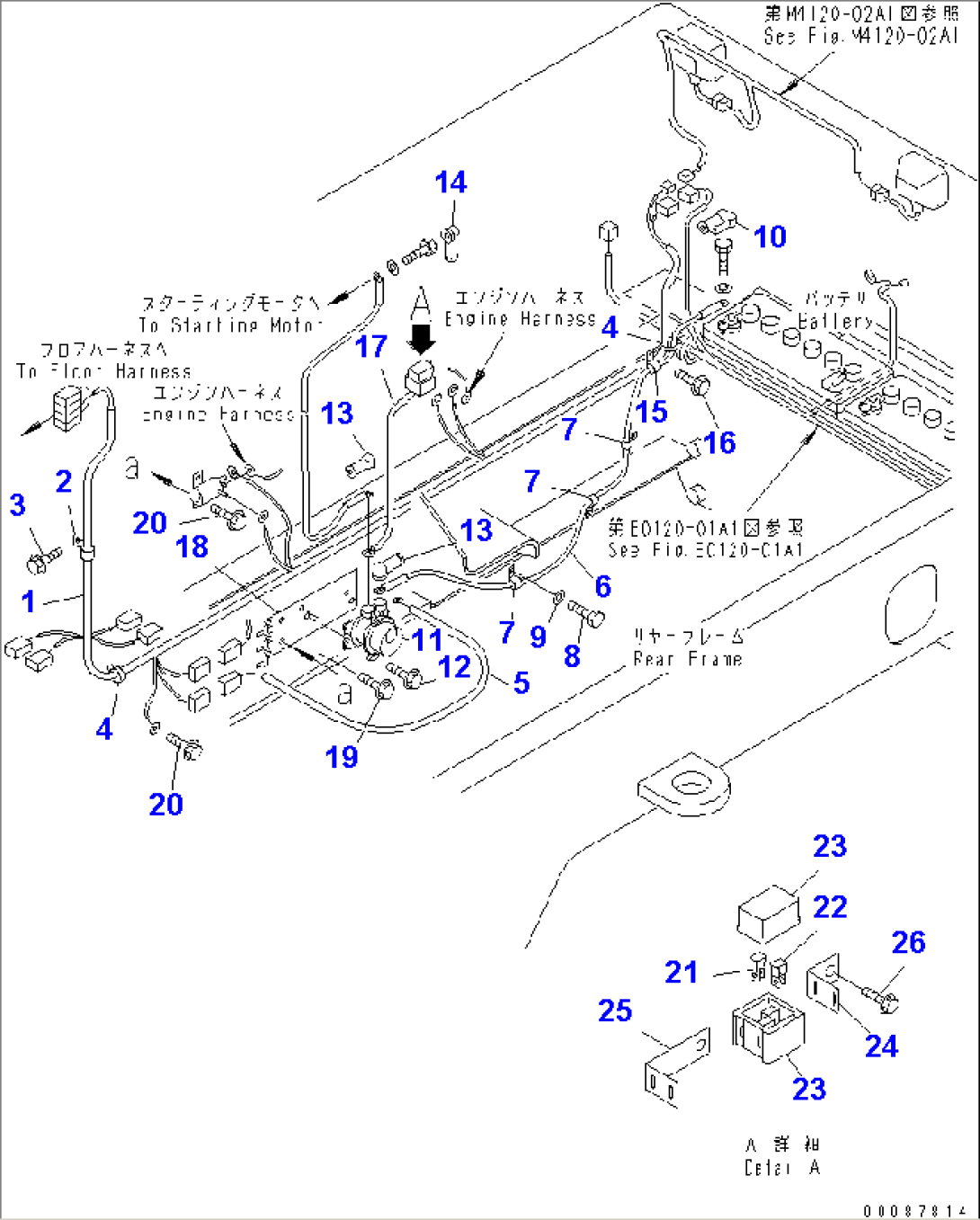

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-06-22361 | WIRING HARNESS | 54001- | |
| 1 | 08020-10000 | DIODE | 54001- | |
| 2 | 08036-02514 | CLIP | 54001- | |
| 3 | 01435-01016 | BOLT | 54001- | |
| 4 | 08034-20519 | BAND | 54001- | |
| 5 | 417-06-22231 | WIRING HARNESS | 54001- | |
| 6 | 418-06-22372 | CABLE | 54563- | |
| 7 | 04434-51712 | CLIP | 54563- | |
| 8 | 01010-81016 | BOLT | 54563- | |
| 9 | 01643-31032 | WASHER | 54563- | |
| 10 | 424-09-12530 | BOOT | 54001- | |
| 11 | 08088-30000 | SWITCH,BATTERY RELAY | 54001- | |
| 12 | 01435-00825 | BOLT | 54001- | |
| 13 | 08038-06031 | CAP | 54001- | |
| 14 | 08038-06031 | CAP | 54001- | |
| 15 | 08036-01214 | CLIP | 54001- | |
| 16 | 01435-01016 | BOLT | 54001- | |
| 17 | 417-06-22330 | WIRE | 54001- | |
| 18 | 418-06-22550 | BRACKET | 54001- | |
| 19 | 01435-01016 | BOLT | 54001- | |
| 20 | 01435-00612 | BOLT | 54001- | |
| 21 | 421-06-22830 | FUSE, 120A | 54001- | |
| 22 | 421-06-22820 | FUSE, 80A,SLOW BLOW | 54001- | |
| 23 | 421-06-22880 | HOLDER | 54001- | |
| 23 | 421-06-22990 | BOLT | 54001- | |
| 24 | 421-06-22910 | BRACKET | 54001- | |
| 25 | 421-06-22920 | BRACKET | 54001- | |
| 26 | 01435-00812 | BOLT | 54001- |
