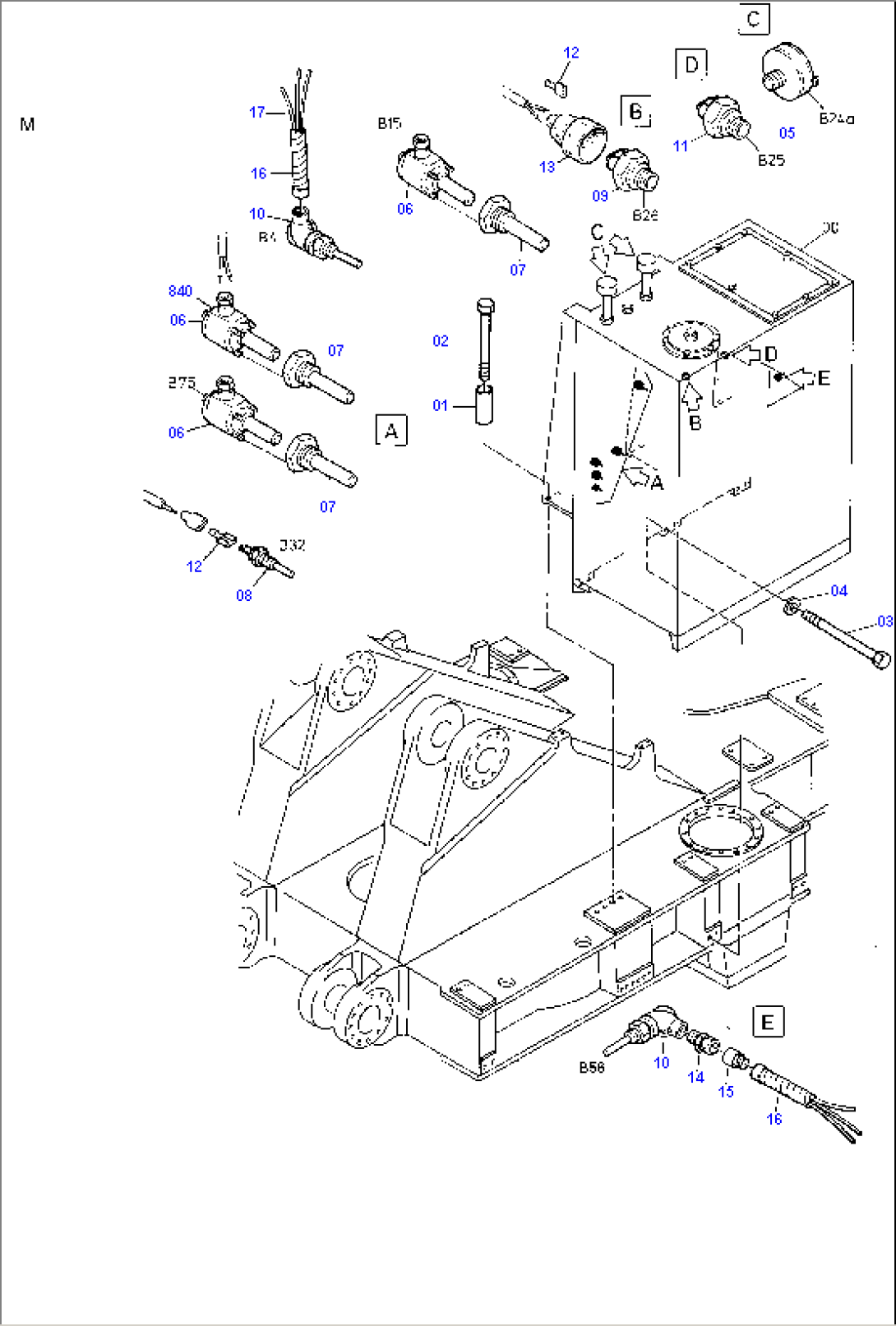

Item | Part No. | Part Name | Qty | Serial No. |
00 | 640 090 40 | Main oil tank | ||
01 | Resilient sleeve | |||
02 | Bolt | |||
03 | 511 762 98 | Bolt | ||
04 | Washer | |||
05 | 255 721 40 | Monitoring switch | ||
06 | 440 382 40 | Sensor | ||
07 | 269 870 40 | Cover tube | ||
08 | 431 168 40 | Sensor | ||
09 | 084 020 40 | Monitoring switch | ||
10 | 621 846 40 | Oil level switch | ||
11 | 192 165 40 | Monitoring switch | ||
12 | 440 151 99 | Receptacle for tabs | ||
13 | 323 592 40 | Insulation cap | ||
14 | 323 950 40 | Cable union PG 9 | ||
15 | 356 246 40 | Plug-in sleeve | ||
16 | 356 238 40 | Protecting hose PG 9 Bulk ware, state length required | ||
17 | 471 861 99 | Cable 1mm² Bulk ware, state length required |
