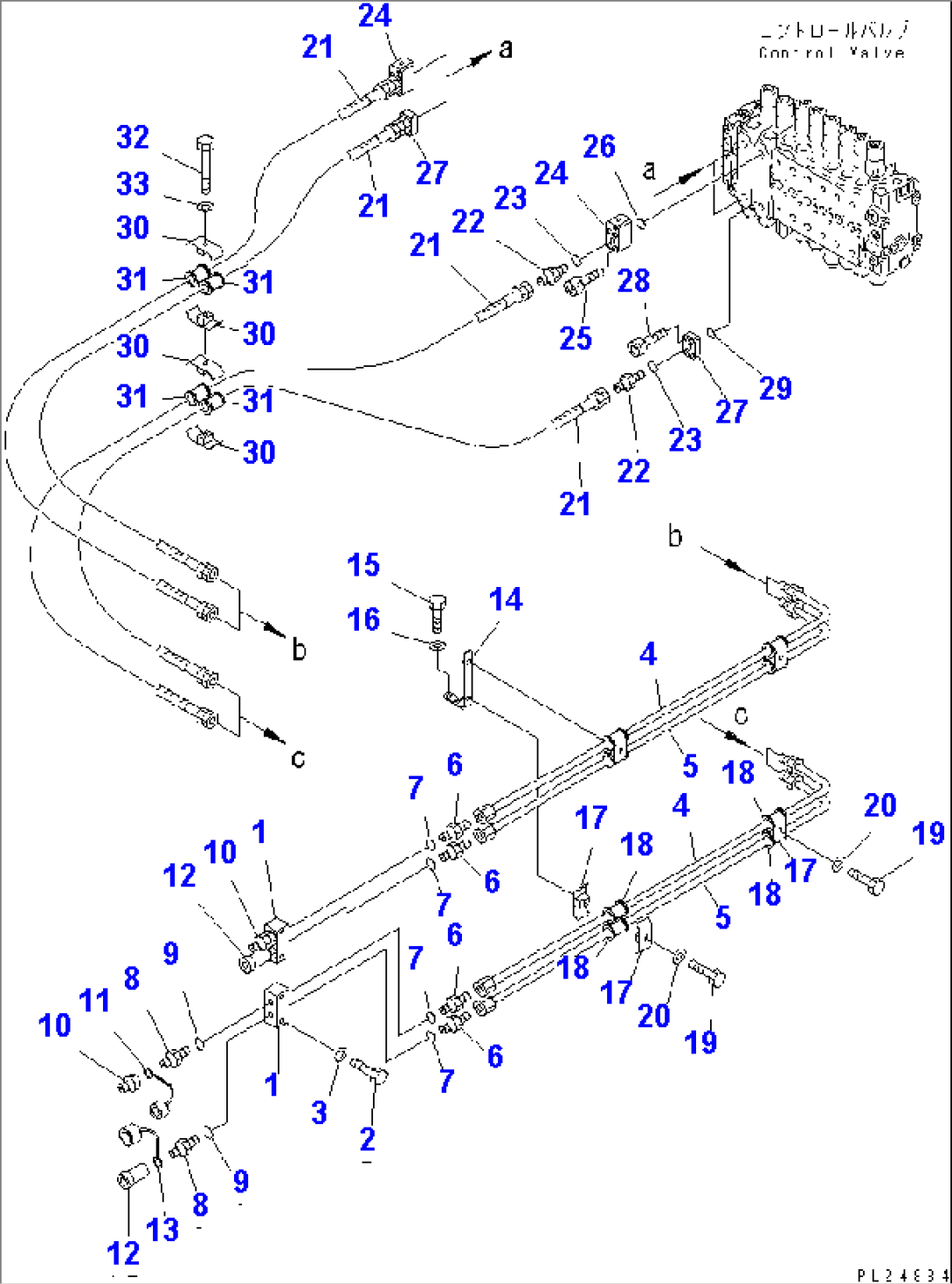

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8248-62-1170 | BLOCK | 1101- | |
| 2 | 01010-81290 | BOLT | 1101- | |
| 3 | 01643-31232 | WASHER | 1101- | |
| 4 | 8229-62-2150 | TUBE | 1101- | |
| 5 | 8229-62-2160 | TUBE | 1101- | |
| 6 | 07230-20422 | UNION | 1101- | |
| 7 | 07002-12034 | O-RING | 1101- | |
| 8 | 417-891-1160 | UNION | 1101- | |
| 9 | 07002-12034 | O-RING | 1101- | |
| 10 | 8221-75-2610 | COUPLER | 1101- | |
| 11 | 8248-62-1190 | CAP | 1101- | |
| 12 | 8221-75-2590 | COUPLER | 1101- | |
| 13 | 8248-62-1180 | CAP | 1101- | |
| 14 | 8261-62-1130 | BRACKET | 1101- | |
| 15 | 01010-81225 | BOLT | 1101- | |
| 16 | 01643-31232 | WASHER | 1101- | |
| 17 | 07094-30417 | CLAMP | 1101- | |
| 18 | 07095-00421 | CUSHION | 1101- | |
| 19 | 01010-81265 | BOLT | 1101- | |
| 20 | 01643-31232 | WASHER | 1101- | |
| 21 | 07123-00424 | HOSE | 1101- | |
| 22 | 07230-20422 | UNION | 1101- | |
| 23 | 07002-12034 | O-RING | 1101- | |
| 24 | 8248-62-1450 | BLOCK | 1101- | |
| 25 | 01252-31055 | BOLT | 1101- | |
| 26 | 07000-13035 | O-RING | 1101- | |
| 27 | 8248-62-1140 | BLOCK | 1101- | |
| 28 | 01252-31025 | BOLT | 1101- | |
| 29 | 07000-13035 | O-RING | 1101- | |
| 30 | 07094-30417 | CLAMP | 1101- | |
| 31 | 07095-00423 | CUSHION | 1101- | |
| 32 | 01011-81210 | BOLT | 1101- | |
| 33 | 01643-31232 | WASHER | 1101- |
