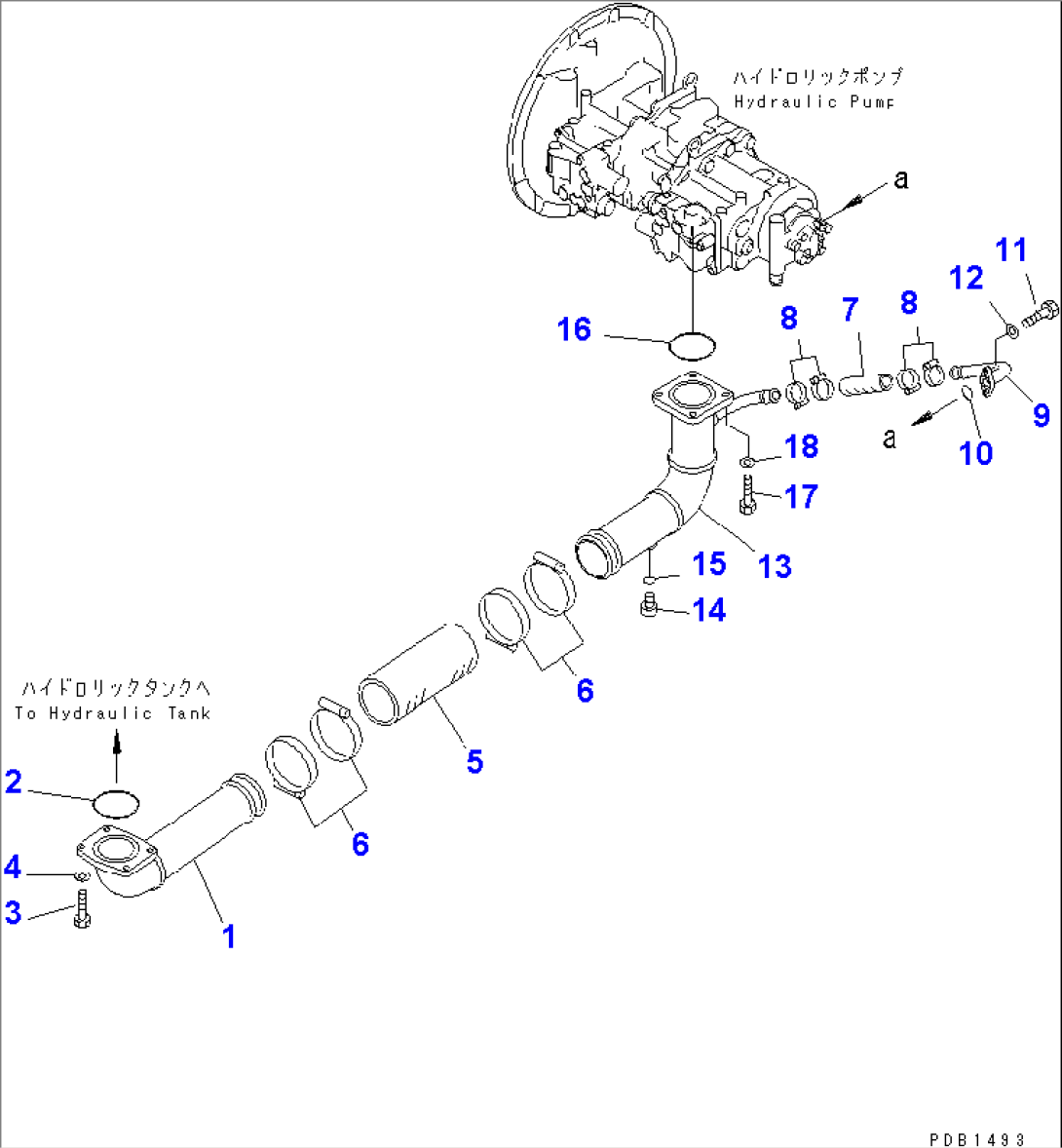

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 207-62-61150 | TUBE | 1002-1200 | |
| 2 | 07000-02105 | O-RING | 1002-1200 | |
| 3 | 01010-81240 | BOLT | 1002-@ | |
| 4 | 01643-31232 | WASHER | 1002-@ | |
| 5 | 07260-09932 | HOSE | 1002-1200 | |
| 6 | 07289-00120 | CLAMP | 1002-@ | |
| 7 | 07260-02616 | HOSE | 1002-1200 | |
| 8 | 07289-00035 | CLAMP | 1002-1200 | |
| 9 | 207-62-61180 | TUBE | 1002-1200 | |
| 10 | 07000-03028 | O-RING | 1002-1200 | |
| 11 | 01010-51030 | BOLT | 1002-1200 | |
| 12 | 01643-31032 | WASHER | 1002-1200 | |
| 13 | 208-62-61111 | TUBE | 1002-1200 | |
| 14 | 07040-12414 | PLUG | 1002-@ | |
| 15 | 07002-02434 | O-RING | 1002-1200 | |
| 16 | 07000-02105 | O-RING | 1002-1200 | |
| 17 | 01010-81255 | BOLT | 1002-@ | |
| 18 | 01643-31232 | WASHER | 1002-@ |
