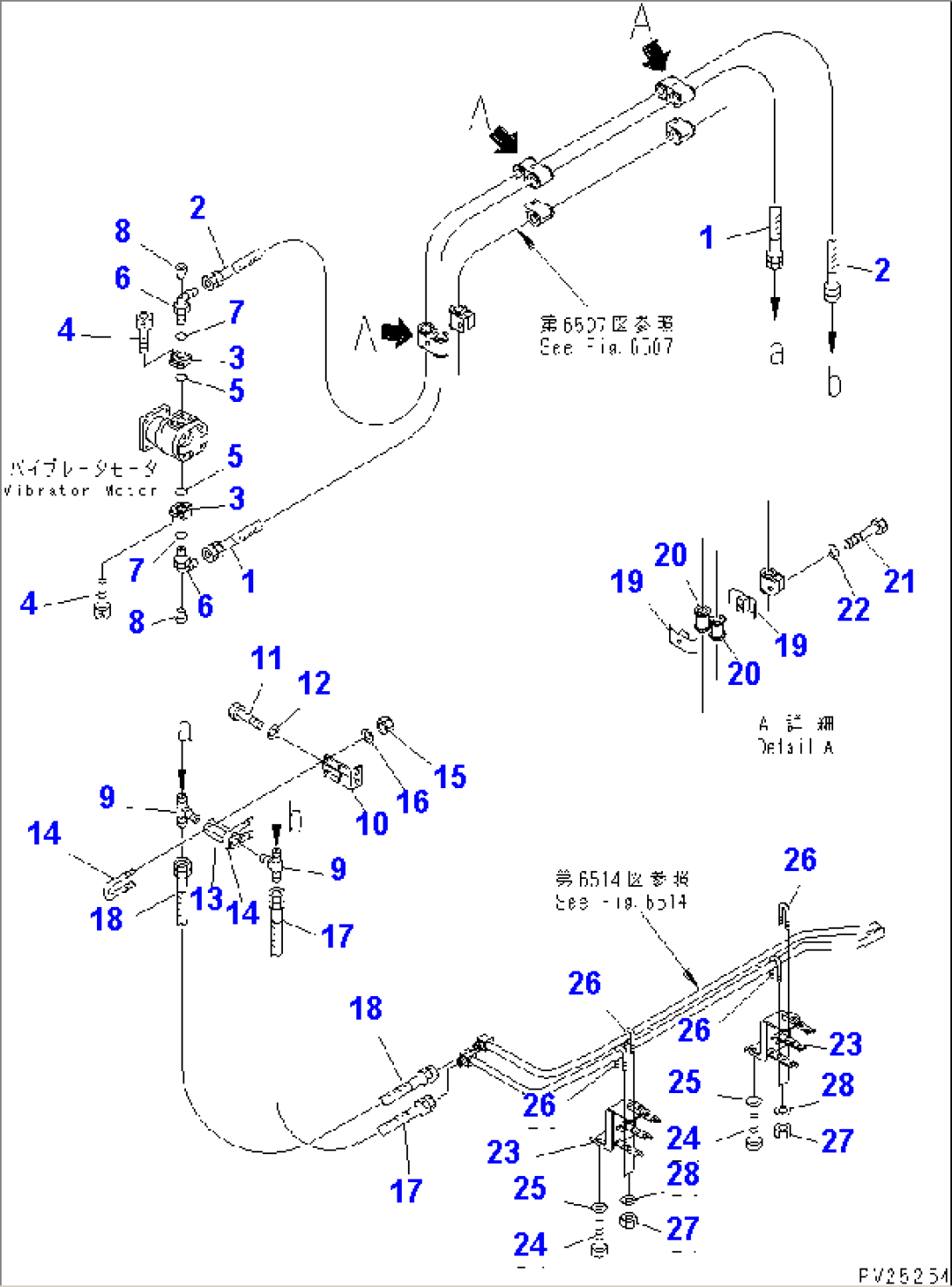

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07108-20622 | HOSE | 1101- | |
| 2 | 07108-20623 | HOSE | 1101- | |
| 3 | 8242-62-1410 | FLANGE | 1101- | |
| 4 | 01252-31025 | BOLT | 1101- | |
| 5 | 07000-13038 | O-RING | 1101- | |
| 6 | 07235-50628 | ELBOW | 1101- | |
| 7 | 07002-12434 | O-RING | 1101- | |
| 8 | 07043-70108 | PLUG | 1101- | |
| 9 | 8242-62-1350 | TEE | 1101- | |
| 10 | 8233-62-3130 | BRACKET | 1101- | |
| 11 | 01010-81230 | BOLT | 1101- | |
| 12 | 01643-31232 | WASHER | 1101- | |
| 13 | 568-95-11150 | VALVE | 1101- | |
| 14 | 07283-34949 | CLIP | 1101- | |
| 15 | 01597-01009 | NUT | 1101- | |
| 16 | 01643-31032 | WASHER | 1101- | |
| 17 | 07108-20606 | HOSE | 1101- | |
| 18 | 07108-20607 | HOSE | 1101- | |
| 19 | 07094-20620 | CLAMP | 1101- | |
| 20 | 07095-00628 | CUSHION | 1101- | |
| 21 | 01011-81205 | BOLT | 1101- | |
| 22 | 01643-31232 | WASHER | 1101- | |
| 23 | 8233-62-3471 | BRACKET | 1101- | |
| 24 | 01010-81225 | BOLT | 1101- | |
| 25 | 01643-31232 | WASHER | 1101- | |
| 26 | 07283-22738 | CLIP | 1101- | |
| 27 | 01599-01011 | NUT | 1101- | |
| 28 | 01643-31032 | WASHER | 1101- |
