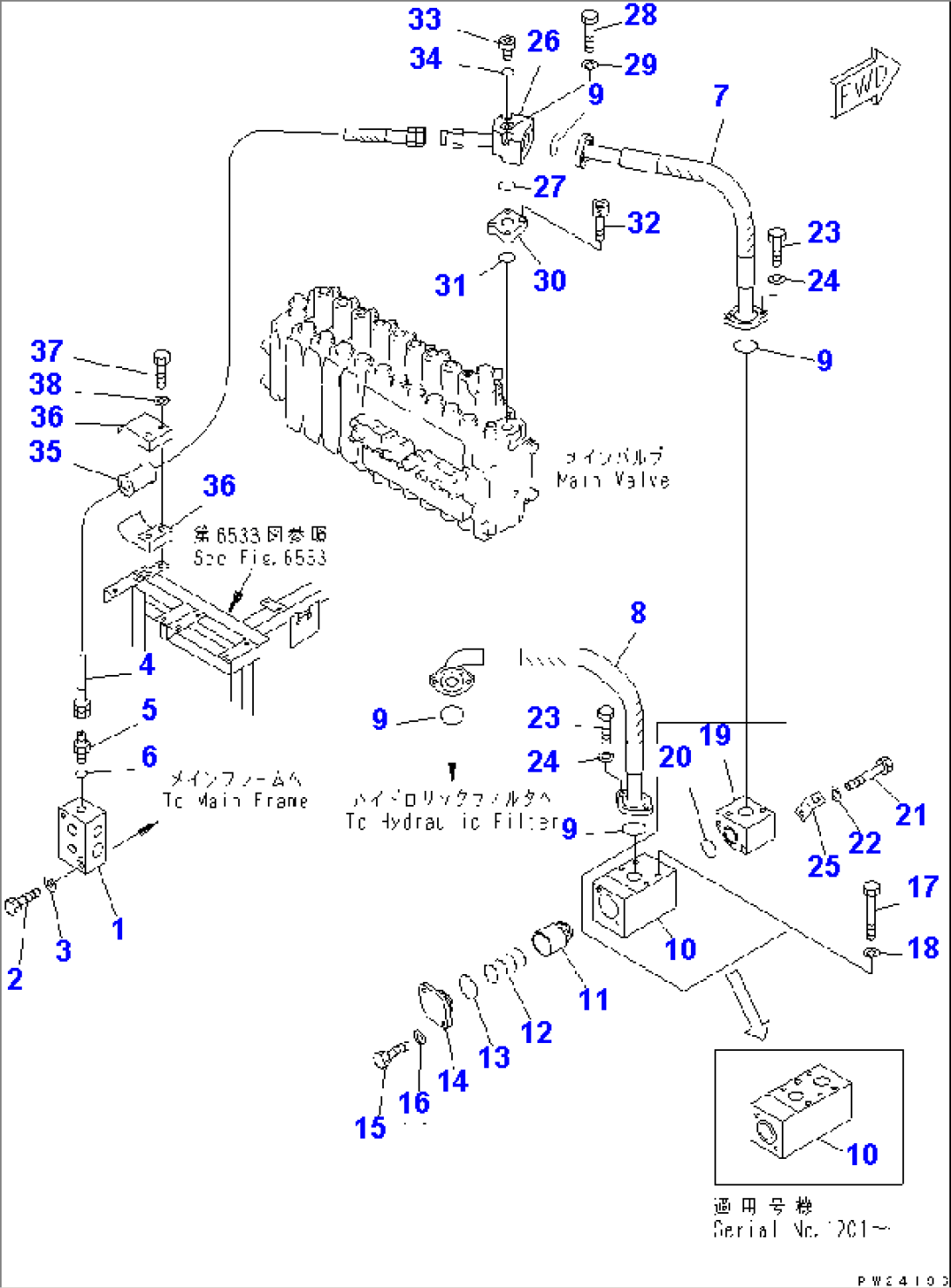

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8248-62-1110 | BLOCK | 1002- | |
| 2 | 01010-51290 | BOLT | 1002- | |
| 3 | 01643-31232 | WASHER | 1002- | |
| 4 | 07102-21020 | HOSE | 1002- | |
| 5 | 07230-11034 | UNION | 1002- | |
| 6 | 07002-03334 | O-RING | 1002- | |
| 7 | 207-62-62240 | HOSE, 850MM | 1002- | |
| 8 | 207-62-62230 | HOSE, 900MM | 1002- | |
| 9 | 07000-13048 | O-RING | 1002- | |
| 207-62-61901 | VALVE ASS'Y | 1201- | ||
| 207-62-61200 | VALVE ASS'Y | 1002-1200 | ||
| 10 | \6\ | BLOCK | 1201- | |
| 10 | \6\ | BLOCK | 1002-1200 | |
| 11 | 207-60-51460 | POPPET | 1002- | |
| 12 | 207-62-61920 | SPRING | 1201- | |
| 12 | 209-60-52320 | SPRING | 1002-1200 | |
| 13 | 07000-12060 | O-RING | 1201- | |
| 13 | 07000-02060 | O-RING | 1002-1200 | |
| 14 | 207-62-63110 | FLANGE | 1002- | |
| 15 | 01643-31232 | WASHER | 1002- | |
| 16 | 01010-81235 | BOLT | 1201- | |
| 16 | 01010-81230 | BOLT | 1002-1200 | |
| 17 | 01011-51240 | BOLT | 1002- | |
| 18 | 01643-31232 | WASHER | 1002- | |
| 19 | 207-62-62181 | BLOCK | 1002- | |
| 20 | 07000-03045 | O-RING | 1002- | |
| 21 | 01010-81240 | BOLT | 1201- | |
| 21 | 01011-51220 | BOLT | 1002-1200 | |
| 22 | 01643-31232 | WASHER | 1002- | |
| 23 | 01010-81240 | BOLT | 1002- | |
| 24 | 01643-31232 | WASHER | 1002- | |
| 25 | 17M-49-15260 | BRACKET | 1002- | |
| 26 | 207-62-62161 | TUBE | 1002- | |
| 27 | 07000-03038 | O-RING | 1002- | |
| 28 | 01010-81275 | BOLT | 1002- | |
| 29 | 01643-31232 | WASHER | 1002- | |
| 30 | 207-62-62170 | PLATE | 1002- | |
| 31 | 07000-03038 | O-RING | 1002- | |
| 32 | 01252-41025 | BOLT | 1002- | |
| 33 | 07040-11409 | PLUG | 1002- | |
| 34 | 07002-01423 | O-RING | 1002- | |
| 35 | 07095-01035 | CUSHION | 1002- | |
| 36 | 07094-01024 | CLAMP | 1002- | |
| 37 | 01010-81280 | BOLT | 1002- | |
| 38 | 01643-31232 | WASHER | 1002- |
