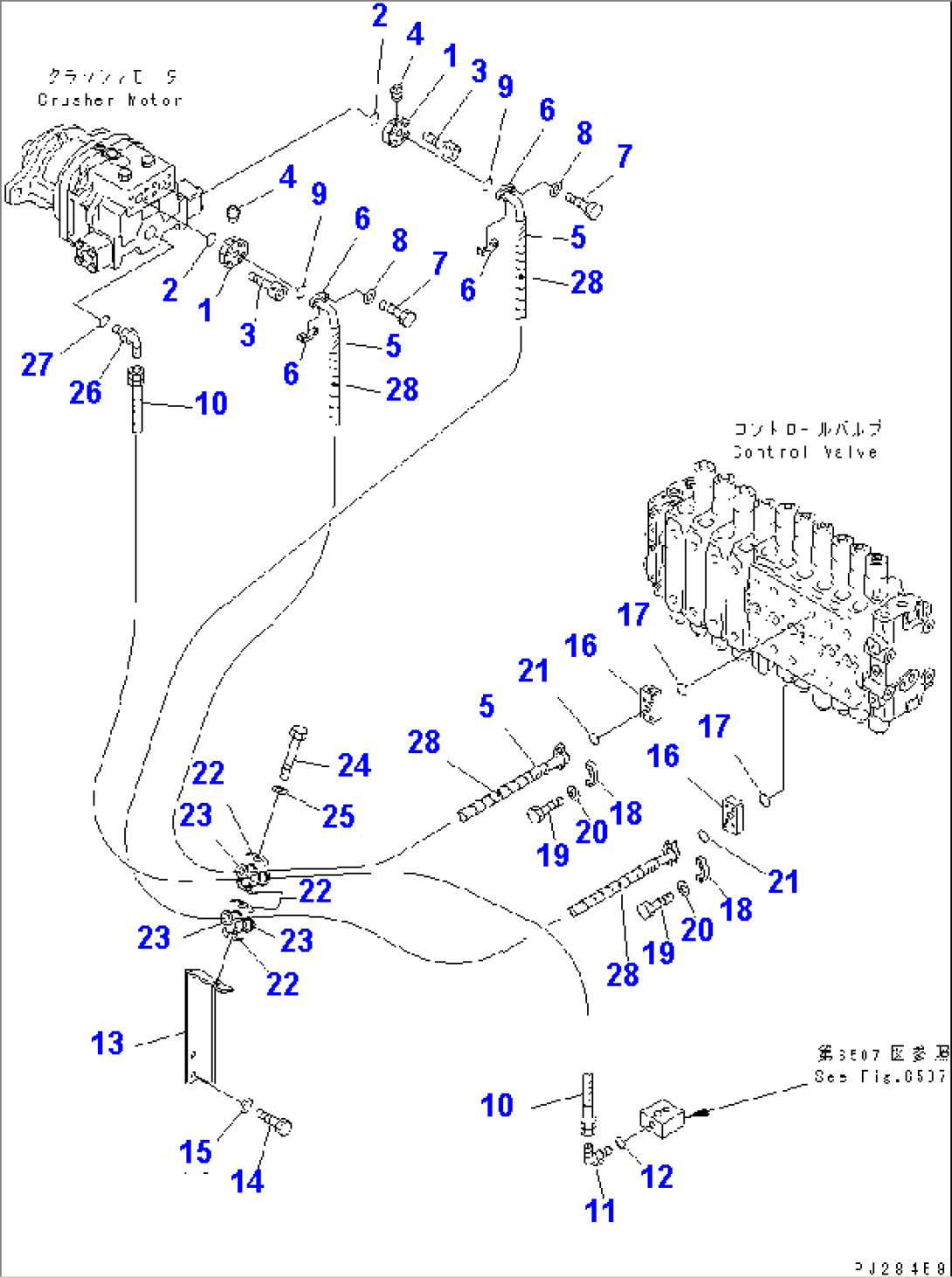

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8221-62-1580 | FLANGE | 1005- | |
| 2 | 07000-13032 | O-RING | 1005- | |
| 3 | 01252-31025 | BOLT | 1005- | |
| 4 | 07042-70108 | PLUG | 1005- | |
| 5 | 8242-62-2290 | HOSE | 1501- | |
| 6 | 07371-31049 | FLANGE | 1501- | |
| 7 | 07372-21035 | BOLT | 1501- | |
| 8 | 01643-51032 | WASHER | 1501- | |
| 9 | 07000-13032 | O-RING | 1501- | |
| 10 | 07103-50619 | HOSE | 1238- | |
| 11 | 07235-10628 | ELBOW | 1005- | |
| 12 | 07002-12434 | O-RING | 1005- | |
| 13 | 8242-62-2161 | BRACKET | 1005- | |
| 14 | 01010-81225 | BOLT | 1005- | |
| 15 | 01643-31232 | WASHER | 1005- | |
| 16 | 8229-62-2120 | BLOCK | 1501- | |
| 17 | 07000-13025 | O-RING | 1501- | |
| 18 | 07371-30640 | FLANGE | 1501- | |
| 19 | 07372-21060 | BOLT | 1501- | |
| 20 | 01643-51032 | WASHER | 1501- | |
| 21 | 07000-13025 | O-RING | 1501- | |
| 22 | 07094-31024 | CLAMP | 1238- | |
| 23 | 07095-01035 | CUSHION | 1238- | |
| 24 | 01011-81250 | BOLT | 1238- | |
| 25 | 01643-31232 | WASHER | 1005- | |
| 26 | 113-62-21240 | ELBOW | 1005- | |
| 27 | 07002-13334 | O-RING | 1005- | |
| 28 | 08210-01808 | SPIRAL TUBE | 1501- |
