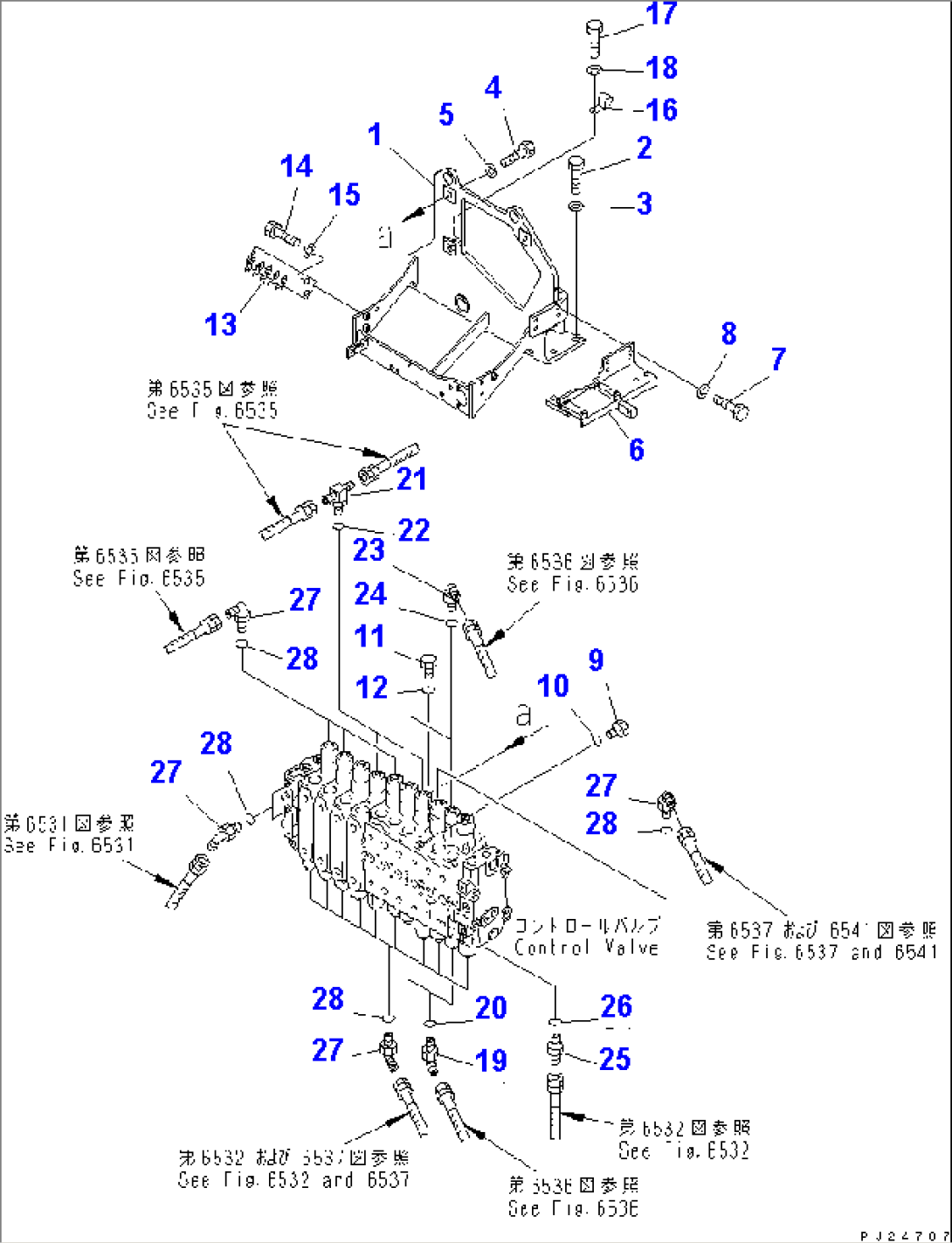

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8242-62-2253 | BRACKET | 1509- | |
| \0\8242-62-2252 | BRACKET | 1040-1508 | ||
| \0\8242-62-2251 | BRACKET | 1035-1039 | ||
| 8242-62-2250 | BRACKET | 1005-1034 | ||
| 2 | 01010-81655 | BOLT | 1005- | |
| 3 | 01643-31645 | WASHER | 1005- | |
| 4 | 01010-81650 | BOLT | 1005- | |
| 5 | 01643-31645 | WASHER | 1005- | |
| 6 | 20Y-62-22321 | BRACKET | 1005- | |
| 7 | 01010-51230 | BOLT | 1005- | |
| 8 | 01643-31232 | WASHER | 1005- | |
| 9 | 07040-11409 | PLUG | 1005- | |
| 10 | 07002-11423 | O-RING | 1005- | |
| 11 | 07040-11812 | PLUG | 1005- | |
| 12 | 07002-11823 | O-RING | 1005- | |
| 13 | 8242-62-2261 | BRACKET | 1384- | |
| 8242-62-2260 | BRACKET | 1005-1383 | ||
| 14 | 01010-81235 | BOLT | 1005- | |
| 15 | 01643-31232 | WASHER | 1005- | |
| 16 | 04434-52712 | CLIP | 1005- | |
| 17 | 01010-81225 | BOLT | 1005- | |
| 18 | 01643-31232 | WASHER | 1005- | |
| 19 | 07235-50210 | ELBOW | 1005- | |
| 20 | 07002-11423 | O-RING | 1005- | |
| 21 | 208-26-11611 | TEE | 1005- | |
| 22 | 07002-11423 | O-RING | 1005- | |
| 23 | 8233-62-3150 | ELBOW | 1005- | |
| 24 | 07002-11423 | O-RING | 1005- | |
| 25 | 07230-20210 | UNION | 1005- | |
| 26 | 07002-11423 | O-RING | 1005- | |
| 27 | 07235-10210 | ELBOW | 1005- | |
| 28 | 07002-11423 | O-RING | 1005- |
