| Item | Part No. | Part Name | Qty | Serial No. |

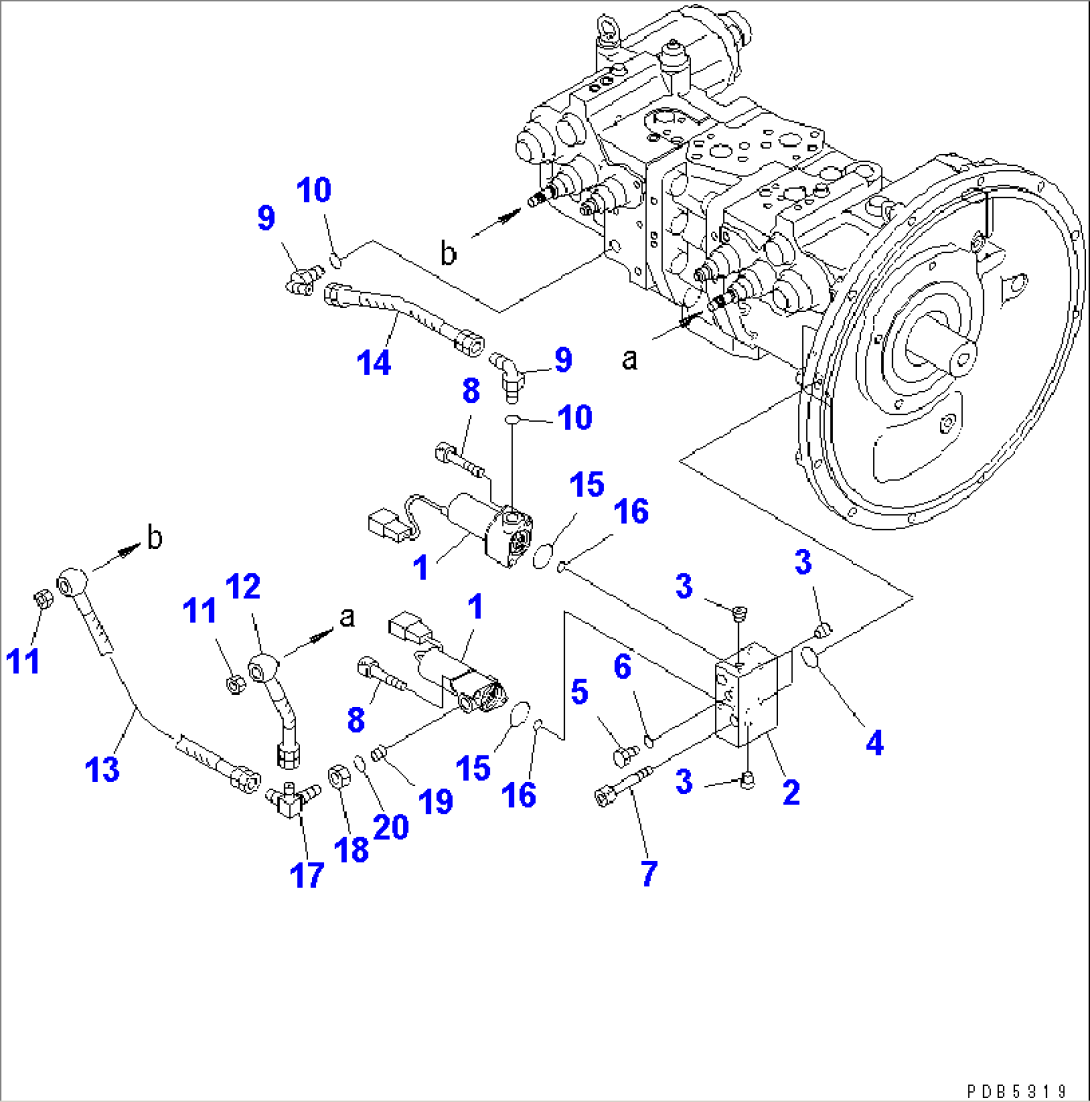

| (708-2L-00421) | PUMP ASS'Y | 1101- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6101 TO 6110. | ||||
| 1 | 702-21-07010 | VALVE ASS'Y,EPC | 1101- | |
| 708-2L-04290 | BLOCK ASS'Y | 1101- | ||
| 2 | 708-2L-28911 | BLOCK | 1101- | |
| 3 | 706-86-51180 | PLUG | 1101- | |
| 4 | 708-2L-23970 | O-RING | 1101- | |
| 5 | 07040-11007 | PLUG | 1101- | |
| 6 | 708-2L-23920 | O-RING | 1101- | |
| 7 | 01252-30865 | BOLT | 1101- | |
| 8 | 203-60-62220 | BOLT | 1101- | |
| 9 | 07235-10210 | ELBOW | 1101- | |
| 10 | 708-2L-23950 | O-RING | 1101- | |
| 11 | 01582-11008 | NUT | 1101- | |
| 12 | 708-2L-29410 | HOSE | 1101- | |
| 13 | 708-2L-29420 | HOSE | 1101- | |
| 14 | 708-2L-29430 | HOSE | 1101- | |
| 15 | 708-2L-23960 | O-RING | 1101- | |
| 16 | 07000-B2011 | O-RING | 1101- | |
| 17 | 708-2L-29450 | ELBOW | 1101- | |
| 18 | 01583-51408 | NUT | 1101- | |
| 19 | 708-2L-29460 | ORIFICE | 1101- | |
| 20 | 708-2L-23950 | O-RING | 1101- |
