| Item | Part No. | Part Name | Qty | Serial No. |
| (708-2H-00027) | PUMP ASS'Y | 1002-1022 | ||
| (708-2H-00026) | PUMP ASS'Y | 1001-1001 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 TO Y1600-11A0. | ||||

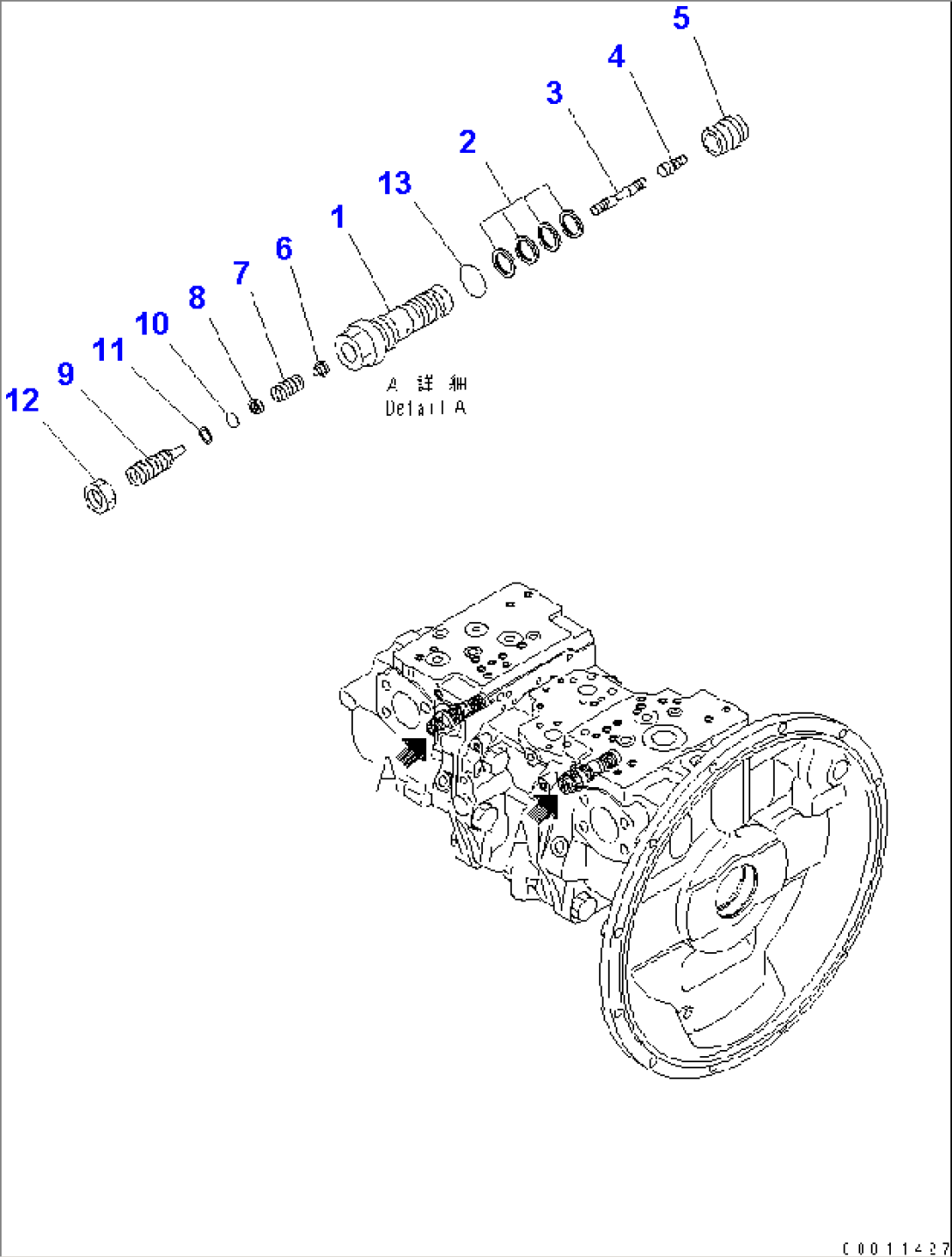

| 708-2H-03610 | VALVE ASS'Y,LS | 1001-1022 | ||
| 1 | (\7\708-2L-35311) | SLEEVE | 1001-1022 | |
| 2 | 708-2L-24680 | SEAL | 1001-1022 | |
| 3 | (\7\708-2G-15412) | SPOOL | 1001-1022 | |
| 4 | (\7\708-2L-28540) | PISTON | 1001-1022 | |
| 5 | (\7\708-2L-35360) | SLEEVE | 1001-1022 | |
| 6 | (\7\708-2L-35331) | SEAT | 1001-1022 | |
| 7 | (\7\708-2L-35410) | SPRING | 1001-1022 | |
| 8 | (\7\708-2L-35341) | SEAT | 1001-1022 | |
| 9 | (\7\708-2L-35351) | PLUG | 1001-1022 | |
| 10 | (\7\07000-B1009) | O-RING | 1001-1022 | |
| 11 | (\7\07001-01009) | RING,BACK-UP | 1001-1022 | |
| 12 | 01583-11408 | NUT | 1001-1022 | |
| 13 | 07002-62434 | O-RING | 1001-1022 |
