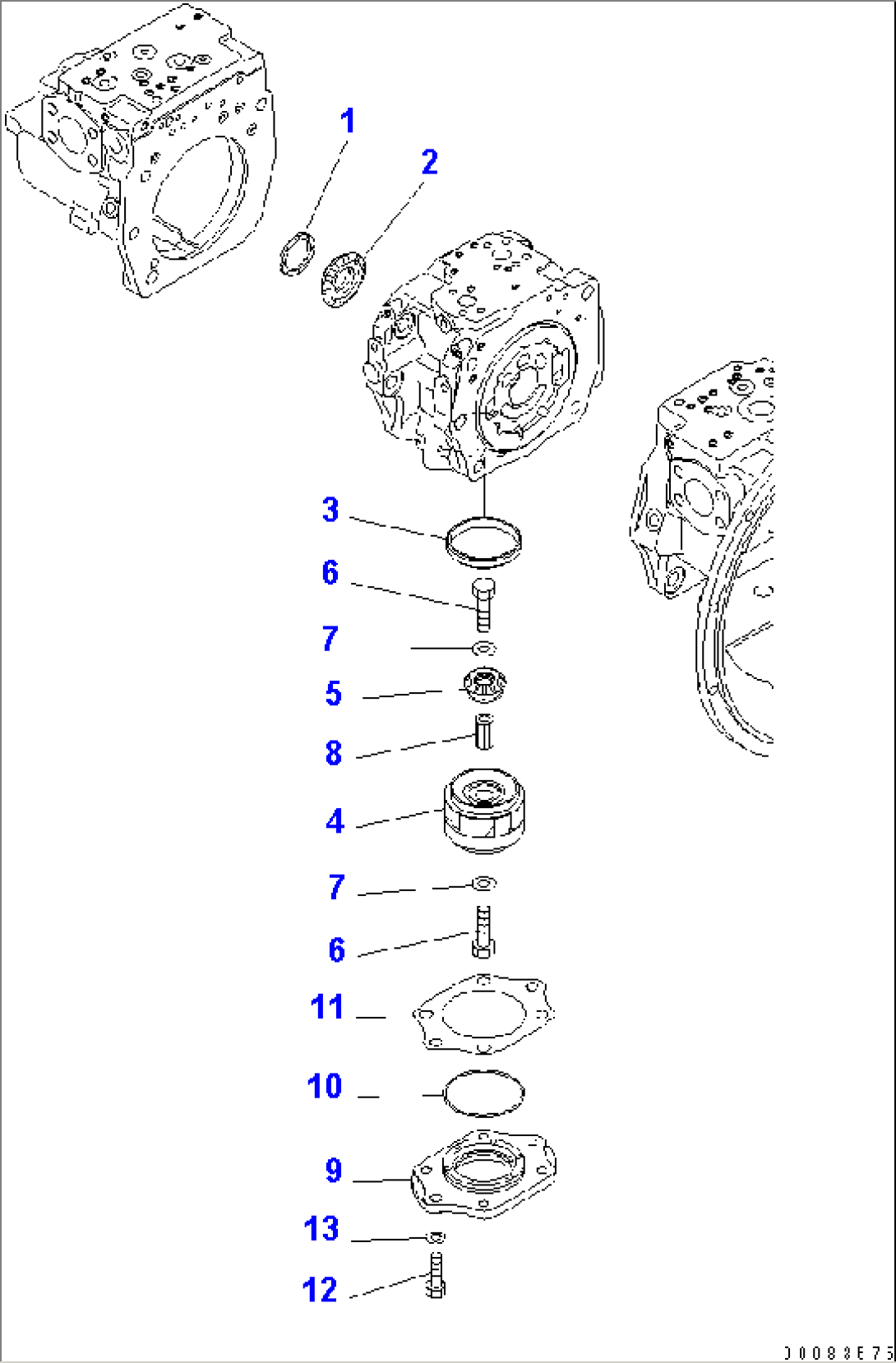

| Item | Part No. | Part Name | Qty | Serial No. |
| (708-2H-00450) | PUMP ASS'Y | 1023- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0A T0 Y1600-12A0A . | ||||
| (708-2H-01450) | PUMP SUB ASS'Y | 1023- | ||
| 1 | (\7\708-2H-21860) | BEARING | 1023- | |
| 2 | (\7\708-2H-32311) | GEAR,BEVEL | 1023- | |
| 3 | (\7\708-2H-32320) | BUSHING | 1023- | |
| 4 | (\7\708-2H-32330) | IMPELLER | 1023- | |
| 5 | (\7\708-2H-32341) | PINION | 1023- | |
| 6 | (\7\01010-61220) | BOLT | 1023- | |
| 7 | (\7\708-2H-32350) | WASHER | 1023- | |
| 8 | (\7\708-2H-32360) | SHAFT | 1023- | |
| 9 | (\7\708-2H-32370) | COVER | 1023- | |
| 10 | (\7\07000-A2105) | O-RING | 1023- | |
| 11 | (\7\708-2H-05120) | SHIM KIT | 1023- | |
| 11 | \6\ | SHIM, 0.1MM | 1023- | |
| 11 | \6\ | SHIM, 0.2MM | 1023- | |
| 11 | \6\ | SHIM, 0.5MM | 1023- | |
| 12 | 01010-81235 | BOLT | 1023- | |
| 13 | 01643-31232 | WASHER | 1023- |
