| Item | Part No. | Part Name | Qty | Serial No. |

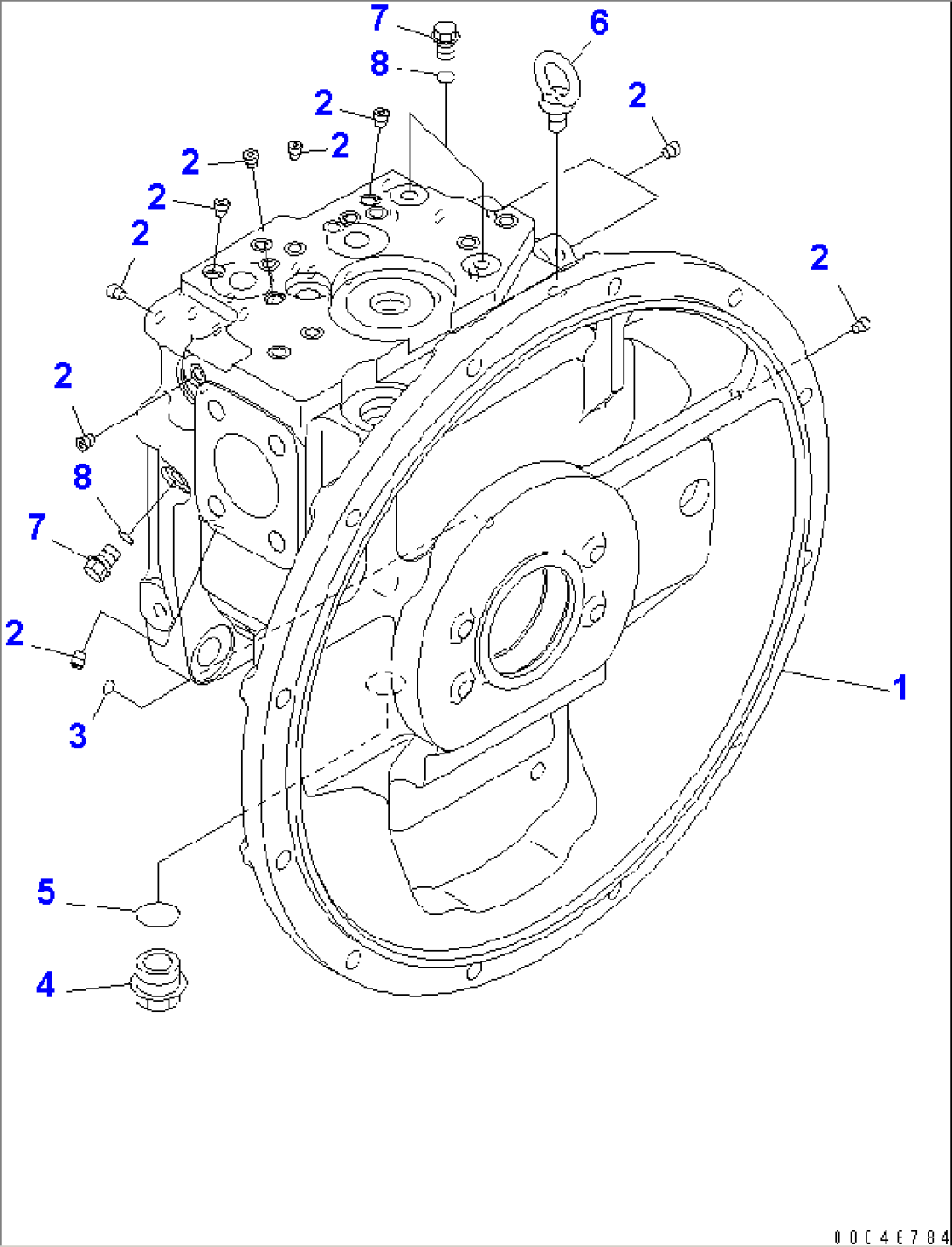

| 708-2L-00600 | PUMP ASS'Y | 30001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-11A0. | ||||
| 708-2L-01600 | PUMP SUB ASS'Y | 30001- | ||
| (\7\708-2L-06440) | CASE ASS'Y,FRONT | 30001- | ||
| 1 | \6\ | CASE,FRONT | 30001- | |
| 2 | \6\ | PLUG | 30001- | |
| 3 | 07000-B1009 | O-RING | 30001- | |
| 4 | 07044-12412 | PLUG | 30001- | |
| 5 | 07002-62434 | O-RING | 30001- | |
| 6 | 04530-11222 | BOLT,EYE | 30001- | |
| 7 | 708-8E-16150 | PLUG | 30001- | |
| 8 | 07002-61023 | O-RING | 30001- |
