| Item | Part No. | Part Name | Qty | Serial No. |
| 708-2H-00450 | PUMP ASS'Y | 1023- | ||

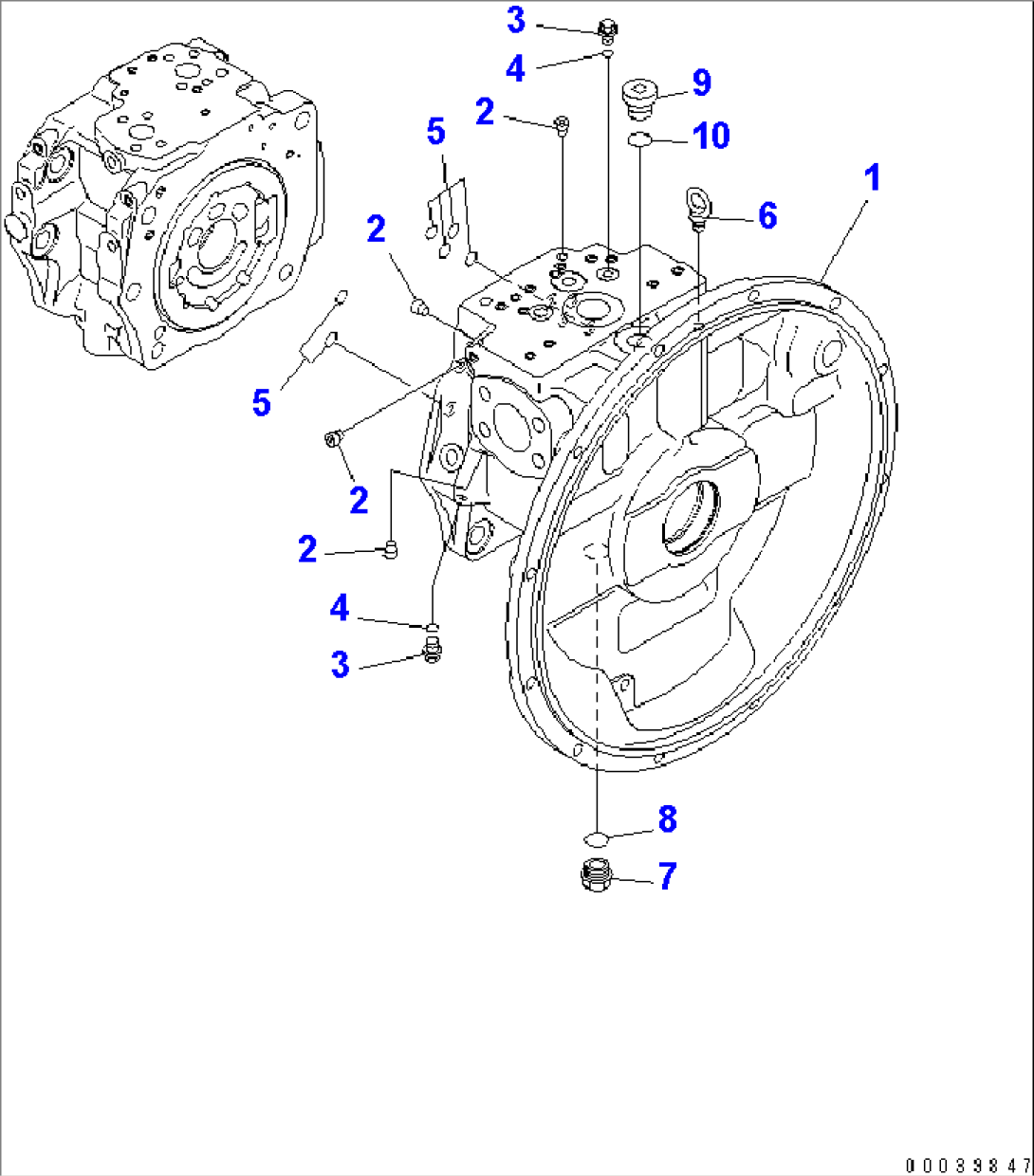

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0A T0 Y1600-12A0A . | ||||
| 708-2H-01450 | PUMP SUB ASS'Y | 1023- | ||
| (\7\708-2H-04670) | CASE ASS'Y,FRONT | 1023- | ||
| 1 | \6\ | CASE,FRONT | 1023- | |
| 2 | \6\ | PLUG | 1023- | |
| 3 | 708-8E-16150 | PLUG | 1023- | |
| 4 | 07002-61023 | O-RING | 1023- | |
| 5 | 07000-B2012 | O-RING | 1023- | |
| 6 | 04530-11222 | BOLT,EYE | 1023- | |
| 7 | 07044-12412 | PLUG | 1023- | |
| 8 | 07002-62434 | O-RING | 1023- | |
| 9 | 07040-12414 | PLUG | 1023- | |
| 10 | 07002-62434 | O-RING | 1023- |
