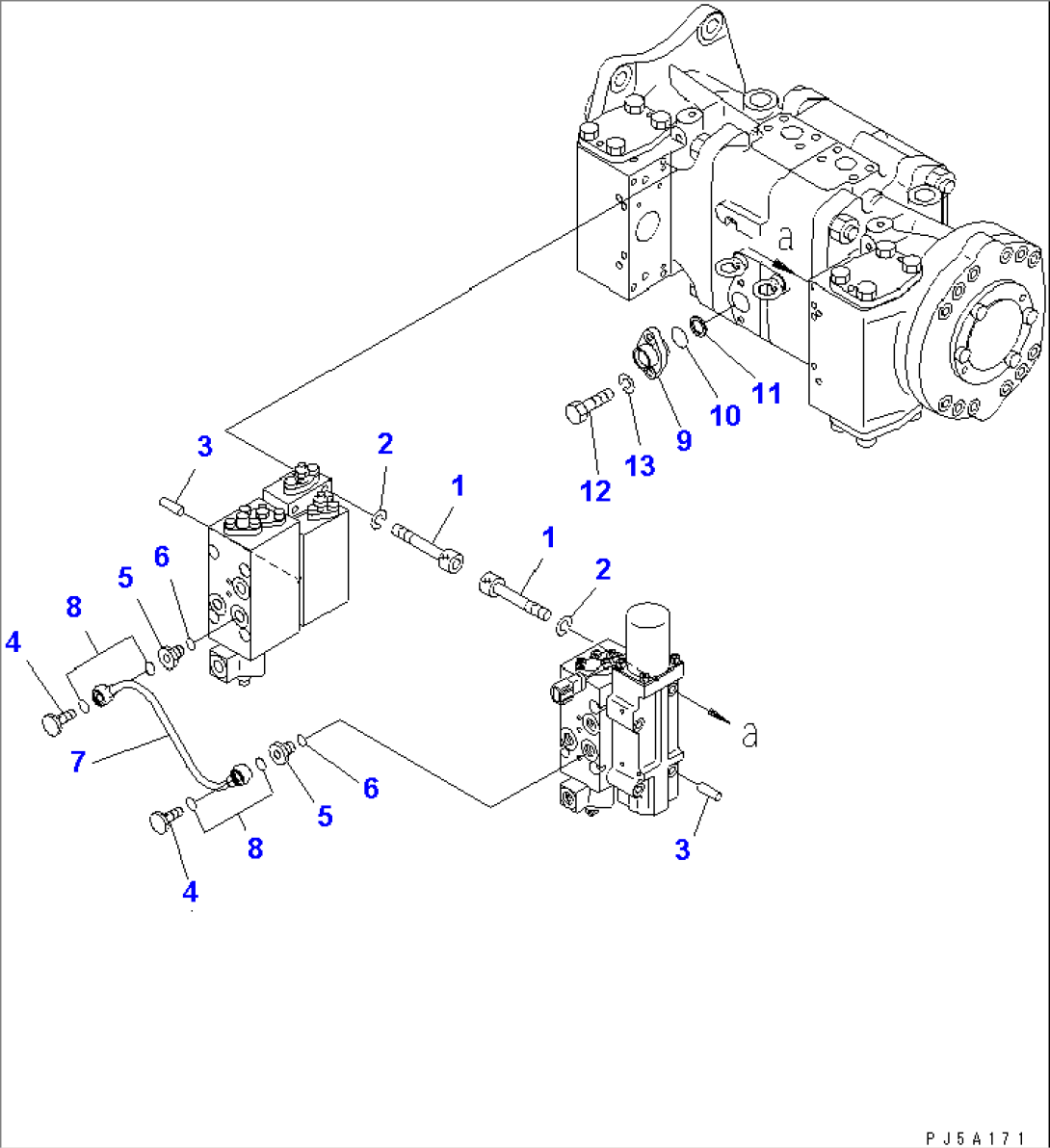

| Item | Part No. | Part Name | Qty | Serial No. |
| (708-2L-00710) | PUMP ASS'Y | 11001- | ||
| (708-2L-00731) | PUMP ASS'Y | 10001-10999 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 TO Y1600-14A0. | ||||
| 1 | 708-25-19130 | BOLT | 10001- | |
| 2 | 01602-20825 | WASHER | 10001- | |
| 3 | 04020-00616 | PIN | 10001- | |
| 4 | 706-46-53180 | BOLT,EYE | 10001- | |
| 5 | 706-46-53260 | PLUG | 10001- | |
| 6 | 07002-01423 | O-RING | 10001- | |
| 7 | 708-25-19140 | TUBE | 10001- | |
| 8 | 07000-02012 | O-RING | 10001- | |
| 9 | 708-25-19120 | FLANGE | 10001- | |
| 10 | 07000-02021 | O-RING | 10001- | |
| 11 | 720-68-15240 | FILTER | 10001- | |
| 12 | 01010-80820 | BOLT | 10001- | |
| 13 | 01602-20825 | WASHER | 10001- |
