| Item | Part No. | Part Name | Qty | Serial No. |
| 708-3S-00451 | PUMP ASS'Y | 9665- | ||
| \0\708-3S-00450 | PUMP ASS'Y | 9328-9664 | ||
| \0\708-3S-00422 | PUMP ASS'Y | 8355-9327 | ||
| \0\708-3S-00421 | PUMP ASS'Y | 8001-8354 | ||

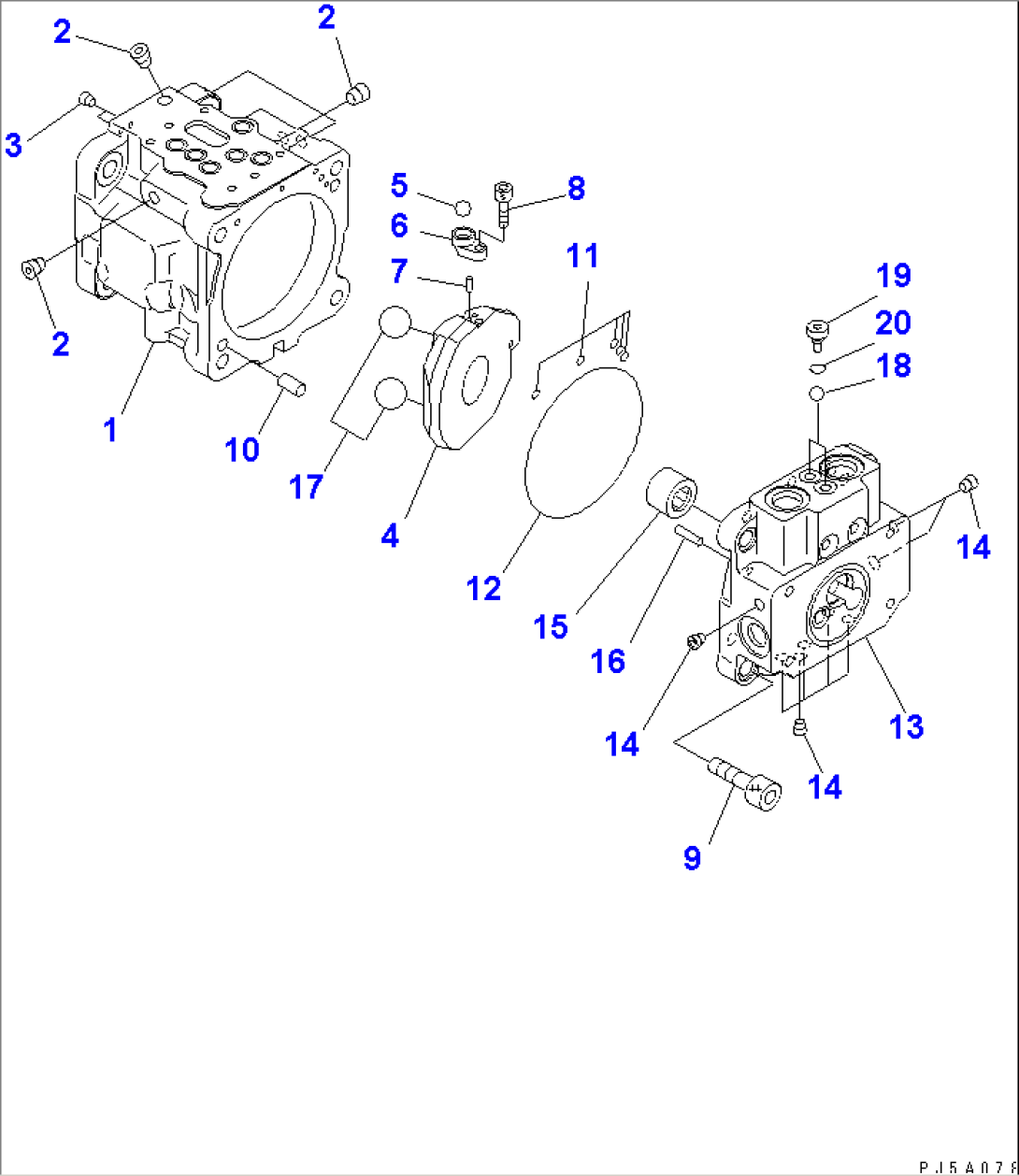

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1600-11A0 TO Y1600-15A0. | ||||
| (\7\708-3S-01423) | PUMP SUB ASS'Y | 9665- | ||
| (\7\708-3S-01422) | PUMP SUB ASS'Y | 8355-9664 | ||
| (\7\708-3S-01421) | PUMP SUB ASS'Y | 8001-8354 | ||
| (\7\708-3S-04171) | CASE SUB ASS'Y | 9665- | ||
| (\7\708-3S-04170) | CASE SUB ASS'Y | 8001-9664 | ||
| 1 | \6\ | CASE,PUMP | 9665- | |
| 1 | \6\ | CASE,PUMP | 8001-9664 | |
| 2 | \6\ | PLUG | 8001- | |
| 3 | \6\ | PLUG | 8001- | |
| 4 | (\7\708-3S-13441) | CAM,ROCKER | 9665- | |
| 4 | (\7\708-3S-13440) | CAM,ROCKER | 8355-9664 | |
| 4 | (\7\708-1S-13411) | CAM,ROCKER | 8001-8354 | |
| 5 | (\7\04260-01270) | BALL | 8001- | |
| 6 | (\7\708-3S-14140) | SPACER | 8001- | |
| 7 | (\7\708-1S-13420) | PIN | 8001- | |
| 8 | (\7\01252-60616) | BOLT | 8001- | |
| 9 | (\7\01252-61235) | BOLT | 8001- | |
| 10 | (\7\04020-01024) | PIN | 8001- | |
| 11 | (\7\07000-11006) | O-RING | 8001- | |
| 12 | (\7\07000-12125) | O-RING | 8001- | |
| (\7\708-3S-04272) | CAP SUB ASS'Y | 8001- | ||
| 13 | \6\ | CAP,END | 8001- | |
| 14 | \6\ | PLUG | 8001- | |
| 15 | (\7\708-21-12760) | BEARING | 8001- | |
| 16 | (\7\720-68-19610) | PIN | 8001- | |
| 17 | (\7\708-3S-13460) | BALL | 9665- | |
| 17 | (\7\708-3S-13450) | BALL | 8355-9664 | |
| 17 | (\7\708-1S-13430) | BALL | 8001-8354 | |
| 18 | (\7\708-7T-16460) | BALL | 8001- | |
| 19 | (\7\708-3S-11530) | PLUG | 8001- | |
| 20 | (\7\07000-11010) | O-RING | 8001- |
