| Item | Part No. | Part Name | Qty | Serial No. |
| 708-1W-00620 | PUMP ASS'Y | 40001- | ||

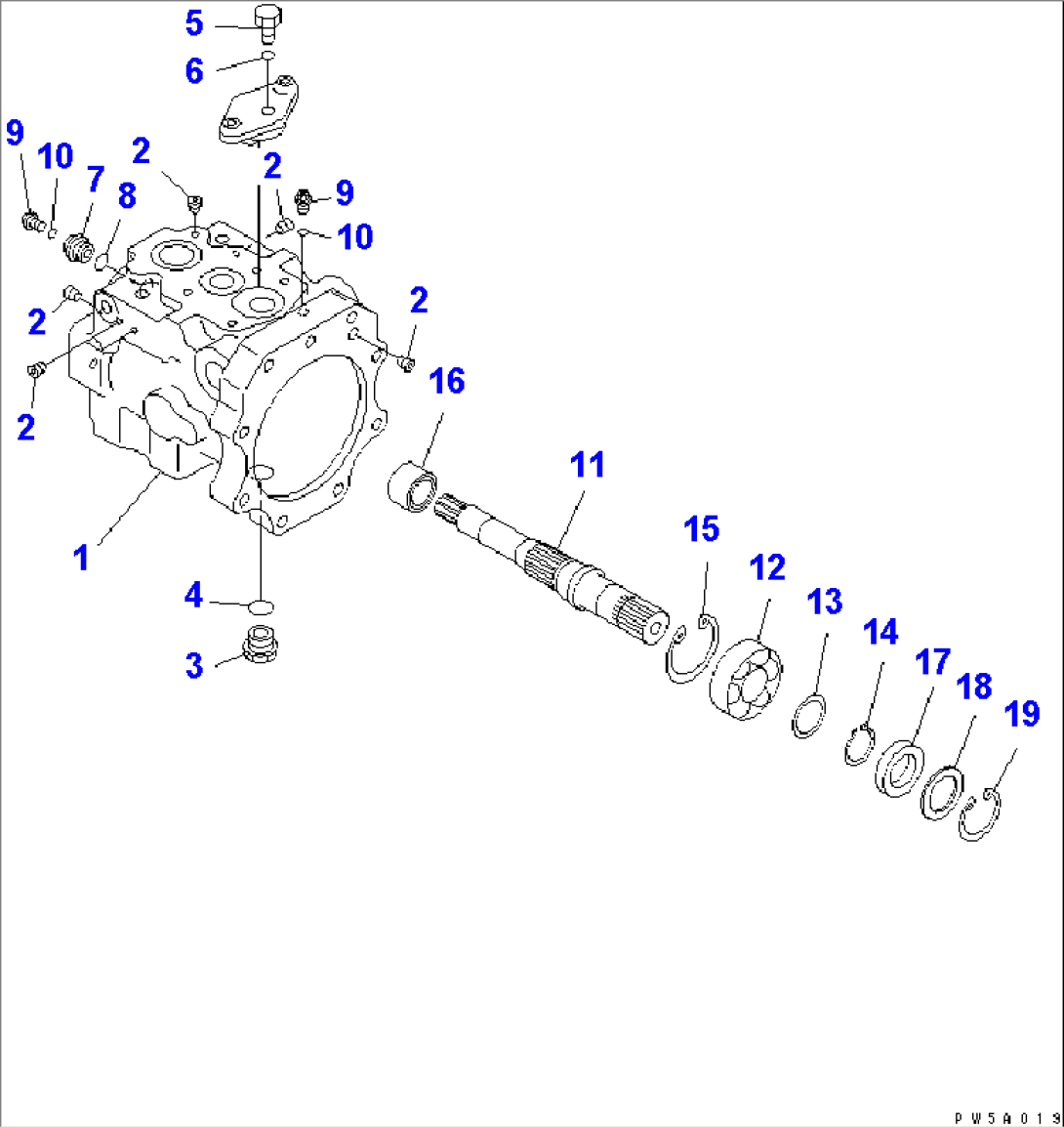

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-06A0. | ||||
| 708-1W-01610 | PUMP SUB ASS'Y | 40001- | ||
| (\7\708-1W-04210) | CASE ASS'Y | 40001- | ||
| 1 | \6\ | CASE,PUMP | 40001- | |
| 2 | \6\ | PLUG | 40001- | |
| 3 | 07044-12412 | PLUG | 40001- | |
| 4 | 07002-62434 | O-RING | 40001- | |
| 5 | 720-68-19870 | PLUG | 40001- | |
| 6 | 07002-61223 | O-RING | 40001- | |
| 7 | 708-1W-21510 | PLUG | 40001- | |
| 8 | 07002-11823 | O-RING | 40001- | |
| 9 | 708-8E-16150 | PLUG | 40001- | |
| 10 | 07002-61023 | O-RING | 40001- | |
| 11 | (\7\708-1W-22310) | SHAFT | 40001- | |
| 12 | (\7\708-1W-22140) | BEARING | 40001- | |
| 13 | (\7\708-23-05011) | WASHER KIT | 40001- | |
| \6\ | WASHER¤ 2.60MM | 40001- | ||
| \6\ | WASHER¤ 2.70MM | 40001- | ||
| \6\ | WASHER¤ 2.80MM | 40001- | ||
| \6\ | WASHER¤ 2.50MM | 40001- | ||
| 14 | (\7\708-23-12840) | RING,SNAP | 40001- | |
| 15 | (\7\04065-07225) | RING | 40001- | |
| 16 | (\7\708-1W-22320) | BEARING | 40001- | |
| 17 | 708-8D-12221 | SEAL,OIL | 40001- | |
| 18 | 708-1W-22160 | SPACER | 40001- | |
| 19 | 04065-05520 | RING | 40001- |
