| Item | Part No. | Part Name | Qty | Serial No. |
| (708-2H-00027) | PUMP ASS'Y | 1002-1022 | ||
| (708-2H-00026) | PUMP ASS'Y | 1001-1001 | ||

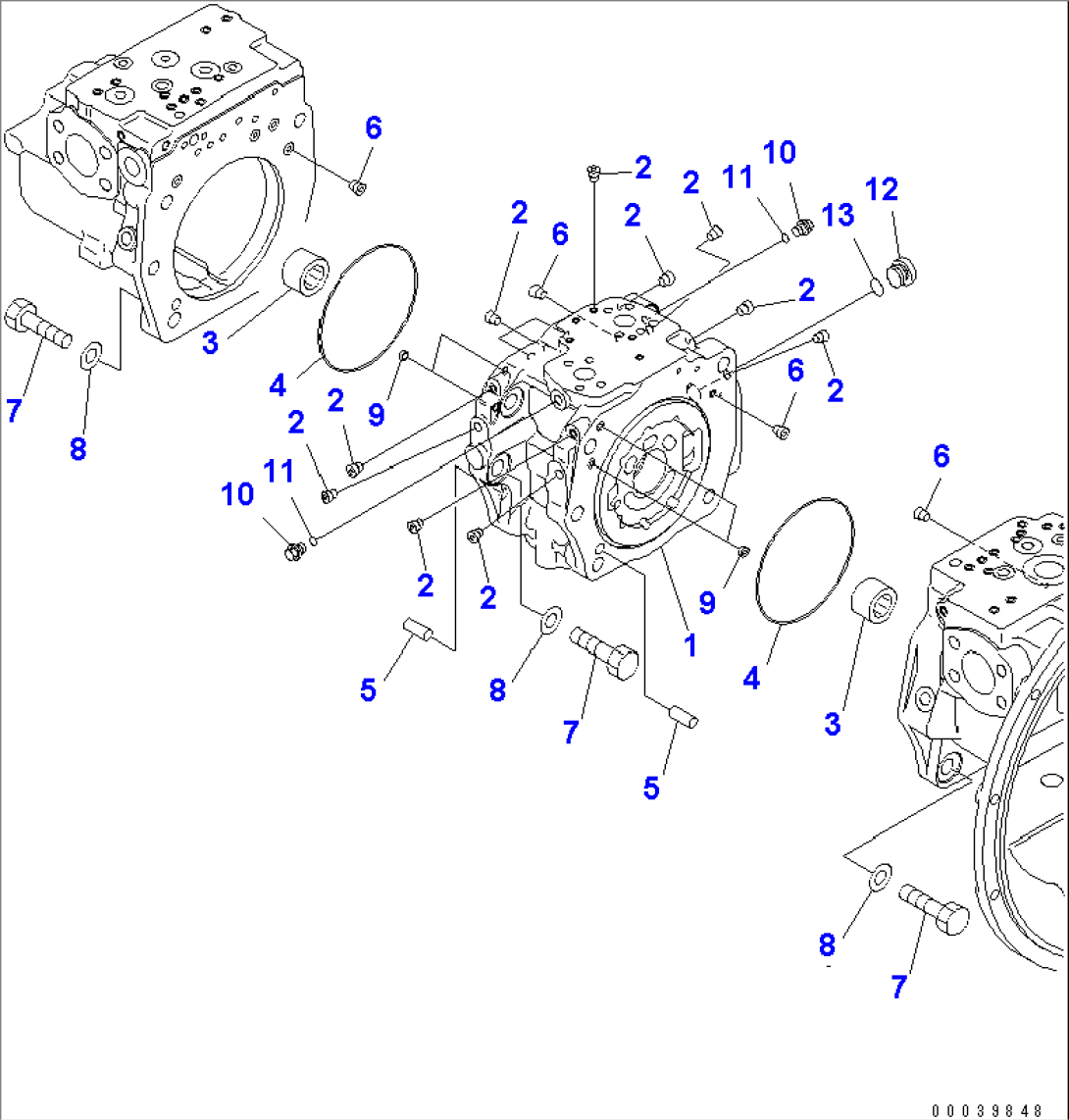

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 TO Y1600-11A0. | ||||
| (708-2H-01027) | PUMP SUB ASS'Y | 1001-1022 | ||
| (\7\708-2H-04480) | CAP ASS'Y,END | 1001-1022 | ||
| 1 | \6\ | CAP,END | 1001-1022 | |
| 2 | \6\ | PLUG | 1001-1022 | |
| 3 | (\7\708-2H-12430) | BEARING | 1001-1022 | |
| 4 | (\7\07000-A5190) | O-RING | 1001-1022 | |
| 5 | (\7\04020-01434) | PIN,DOWEL | 1001-1022 | |
| 6 | (\7\708-1L-29340) | ORIFICE | 1001-1022 | |
| 7 | (\7\01010-61860) | BOLT | 1001-1022 | |
| 8 | (\7\01643-31845) | WASHER | 1001-1022 | |
| 9 | (\7\708-2L-25480) | FILTER | 1001-1022 | |
| 10 | 708-8E-16150 | PLUG | 1001-1022 | |
| 11 | 07002-61023 | O-RING | 1001-1022 | |
| 12 | 07040-12414 | PLUG | 1001-1022 | |
| 13 | 07002-62434 | O-RING | 1001-1022 |
