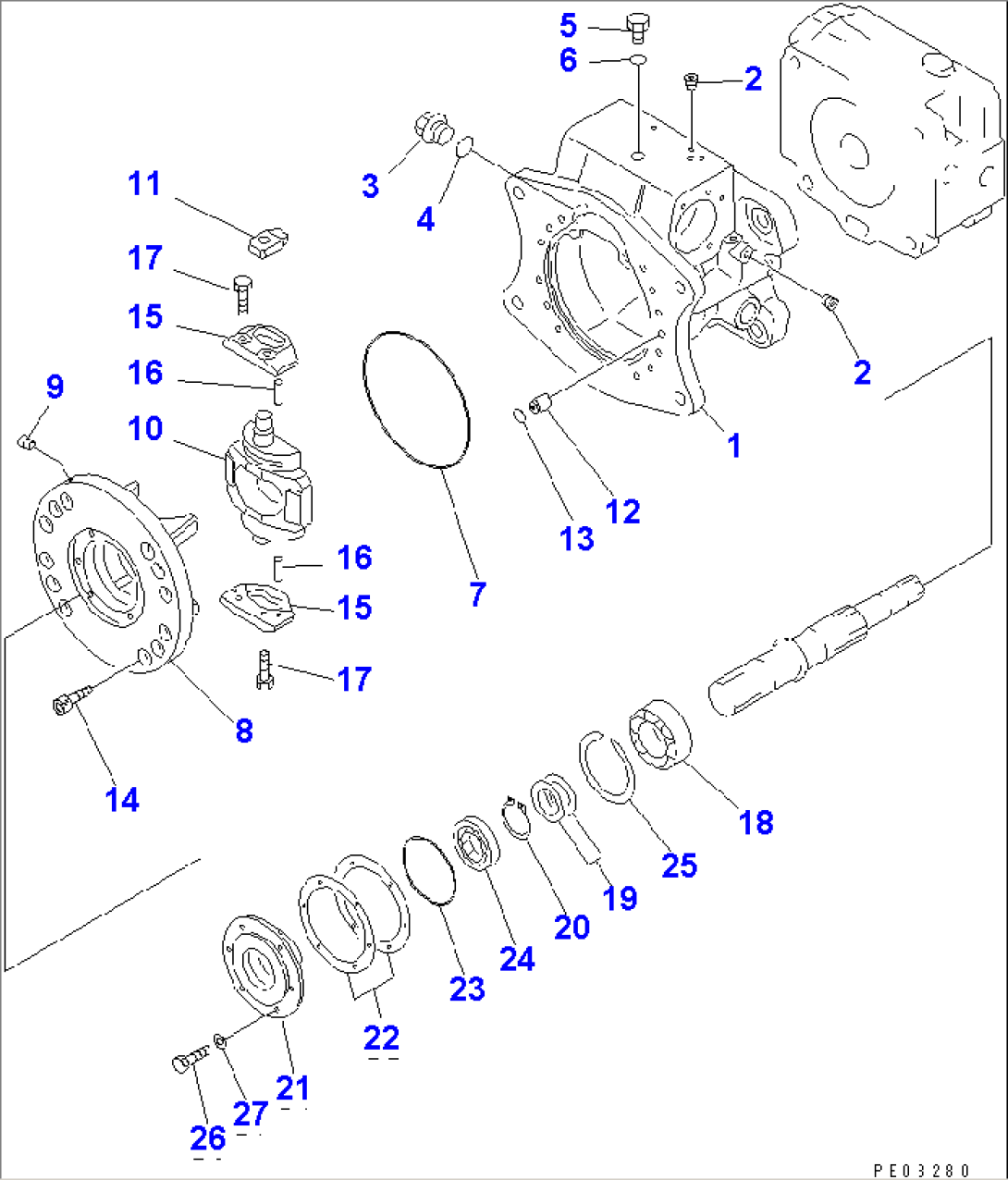

| Item | Part No. | Part Name | Qty | Serial No. |
| (708-25-04032) | PUMP ASS'Y | 6001- | ||
| (708-25-04031) | PUMP ASS'Y | 6001-6056 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 TO Y1600-15A0. | ||||
| 708-25-04132 | PUMP SUB ASS'Y | 6001- | ||
| 708-25-04131 | PUMP SUB ASS'Y | 6001-6056 | ||
| (\7\708-25-00370) | CASE ASS'Y,FRONT | 6001- | ||
| 1 | \6\ | CASE,FRONT | 6001- | |
| 2 | \6\ | PLUG | 6001- | |
| 3 | 07044-12412 | PLUG | 6001- | |
| 4 | 07002-02434 | O-RING | 6001- | |
| 5 | 720-68-19870 | PLUG | 6001- | |
| 6 | 07002-01223 | O-RING | 6001- | |
| 7 | (\7\708-25-12340) | O-RING | 6001- | |
| (\7\708-25-00051) | CRADLE ASS'Y,FRONT | 6001- | ||
| (\7\708-25-00520) | CRADLE SUB ASS'Y,FRONT | 6001- | ||
| 8 | \6\ | CRADLE,FRONT | 6001- | |
| 9 | \6\ | PLUG | 6001- | |
| 10 | (\7\708-25-23411) | CAM,ROCKER | 6001- | |
| 11 | (\7\708-25-14121) | SLIDER | 6001- | |
| 12 | (\7\708-25-12330) | JOINT | 6001- | |
| 13 | (\7\07000-12015) | O-RING | 6001- | |
| 13 | (\7\708-25-13930) | O-RING | 6001-6056 | |
| 14 | (\7\708-25-12350) | BOLT | 6001- | |
| 15 | (\7\708-25-12360) | PLATE | 6001- | |
| 16 | (\7\04020-00820) | PIN | 6001- | |
| 17 | (\7\01010-80816) | BOLT | 6001- | |
| 18 | (\7\708-2L-22150) | BEARING | 6001- | |
| 19 | (\7\708-25-05010) | WASHER KIT | 6001- | |
| 19 | \6\ | WASHER, 2.0MM | 6001- | |
| 19 | \6\ | WASHER, 2.1MM | 6001- | |
| 19 | \6\ | WASHER, 2.2MM | 6001- | |
| 20 | (\7\708-25-12790) | RING,SNAP | 6001- | |
| 21 | (\7\708-25-12812) | HOUSING | 6001- | |
| 22 | (\7\708-25-05130) | SHIM KIT | 6001- | |
| 22 | \6\ | SHIM, 0.1MM | 6001- | |
| 22 | \6\ | SHIM, 0.2MM | 6001- | |
| 23 | 07000-02080 | O-RING | 6001- | |
| 24 | 708-25-52860 | SEAL,OIL | 6001- | |
| 25 | (\7\708-25-12970) | RING | 6001- | |
| 26 | 01010-80820 | BOLT | 6001- | |
| 27 | 01643-30823 | WASHER | 6001- |
