| Item | Part No. | Part Name | Qty | Serial No. |
| (708-2L-00413) | PUMP ASS'Y | 1006- | ||

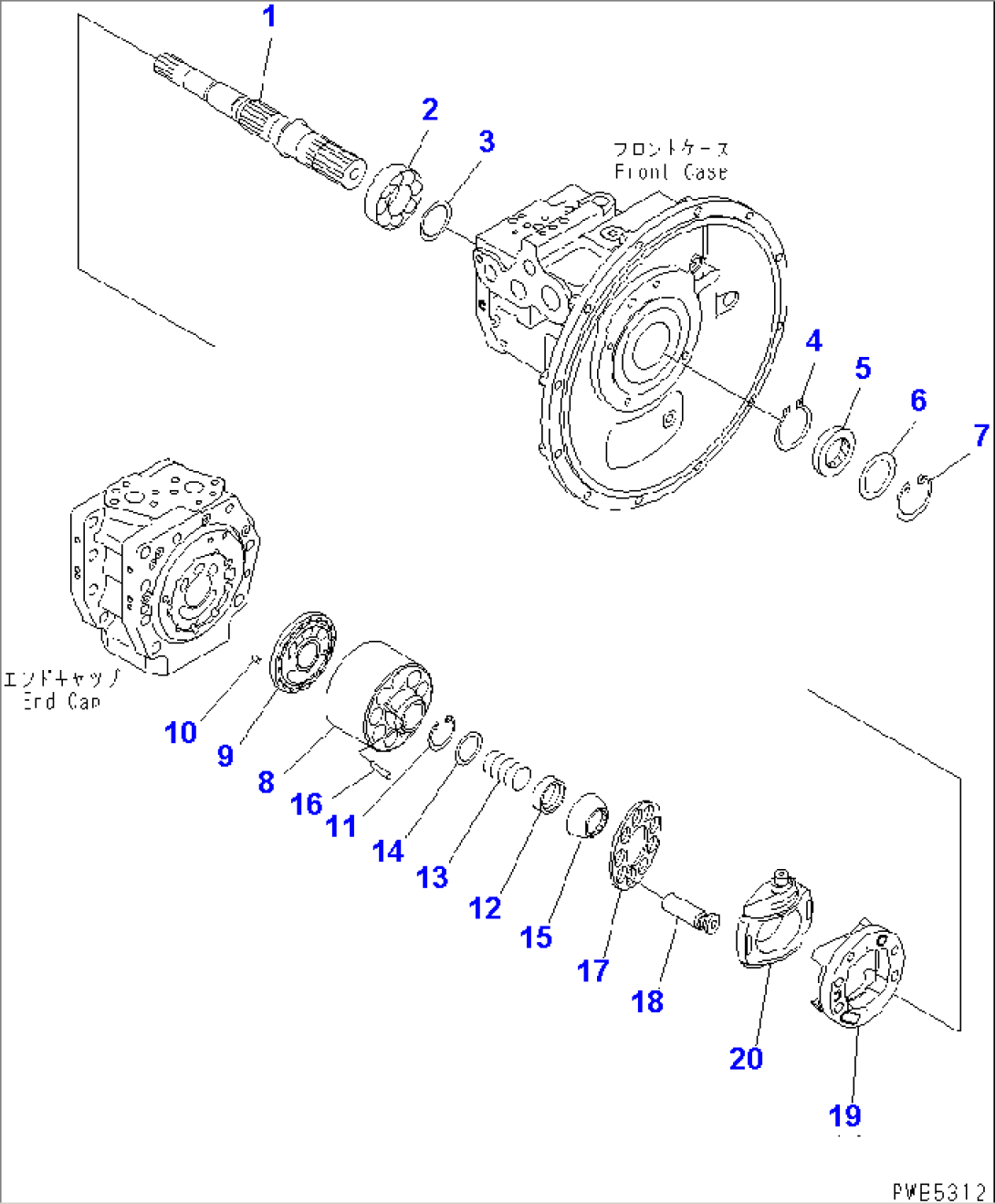

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-09A0. | ||||
| (708-2L-01442) | PUMP SUB ASS'Y | 1006- | ||
| 1 | (\7\708-2L-32110) | SHAFT,FRONT | 1006- | |
| 2 | (\7\708-2L-32150) | BEARING | 1006- | |
| 3 | (\7\708-2E-05040) | WASHER KIT | 1006- | |
| \6\ | WASHER¤ 3.1MM | 1006- | ||
| \6\ | WASHER¤ 3.0MM | 1006- | ||
| \6\ | WASHER¤ 2.9MM | 1006- | ||
| \6\ | WASHER¤ 2.8MM | 1006- | ||
| 4 | (\7\708-25-12790) | RING,SNAP | 1006- | |
| 5 | 708-25-52861 | SEAL,OIL | 1006- | |
| 6 | 708-2L-22160 | SPACER | 1006- | |
| 7 | 04065-06825 | RING,SNAP | 1006- | |
| (\7\708-2L-04141) | BLOCK ASS'Y,FRONT | 1006- | ||
| 8 | \6\ | BLOCK,CYLINDER | 1006- | |
| 9 | \6\ | PLATE,VALVE | 1006- | |
| 10 | (\7\720-68-19610) | PIN | 1006- | |
| 11 | (\7\04065-04818) | RING,SNAP | 1006- | |
| 12 | (\7\708-2L-23131) | SEAT | 1006- | |
| 13 | (\7\708-2L-33160) | SPRING | 1006- | |
| 14 | (\7\708-7L-13140) | SEAT | 1006- | |
| 15 | (\7\708-2L-23351) | GUIDE,RETAINER | 1006- | |
| 16 | (\7\708-2L-23360) | PIN | 1006- | |
| 17 | (\7\708-2L-33340) | RETAINER,SHOE | 1006- | |
| 18 | (\7\708-2L-33310) | PISTON SUB ASS'Y | 1006- | |
| (\7\708-2L-04361) | CRADLE ASS'Y,FRONT | 1006- | ||
| 19 | \6\ | CRADLE | 1006- | |
| 20 | \6\ | CAM,ROCKER | 1006- |
