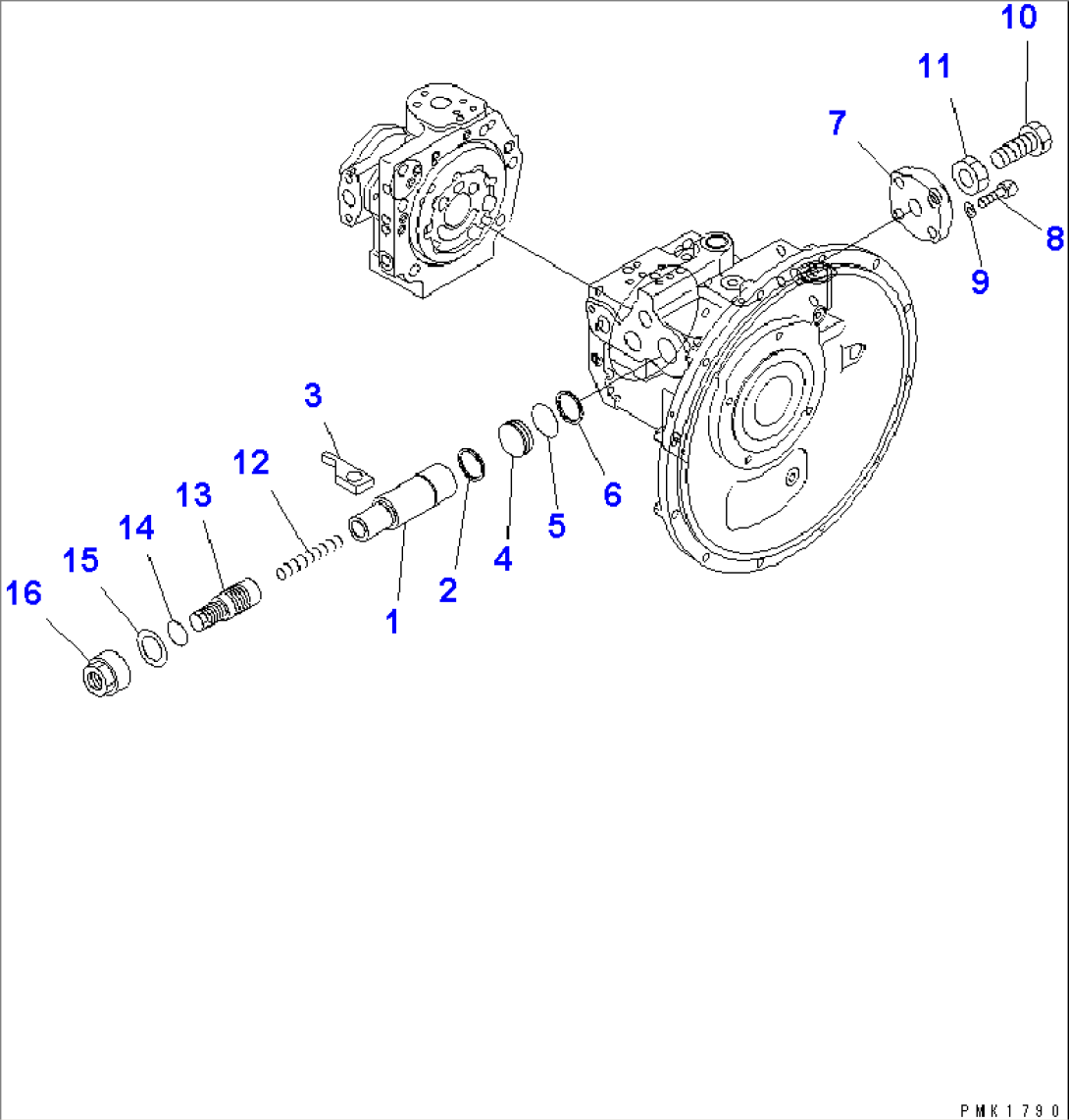

| Item | Part No. | Part Name | Qty | Serial No. |
| (708-1L-00472) | PUMP ASS'Y | 60871- | ||
| (708-1L-00471) | PUMP ASS'Y | 57499-60870 | ||
| (708-1L-00470) | PUMP ASS'Y | 57000-57498 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1600-81A0A TO Y1600-90A0A . | ||||
| (708-1L-01452) | PUMP SUB ASS'Y | 60871- | ||
| (708-1L-01451) | PUMP SUB ASS'Y | 57499-60870 | ||
| (708-1L-01450) | PUMP SUB ASS'Y | 57000-57498 | ||
| 1 | (\7\708-2L-24513) | PISTON,SERVO | 57000- | |
| 2 | (\7\708-2L-24670) | SEAL | 57000- | |
| 3 | (\7\708-2L-24570) | SLIDER | 57000- | |
| 4 | (\7\708-2L-24560) | STOPPER | 57000- | |
| 5 | (\7\07000-B3040) | O-RING | 57000- | |
| 6 | (\7\07001-03040) | RING,BACK-UP | 57000- | |
| 7 | (\7\708-2L-24522) | COVER | 57000- | |
| 8 | (\7\01252-61445) | BOLT | 57000- | |
| 9 | (\7\113-43-31380) | WASHER | 57000- | |
| 10 | (\7\708-2L-24640) | BOLT | 57000- | |
| 11 | (\7\708-2L-24650) | NUT | 57000- | |
| 12 | (\7\708-2L-24630) | SPRING | 57000- | |
| 13 | (\7\708-2L-24531) | SCREW | 57499- | |
| 13 | (\7\708-2L-24530) | SCREW | 57000-57498 | |
| 14 | (\7\708-2L-24620) | O-RING | 57000- | |
| 15 | (\7\708-2L-24661) | WASHER | 57499- | |
| 15 | (\7\708-2L-24660) | WASHER | 57000-57498 | |
| 16 | (\7\708-2L-24590) | NUT | 57000- |
