| Item | Part No. | Part Name | Qty | Serial No. |

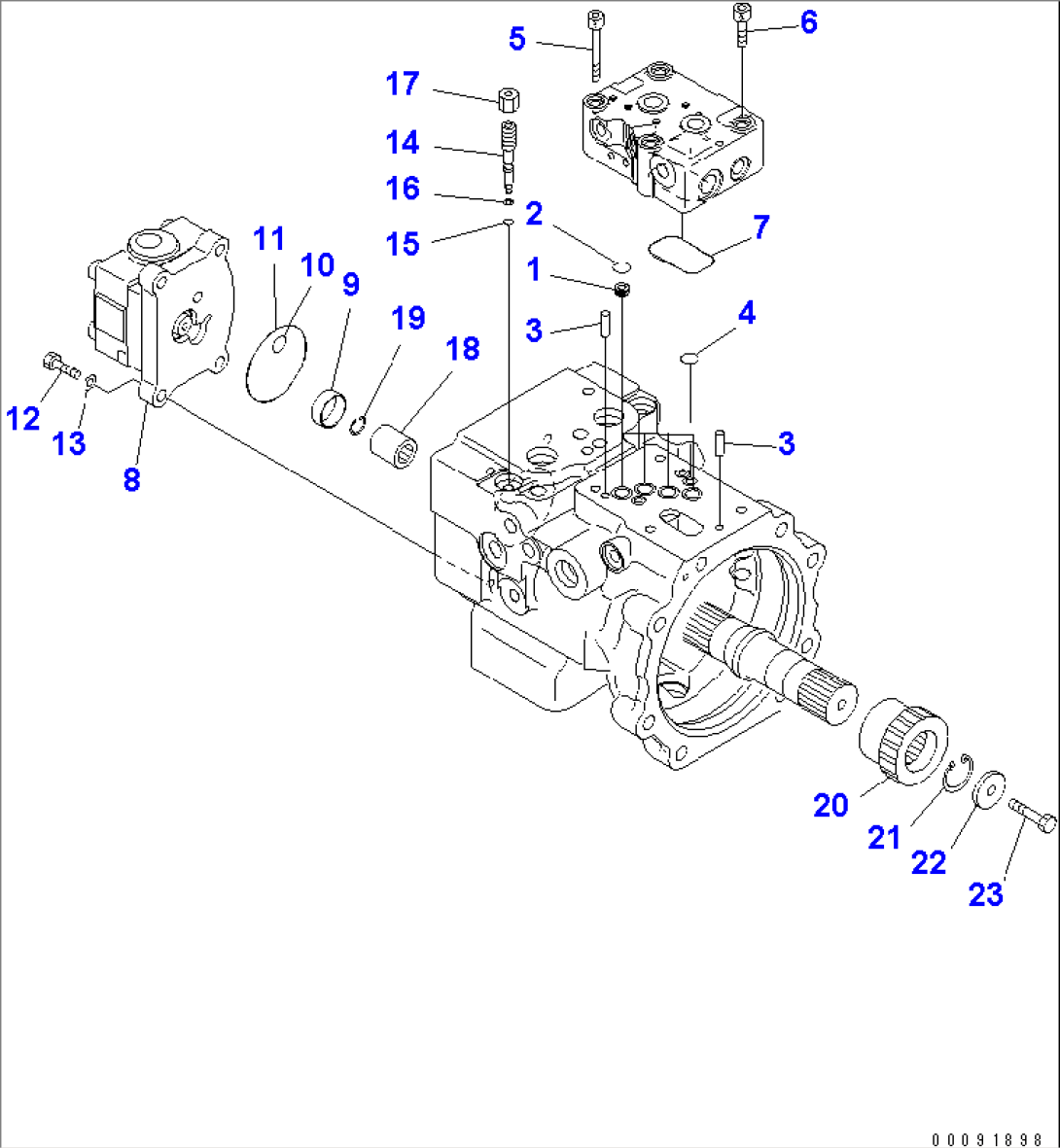

| (708-3T-00161) | PUMP ASS'Y | 10011- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-04A0. | ||||
| 1 | 708-2L-25480 | FILTER | 10011- | |
| 2 | 708-2L-25490 | O-RING | 10011- | |
| 3 | 04020-00616 | PIN,DOWEL | 10011- | |
| 4 | 07000-11008 | O-RING | 10011- | |
| 5 | 01252-60855 | BOLT | 10011- | |
| 6 | 01252-60840 | BOLT | 10011- | |
| 7 | 07000-13042 | O-RING | 10011- | |
| 8 | 708-3T-04520 | PUMP ASS'Y | 10011- | |
| 9 | 708-1T-19230 | RING | 10011- | |
| 10 | 07000-12014 | O-RING | 10011- | |
| 11 | 07000-12060 | O-RING | 10011- | |
| 12 | 01010-80830 | BOLT | 10011- | |
| 13 | 01643-30823 | WASHER | 10011- | |
| 708-3T-04160 | PLUG ASS'Y | 10011- | ||
| 14 | 708-3S-15810 | PLUG | 10011- | |
| 15 | 07000-11003 | O-RING | 10011- | |
| 16 | 07001-01003 | RING,BACK-UP | 10011- | |
| 17 | 708-3S-15820 | NUT | 10011- | |
| 18 | 708-1T-19210 | COUPLING | 10011- | |
| 19 | 700-30-63140 | RING,SNAP | 10011- | |
| 20 | 708-3T-12170 | COUPLING | 10011- | |
| 21 | 04065-03212 | RING,SNAP | 10011- | |
| 22 | 708-3T-12180 | RETAINER | 10011- | |
| 23 | 01010-80825 | BOLT | 10011- |
