| Item | Part No. | Part Name | Qty | Serial No. |
| (708-2L-00065) | PUMP ASS'Y | K30001-K31999 | ||

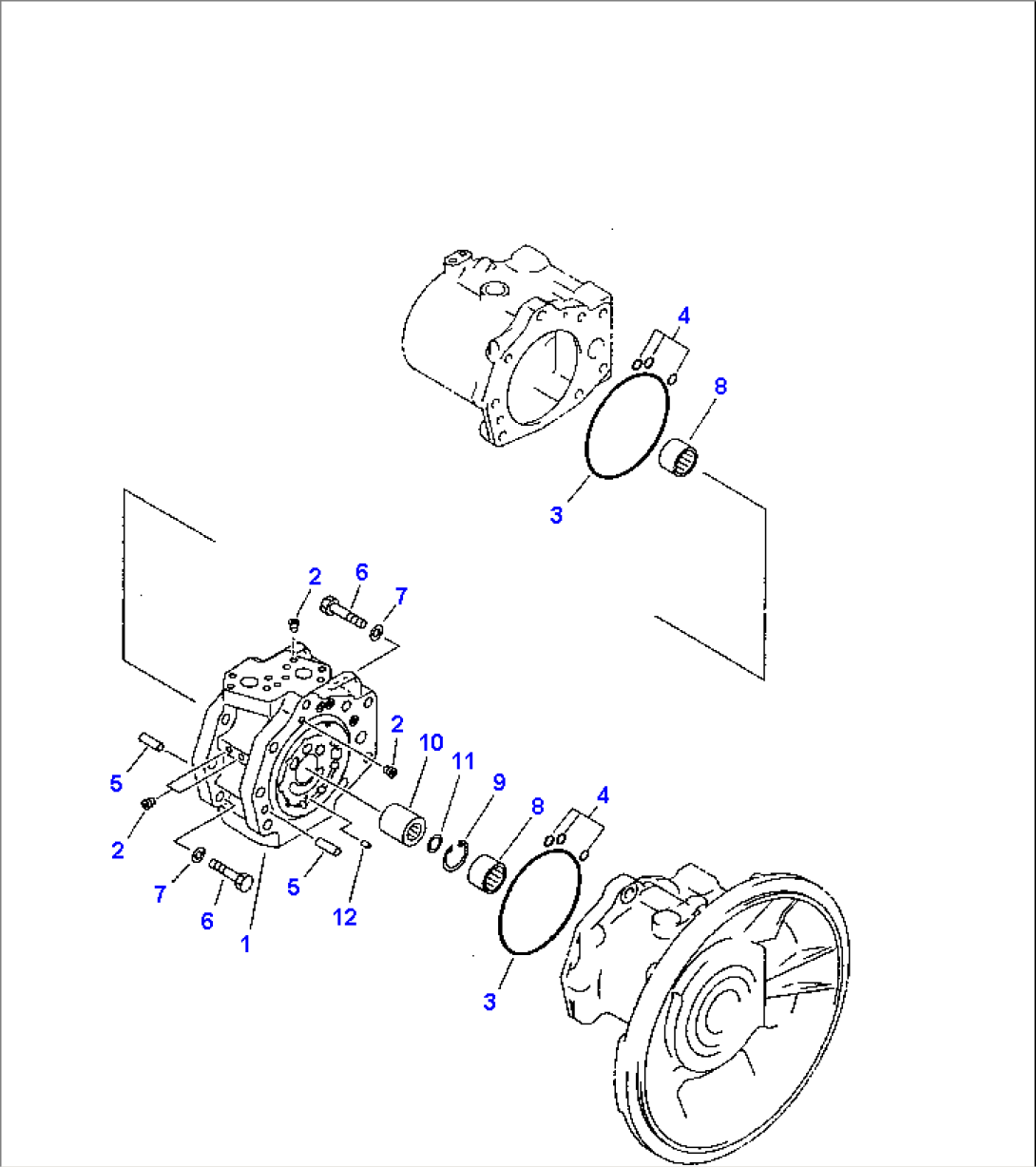

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.H0210-51A0 TO H0210-59A0. | ||||
| (708-2L-01052) | PUMP SUB ASS'Y | K30001-K31999 | ||
| (\7\708-2L-04030) | END CAP ASS'Y | K30001-K31999 | ||
| 1 | \6\ | CAP,END | K30001-K31999 | |
| 2 | \6\ | PLUG | K30001-K31999 | |
| 3 | (\7\07000-05155) | O-RING | K30001-K31999 | |
| 4 | (\7\708-2L-21910) | O-RING | K30001-K31999 | |
| 5 | (\7\04020-01228) | PIN | K30001-K31999 | |
| 6 | (\7\01010-51450) | BOLT | K30001-K31999 | |
| 7 | (\7\01643-31445) | WASHER | K30001-K31999 | |
| 8 | (\7\708-2L-22260) | BEARING | K30001-K31999 | |
| 9 | (\7\708-2L-22271) | RING,SNAP | K30001-@ | |
| 10 | (\7\708-2L-22130) | COUPLING | K30001-@ | |
| 11 | (\7\708-2E-12140) | RING | K30001-@ | |
| 12 | (\7\720-68-19610) | PIN | K30001-K31999 |
