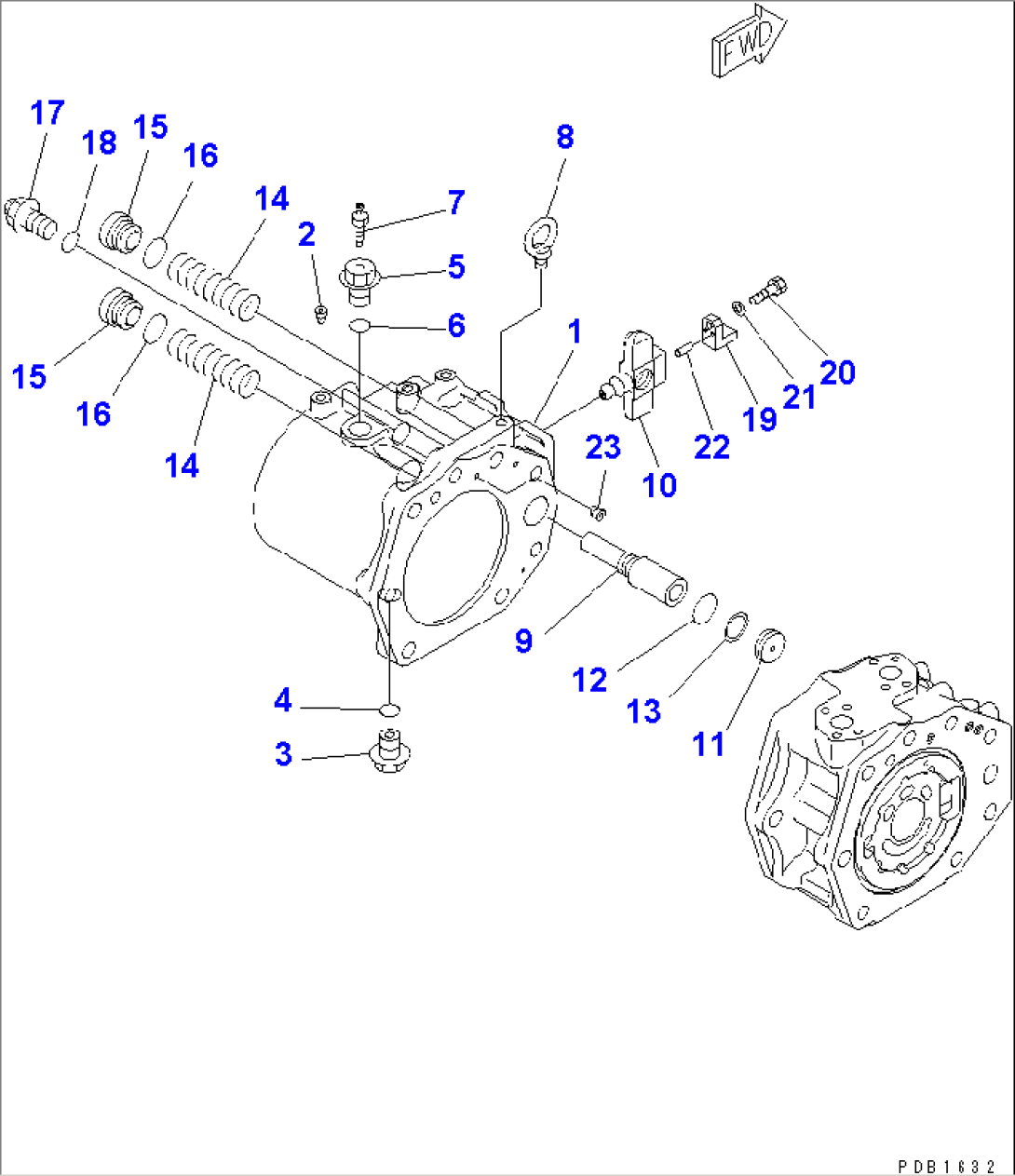

| Item | Part No. | Part Name | Qty | Serial No. |
| (708-2H-00110) | PUMP ASS'Y | 10001-11999 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-09A0. | ||||
| (708-2H-01110) | PUMP SUB ASS'Y | 10001-11999 | ||
| (\7\708-2H-04120) | CASE ASS'Y,REAR | 10001-11999 | ||
| 1 | \6\ | CASE,REAR | 10001-11999 | |
| 2 | \6\ | PLUG | 10001-11999 | |
| 3 | 07044-12412 | PLUG | 10001-11999 | |
| 4 | 708-1W-28910 | O-RING | 10001-11999 | |
| 5 | 706-87-40150 | PLUG | 10001-11999 | |
| 6 | 708-1W-28910 | O-RING | 10001-11999 | |
| 7 | 20B-27-11210 | BLEEDER | 10001-11999 | |
| 8 | 04530-01222 | BOLT | 10001-11999 | |
| 9 | (\7\708-2H-24311) | PISTON | 10001-11999 | |
| 10 | (\7\708-2H-24220) | ROD | 10001-11999 | |
| 11 | (\7\708-2H-24260) | STOPPER | 10001-11999 | |
| 12 | (\7\07000-B3032) | O-RING | 10001-11999 | |
| 13 | (\7\07001-03032) | RING,BACK-UP | 10001-11999 | |
| 14 | 708-2H-24140 | SPRING | 10001-11999 | |
| 15 | 708-2H-24130 | PLUG | 10001-11999 | |
| 16 | 07002-03634 | O-RING | 10001-11999 | |
| 17 | (\7\708-2H-24270) | SCREW | 10001-11999 | |
| 18 | (\7\708-1W-28910) | O-RING | 10001-11999 | |
| 19 | (\7\708-2H-25870) | CAM | 10001-11999 | |
| 20 | (\7\01010-80825) | BOLT | 10001-11999 | |
| 21 | (\7\01643-30823) | WASHER | 10001-11999 | |
| 22 | (\7\04020-00514) | PIN | 10001-11999 | |
| 23 | (\7\708-2L-25650) | ORIFICE | 10001-11999 |
