| Item | Part No. | Part Name | Qty | Serial No. |
| (708-2H-00191) | PUMP ASS'Y | 10021- | ||
| (708-2H-00120) | PUMP ASS'Y | 10001-10020 | ||

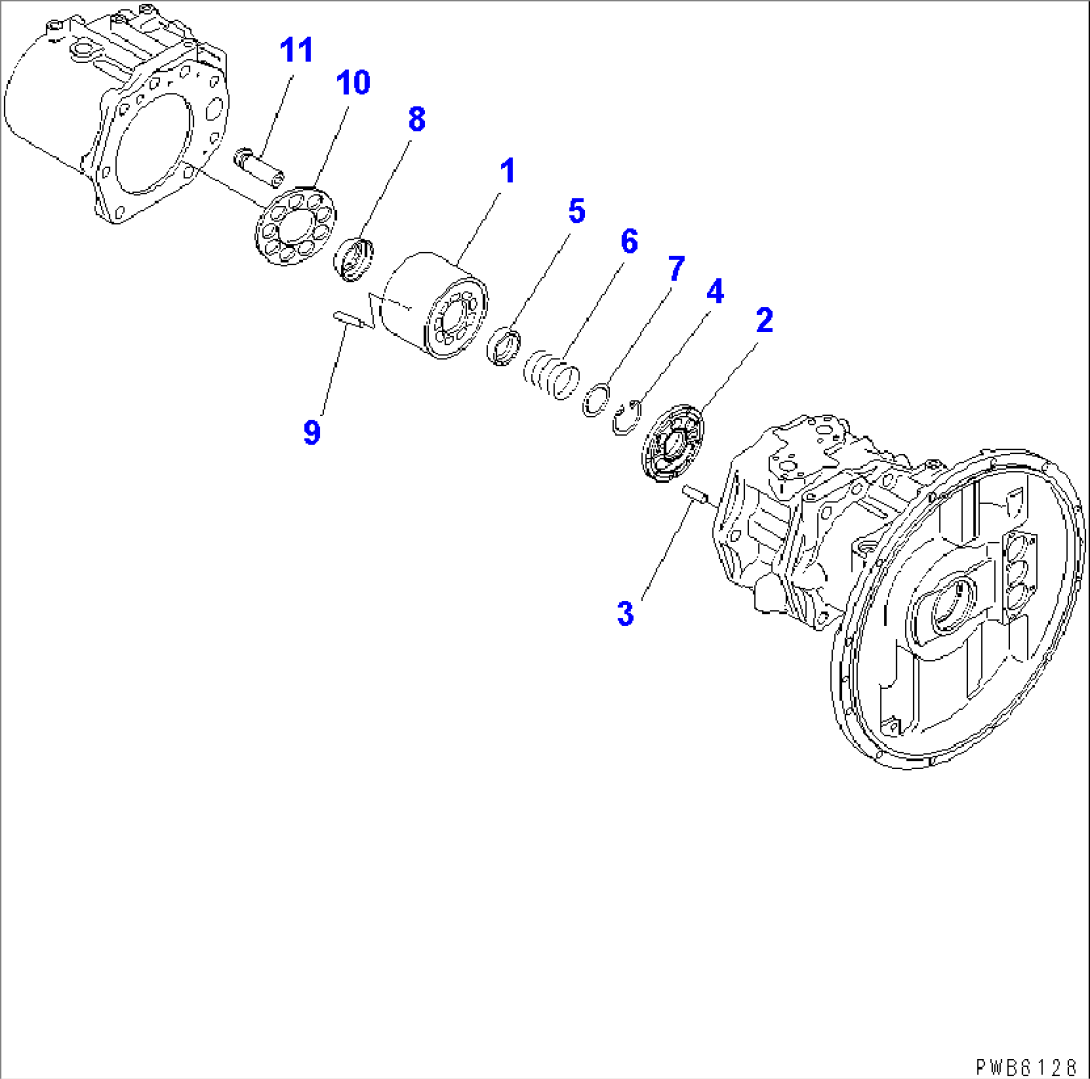

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 TO Y1600-13A0. | ||||
| (708-2H-01121) | PUMP SUB ASS'Y | 10001- | ||
| (\7\708-2H-04150) | BLOCK ASS'Y,REAR | 10001- | ||
| 1 | \6\ | BLOCK,CYLINDER | 10001- | |
| 2 | \6\ | PLATE,VALVE | 10001- | |
| 3 | (\7\708-18-13230) | PIN | 10001- | |
| 4 | (\7\04065-05820) | RING | 10001- | |
| 5 | (\7\708-2H-23130) | SEAT | 10001- | |
| 6 | (\7\708-2H-23151) | SPRING | 10001- | |
| 7 | (\7\708-2H-23141) | SEAT | 10001- | |
| 8 | (\7\708-2H-23350) | GUIDE,RETAINER | 10001- | |
| 9 | (\7\708-2H-23360) | PIN | 10001- | |
| 10 | (\7\708-2H-23340) | RETAINER,SHOE | 10001- | |
| 11 | (\7\708-2H-23311) | PISTON SUB ASS'Y | 10001- |
