| Item | Part No. | Part Name | Qty | Serial No. |
| (708-1L-00551) | PUMP ASS'Y | 1501- | ||

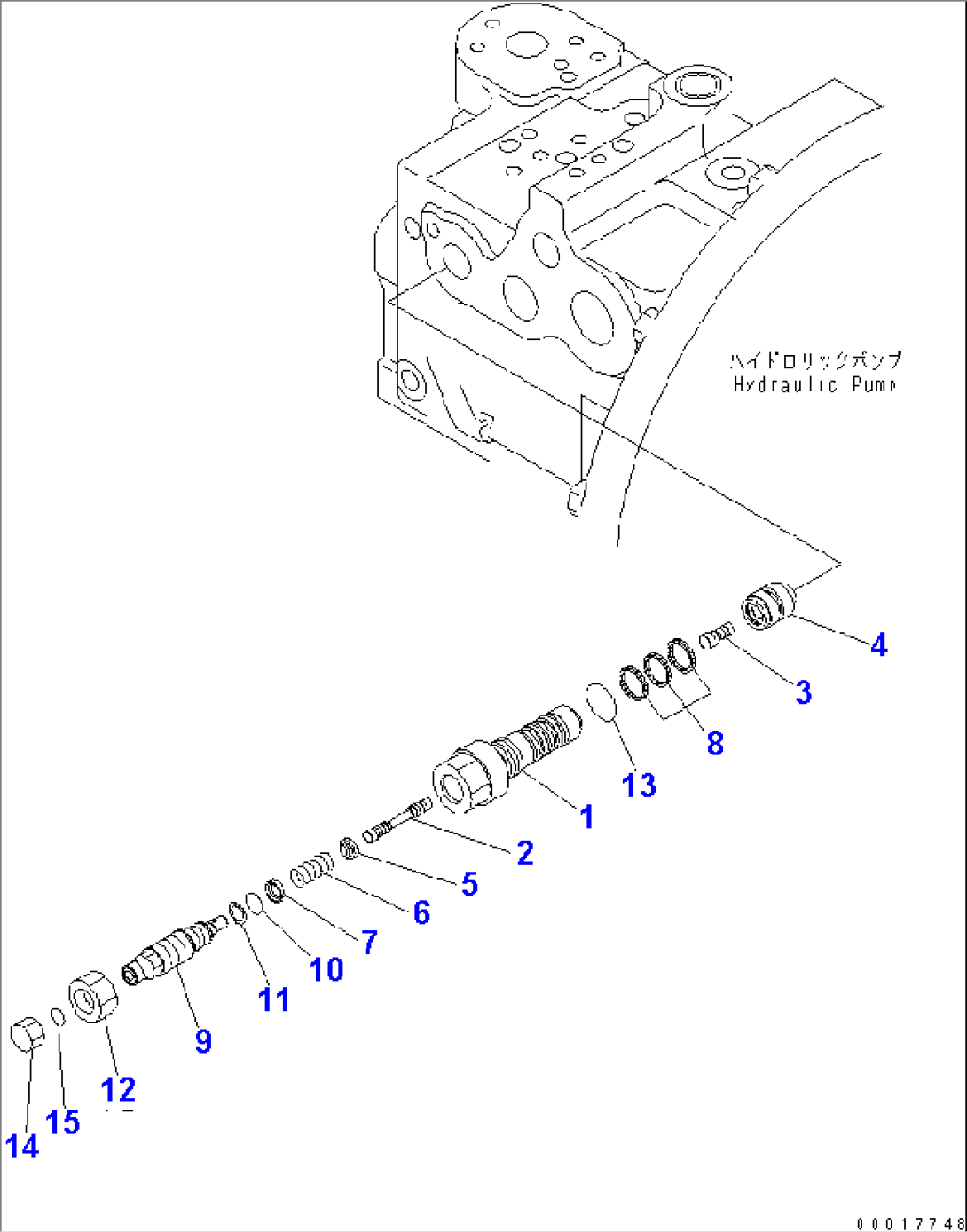

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-08A0. | ||||
| 708-1L-04750 | VALVE ASS'Y,LS | 1501- | ||
| 1 | \6\ | SLEEVE | 1501- | |
| 2 | \6\ | SPOOL | 1501- | |
| 3 | \6\ | PISTON | 1501- | |
| 4 | \6\ | SLEEVE | 1501- | |
| 5 | \6\ | SEAT | 1501- | |
| 6 | \6\ | SPRING | 1501- | |
| 7 | \6\ | SEAT | 1501- | |
| 8 | 708-2L-24680 | SEAL | 1501- | |
| 9 | \6\ | PLUG | 1501- | |
| 10 | \6\ | O-RING | 1501- | |
| 11 | \6\ | RING | 1501- | |
| 12 | \6\ | NUT | 1501- | |
| 13 | 07002-62434 | O-RING | 1501- | |
| 14 | 02789-00210 | PLUG | 1501- | |
| 15 | 02896-61008 | O-RING | 1501- |
