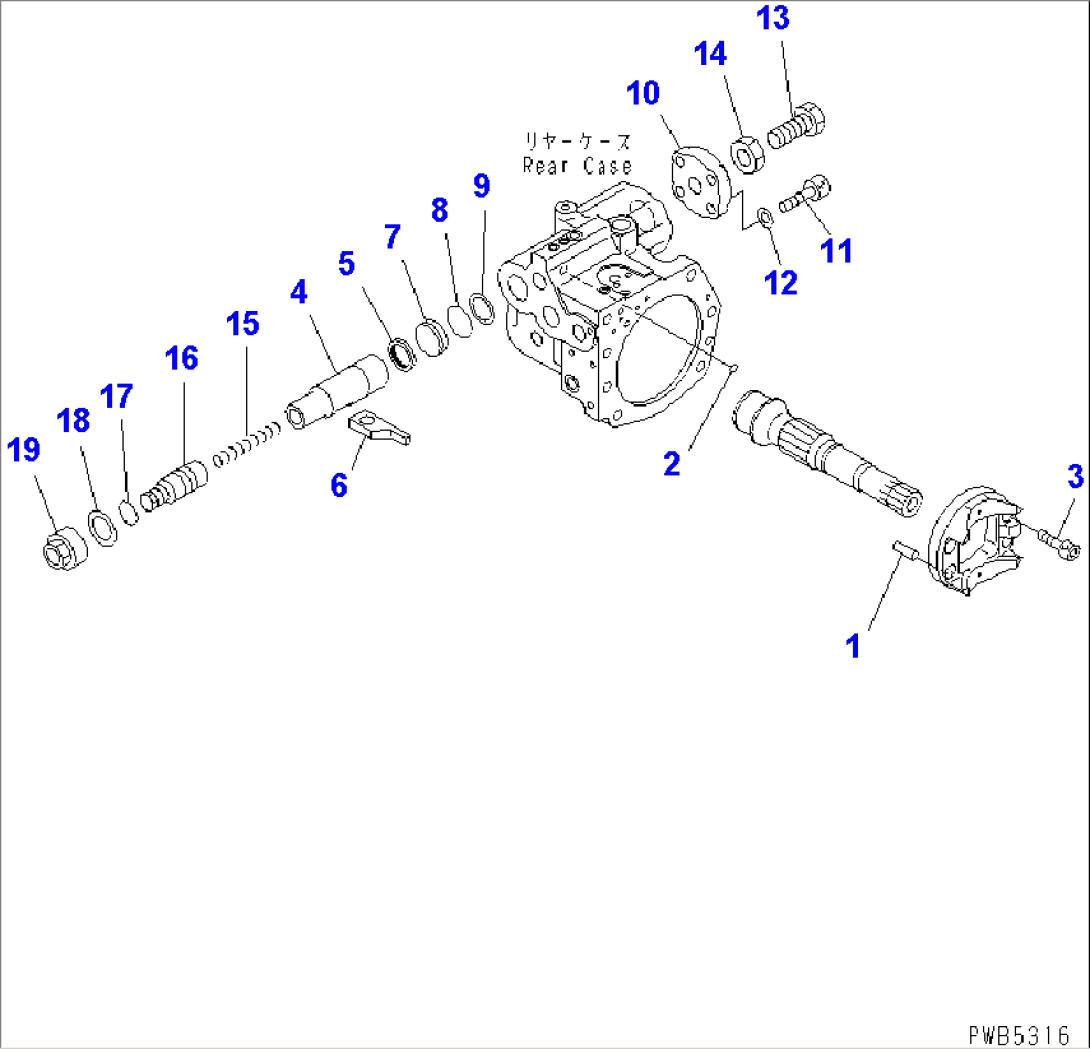

| Item | Part No. | Part Name | Qty | Serial No. |
| (708-2L-00442) | PUMP ASS'Y | 102135- | ||
| (708-2L-00440) | PUMP ASS'Y | 96514-102134 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1600-21A0 TO Y1600-30A0C. | ||||
| (708-2L-01442) | PUMP SUB ASS'Y | 102135- | ||
| (708-2L-01440) | PUMP SUB ASS'Y | 94999-102134 | ||
| 1 | (\7\04020-01228) | PIN | 94999- | |
| 2 | (\7\07000-B1009) | O-RING | 94999- | |
| 3 | (\7\01252-61230) | BOLT | 94999- | |
| 4 | (\7\708-2L-24514) | PISTON,SERVO | 94999- | |
| 5 | (\7\708-2L-24670) | SEAL | 94999- | |
| 6 | (\7\708-2L-24570) | SLIDER | 94999- | |
| 7 | (\7\708-2L-24560) | STOPPER | 94999- | |
| 8 | (\7\07000-B3040) | O-RING | 94999- | |
| 9 | (\7\07001-03040) | RING,BACK-UP | 94999- | |
| 10 | (\7\708-2L-24522) | COVER | 94999- | |
| 11 | (\7\01252-61445) | BOLT | 94999- | |
| 12 | (\7\113-43-31380) | WASHER | 94999- | |
| 13 | (\7\708-2L-24640) | BOLT | 94999- | |
| 14 | (\7\708-2L-24650) | NUT | 94999- | |
| 15 | (\7\708-2L-24630) | SPRING | 94999- | |
| 16 | (\7\708-2L-24531) | SCREW | 102135- | |
| 16 | (\7\708-2L-24530) | SCREW | 94999-102134 | |
| 17 | (\7\708-2L-24620) | O-RING | 94999- | |
| 18 | (\7\708-2L-24661) | WASHER | 102135- | |
| 18 | (\7\708-2L-24660) | WASHER | 94999-102134 | |
| 19 | (\7\708-2L-24590) | NUT | 94999- |
