| Item | Part No. | Part Name | Qty | Serial No. |
| (708-2H-00450) | PUMP ASS'Y | 1023- | ||

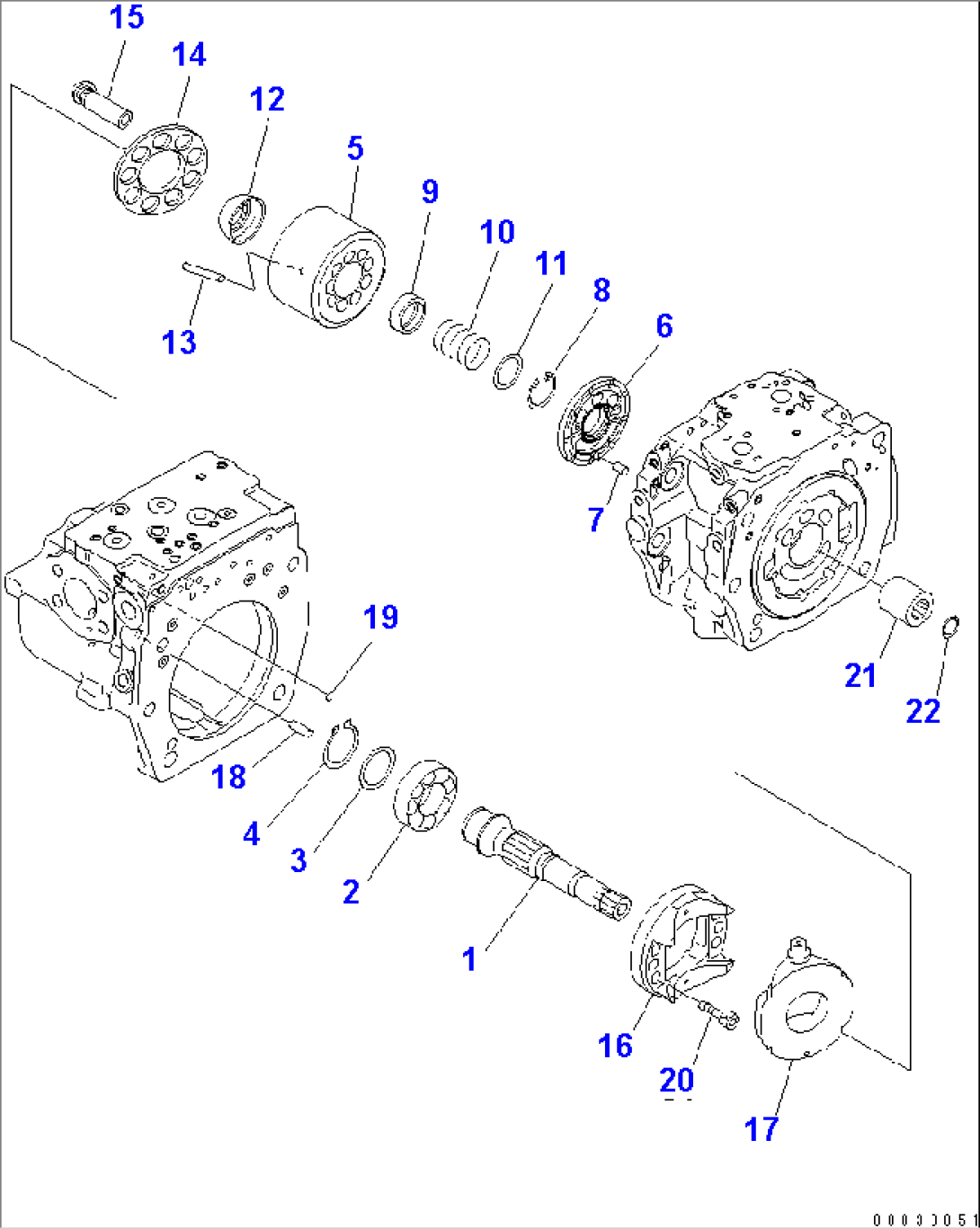

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0A T0 Y1600-12A0A . | ||||
| (708-2H-01450) | PUMP SUB ASS'Y | 1023- | ||
| 1 | (\7\708-2H-32210) | SHAFT | 1023- | |
| 2 | (\7\708-1H-22150) | BEARING | 1023- | |
| 3 | (\7\708-17-05010) | WASHER KIT | 1023- | |
| 3 | \6\ | WASHER, 3.0MM | 1023- | |
| 3 | \6\ | WASHER, 3.1MM | 1023- | |
| 3 | \6\ | WASHER, 3.2MM | 1023- | |
| 4 | (\7\708-17-12780) | RING,SNAP | 1023- | |
| (\7\708-2H-04760) | BLOCK ASS'Y,REAR | 1023- | ||
| 5 | \6\ | BLOCK,CYLINDER | 1023- | |
| 6 | \6\ | PLATE,VALVE | 1023- | |
| 7 | (\7\708-18-13230) | PIN | 1023- | |
| 8 | (\7\04065-05820) | RING | 1023- | |
| 9 | (\7\708-2H-33140) | SEAT | 1023- | |
| 10 | (\7\708-2H-33150) | SPRING | 1023- | |
| 11 | (\7\708-2H-23141) | SEAT | 1023- | |
| 12 | (\7\708-2H-23350) | GUIDE,RETAINER | 1023- | |
| 13 | (\7\708-2H-23360) | PIN | 1023- | |
| 14 | (\7\708-2H-33343) | RETAINER,SHOE | 1023- | |
| 15 | (\7\708-2H-33311) | PISTON SUB ASS'Y | 1023- | |
| (\7\708-2H-04690) | CRADLE SUB ASS'Y | 1023- | ||
| 16 | \6\ | CRADLE | 1023- | |
| 17 | \6\ | CAM,ROCKER | 1023- | |
| 18 | (\7\04020-01434) | PIN,DOWEL | 1023- | |
| 19 | (\7\07000-B1009) | O-RING | 1023- | |
| 20 | (\7\01252-61235) | BOLT | 1023- | |
| 21 | (\7\708-2H-32130) | COUPLING | 1023- | |
| 22 | (\7\708-2H-12420) | RING | 1023- |
