| Item | Part No. | Part Name | Qty | Serial No. |
| (708-2H-00450) | PUMP ASS'Y | 1023- | ||

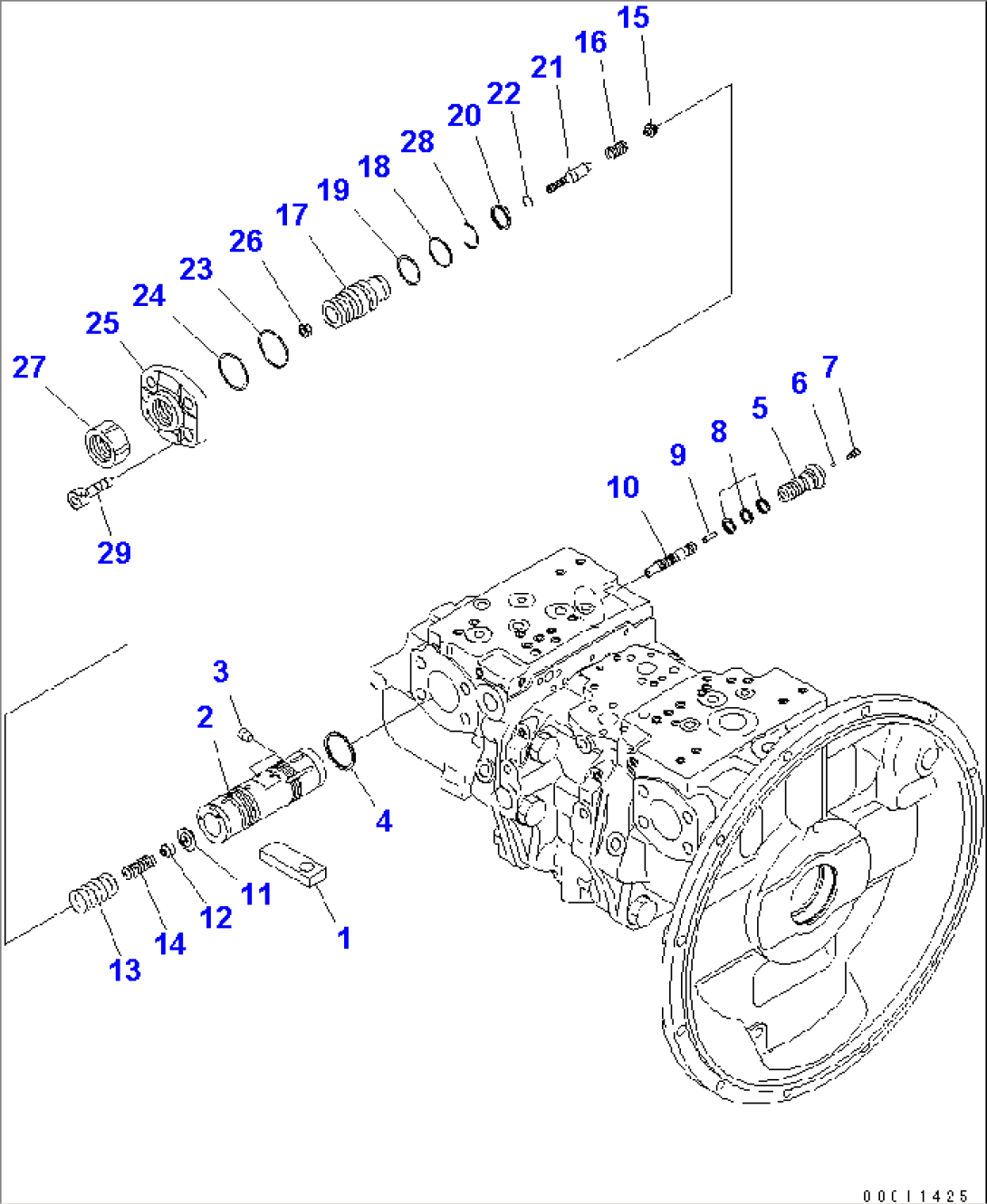

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0A T0 Y1600-12A0A . | ||||
| (708-2H-01450) | PUMP SUB ASS'Y | 1023- | ||
| 1 | (\7\708-2H-34150) | SLIDER | 1023- | |
| (\7\708-2H-03411) | VALVE ASS'Y,PC | 1023- | ||
| (\7\708-2H-03022) | PISTON ASS'Y,SERVO | 1023- | ||
| 2 | \6\ | PISTON,SERVO | 1023- | |
| 3 | \6\ | PLUG | 1023- | |
| 4 | (\7\708-2G-15320) | SEAL | 1023- | |
| 5 | (\7\708-2H-15310) | PLUG | 1023- | |
| 6 | (\7\708-2L-35760) | BALL | 1023- | |
| 7 | (\7\708-2L-35770) | PLUG | 1023- | |
| 8 | (\7\708-2L-35690) | SEAL | 1023- | |
| 9 | (\7\708-2L-35170) | PIN | 1023- | |
| 10 | (\7\708-3M-15670) | SPOOL | 1023- | |
| 11 | (\7\708-2G-15290) | RETAINER | 1023- | |
| 12 | (\7\708-2G-15140) | SEAT | 1023- | |
| 13 | (\7\708-2H-15330) | SPRING | 1023- | |
| 14 | (\7\708-2H-15320) | SPRING | 1023- | |
| 15 | (\7\708-2G-15151) | SEAT | 1023- | |
| 16 | (\7\708-2H-15340) | SPRING | 1023- | |
| 17 | (\7\708-2G-14340) | SCREW | 1023- | |
| 18 | (\7\07000-B3038) | O-RING | 1023- | |
| 19 | (\7\708-2G-15230) | RING,BACK-UP | 1023- | |
| 20 | (\7\708-2G-15260) | SEAL | 1023- | |
| 21 | (\7\708-2G-15240) | PLUG | 1023- | |
| 22 | (\7\07000-B2012) | O-RING | 1023- | |
| 23 | (\7\07000-B2050) | O-RING | 1023- | |
| 24 | (\7\708-2G-15310) | RING | 1023- | |
| 25 | (\7\708-2L-44161) | COVER | 1023- | |
| 26 | (\7\01580-10806) | NUT | 1023- | |
| 27 | (\7\708-2L-35540) | NUT | 1023- | |
| 28 | (\7\708-2G-15330) | RING,WIRE | 1023- | |
| 29 | (\7\01252-61645) | BOLT | 1023- |
