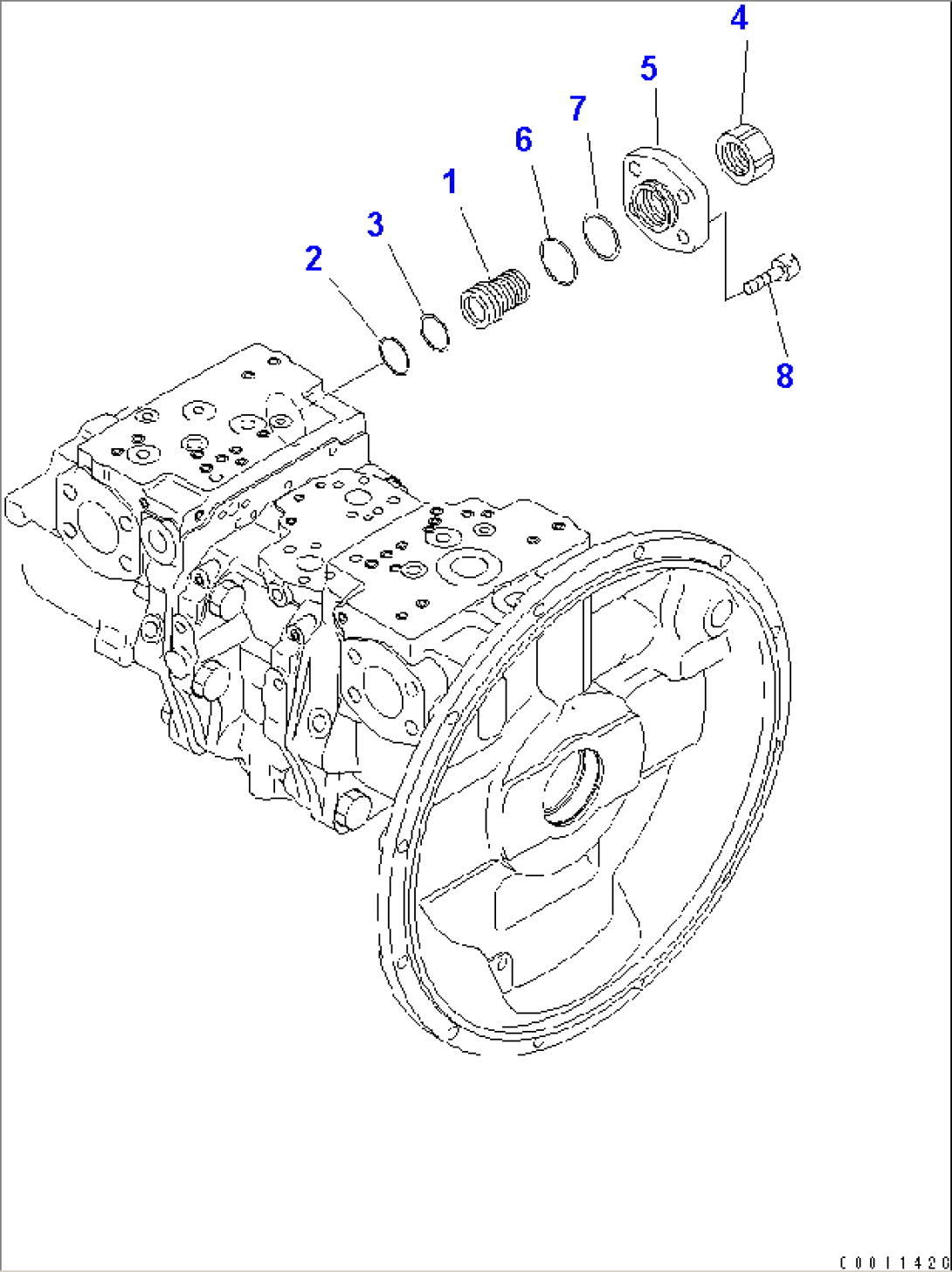

| Item | Part No. | Part Name | Qty | Serial No. |
| (708-2H-00450) | PUMP ASS'Y | 1023- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0A T0 Y1600-12A0A . | ||||
| (708-2H-01450) | PUMP SUB ASS'Y | 1023- | ||
| (\7\708-2H-03510) | COVER ASS'Y | 1023- | ||
| 1 | (\7\708-2G-14310) | SCREW | 1023- | |
| 2 | (\7\07000-B3038) | O-RING | 1023- | |
| 3 | (\7\708-2G-15230) | RING,BACK-UP | 1023- | |
| 4 | (\7\708-2L-35540) | NUT | 1023- | |
| 5 | (\7\708-2L-44130) | COVER | 1023- | |
| 6 | (\7\07000-B2050) | O-RING | 1023- | |
| 7 | (\7\708-2G-15310) | RING | 1023- | |
| 8 | (\7\01252-61645) | BOLT | 1023- |
